Removing the SRX5400 Services Gateway Routing Engine
CAUTION: Before you replace the Routing Engine, you must take the host subsystem
offline.
To remove the Routing Engine (see Figure 108 on page 252):
1. Take the host subsystem offline as described in “Taking the SRX5400 Services Gateway Host Subsystem
Offline” on page 247.
2. Place an electrostatic bag or antistatic mat on a flat, stable surface.
3. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
4. Flip the ejector handles outward to unseat the Routing Engine.
5. Grasp the Routing Engine by the ejector handles and slide it about halfway out of the chassis.
6. Place one hand underneath the Routing Engine to support it and slide it completely out of the chassis.

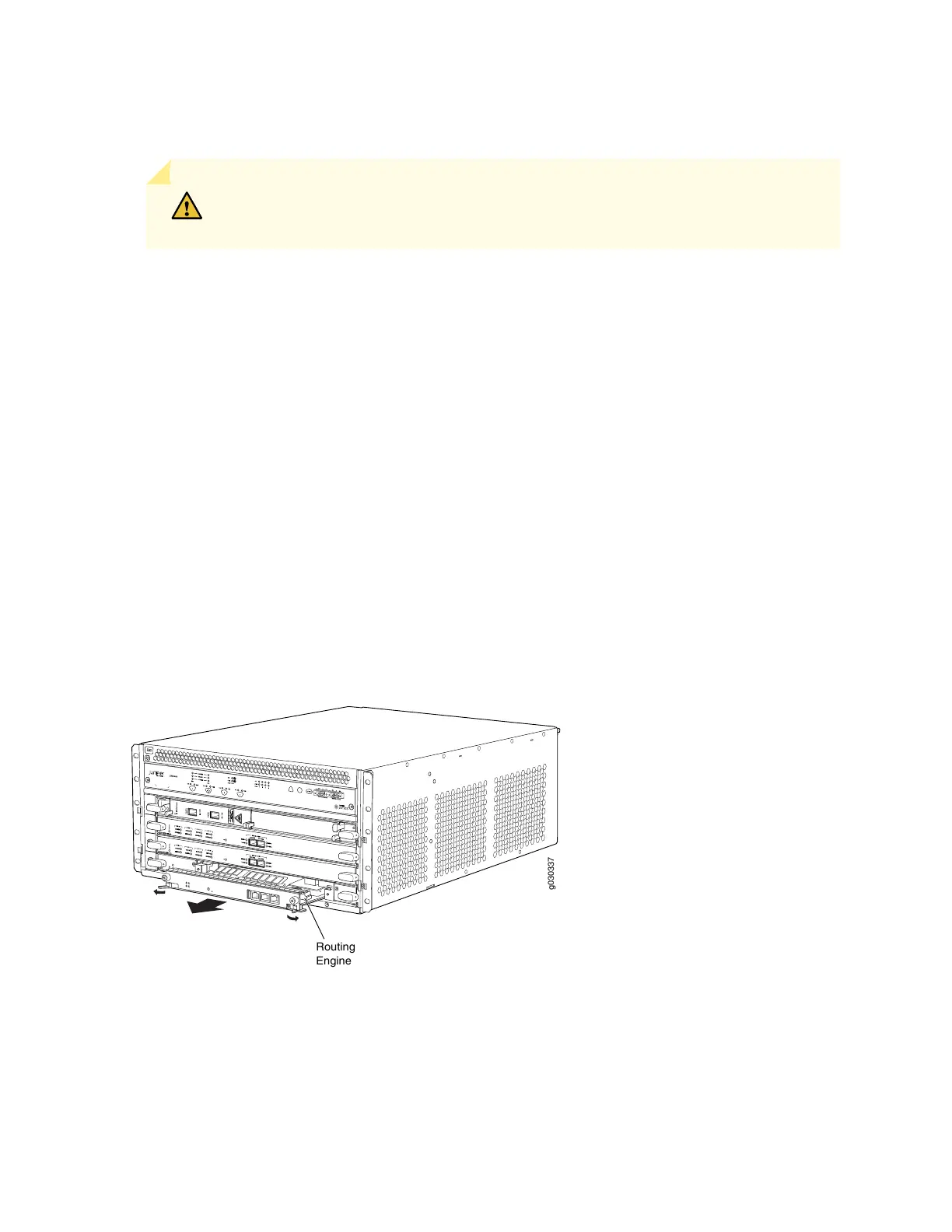

Figure 108: Removing the Routing Engine
7. Place the Routing Engine on the antistatic mat.
