The serial number label is located as shown in Figure 18 on page 64.

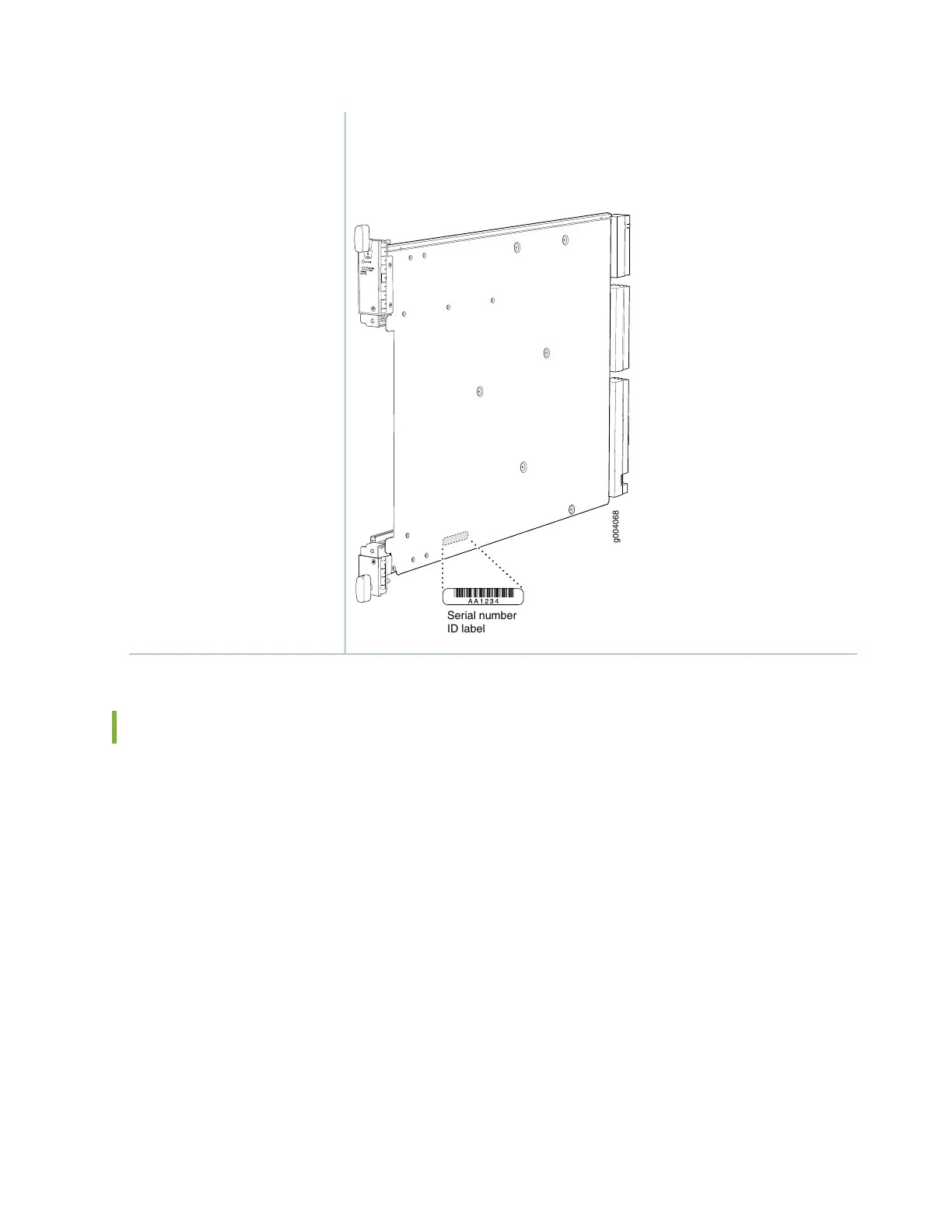

Figure 18: SCB Serial Number Label
g004068
Serial number
ID label
Serial Number Location
Switch Control Board SRX5K-SCBE Overview
The SRX5000 line enhanced Switch Control Board (SRX5K-SCBE) caters to high-end security markets
requiring support for higher capacity traffic. The SRX5K-SCBE provides greater interface density (slot and
capacity scale) and improved services.
Some key attributes of the SRX5K-SCBE are:
•
A bandwidth of 120 Gbps per slot with redundant fabric support and improved fabric performance by
using the next-generation fabric (XF) chip.
•
A centralized clocking architecture that supports clock cleanup and distribution. The Stratum 3 clock
module performs clock monitoring, filtering, and holdover in a centralized chassis location.
•
Full performance with fabric redundancy for higher capacity line cards such as the SRX5K-MPC.
The Routing Engine installs directly into a slot on the SRX5K-SCBE as shown in Figure 19 on page 65.
64
