SRX5400 Services Gateway Craft Interface Overview
The craft interface shows you status and troubleshooting information at a glance and lets you perform
many system control functions. It is hot-insertable and hot-removable. The craft interface is located on
the front of the services gateway above the upper fan tray.
Figure 4 on page 33 shows the front panel of the craft interface and Table 5 on page 33 describes the
components on the front panel.

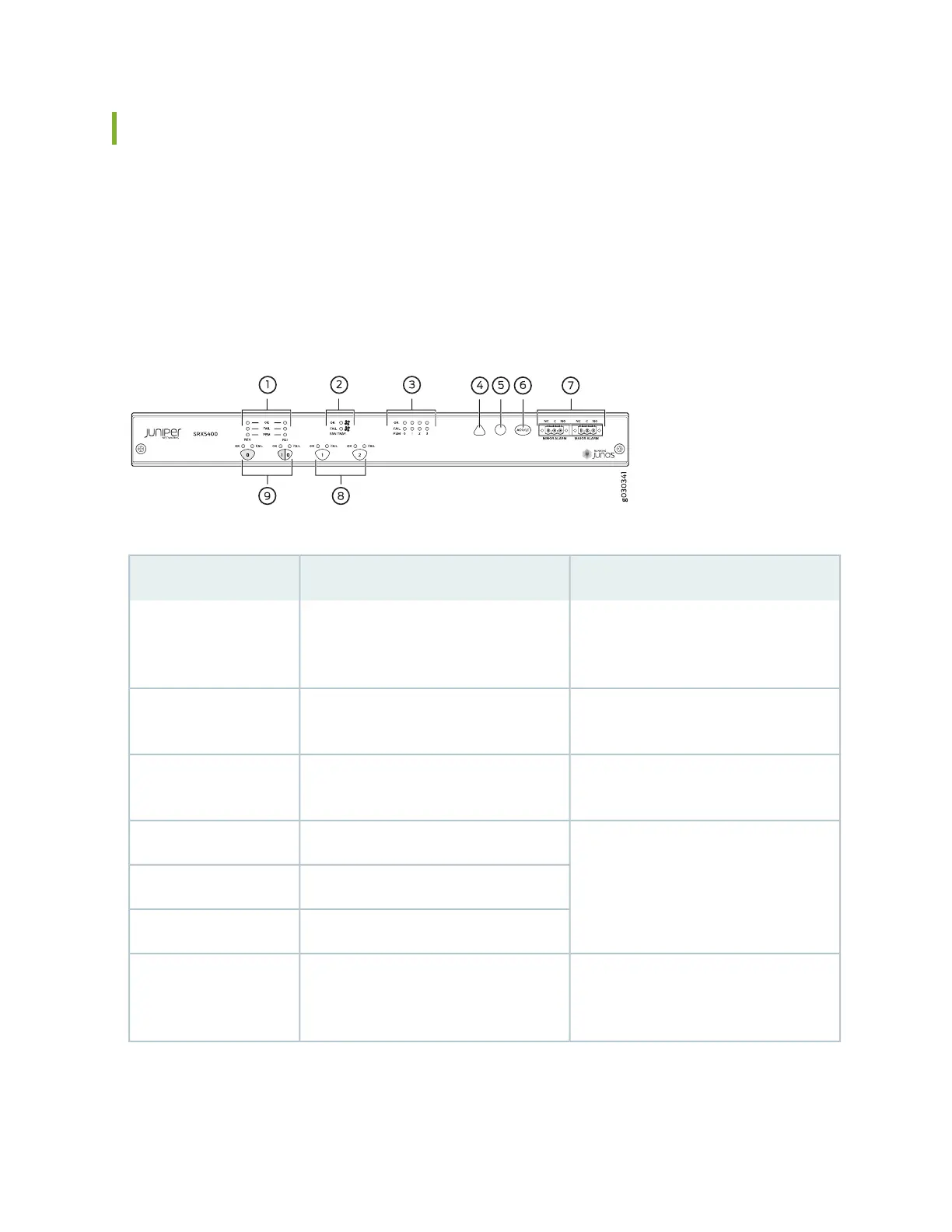

Figure 4: Front Panel of the Craft Interface
Table 5: Front Panel of the Craft Interface
ReferenceDescriptionComponent
See “SRX5400 Services Gateway Craft
Interface Host Subsystem LEDs” on
page 35
Routing Engine LEDs1
See “SRX5400 Services Gateway Craft
Interface Fan LEDs” on page 36
Fan LEDs2
See “SRX5400 Services Gateway Craft
Interface Power Supply LEDs” on page 35
PEM LEDs3
See “SRX5400 Services Gateway Craft
Interface Alarm LEDs and Alarm
Cutoff/Lamp Test Button” on page 34
Minor alarm LED4
Major alarm LED5
Alarm cutoff button6
See “SRX5400 Services Gateway Craft
Interface Alarm Relay Contacts” on
page 39
Alarm relay contacts7
33
