Keyscan EC2500 Series - Figure 76 - Multiple ACU Communication

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

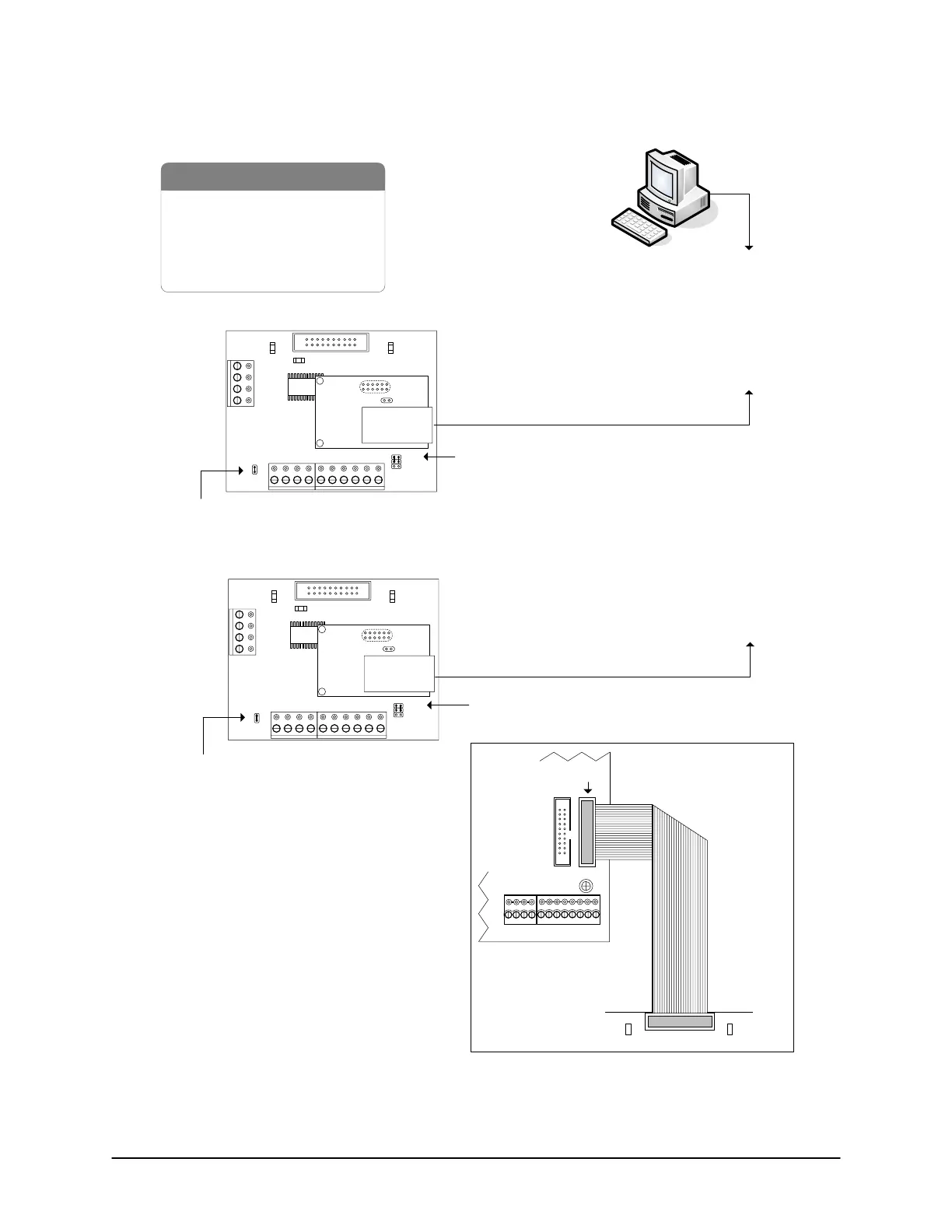

Figure 76 – Multiple ACU Communication - NETCOM2P or NETCOM6P/CB-485 (1 to 1)

-PC

- Control Board

-CB-485

-NETCOM2P or NETCOM6P

- 10/100 Base-T cable

Host PC with

Communication

Manager

Jumper ON

to network

10/100 Base-T

to network

10/100 Base-T

Jumper ON

Jumpers

Run

Jumpers

Run

Connect CB-485 ribbon cable

to CPB/CB MODULE terminal

on control board.

Common AUX Inputs - E

CPB/CB MODULE

(COM4)

CB-485

Control

Board

(PC 109x)

LED

Parts List

Important

Jumper ON

J16 – G to

activate CPB/

CB MODULE

(H1) terminal.

Current Draw - 250 mA

CB-485

BRN

WHT

GRN

WHT

BRN

WHT

GRN

WHT

BLU

WHT

RS485 IN RS485 OUT M

+-+-+-+-

Run

Program

LED

GND

NETCOMP

RJ45

Terminal

Jack

Current Draw - 250 mA

CB-485

BRN

WHT

GRN

WHT

BRN

WHT

GRN

WHT

BLU

WHT

RS485 IN RS485 OUT M

+-+-+-+-

Run

Program

LED

GND

NETCOMP

RJ45

Terminal

Jack
