Keyscan Technical Guide (PC109x - 04.12)

Enclosure Ground Strap

Ensure that the enclosure ground strap is connected to the designated studs on both the metal enclosure and

the enclosure cover. Be sure the cable lug is positioned between two star washers and securely tightened with

a nut as illustrated in the diagram below.

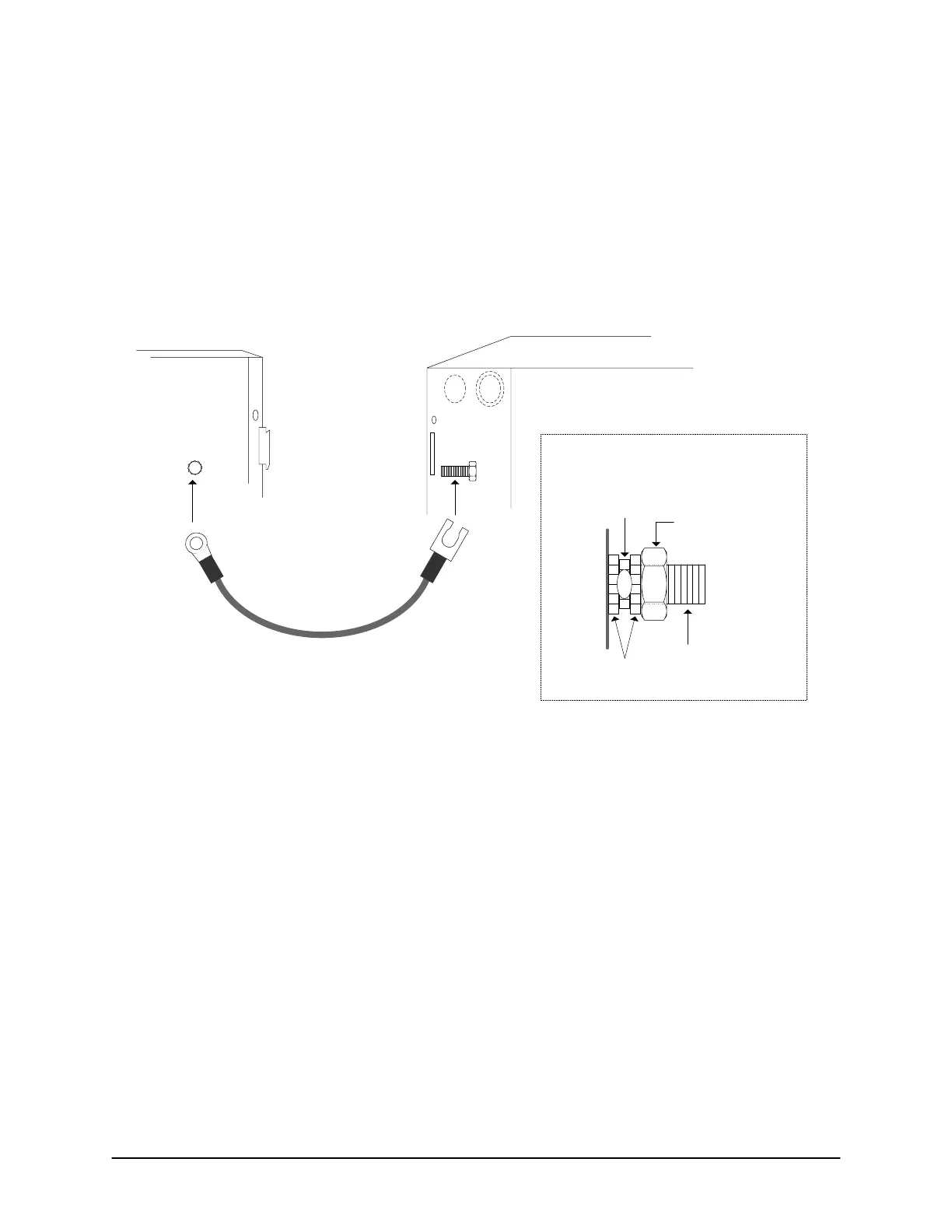

Figure 14 – Enclosure Ground Strap Connection

Enclosure Ground Strap

Enclosure Cover

Metal Enclosure

Use the enclosed star washers and nuts to secure both

ends of the cable to the studs as shown on the right.

Stud

Star

Washers

Nut

Cable

Lug

Stud

Side View of Stud with Cable Lug Connection

KI-00117E-07-11
