Keyscan EC2500 Series - Figure 25 - Terminate Lock Wiring CA8500 B

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

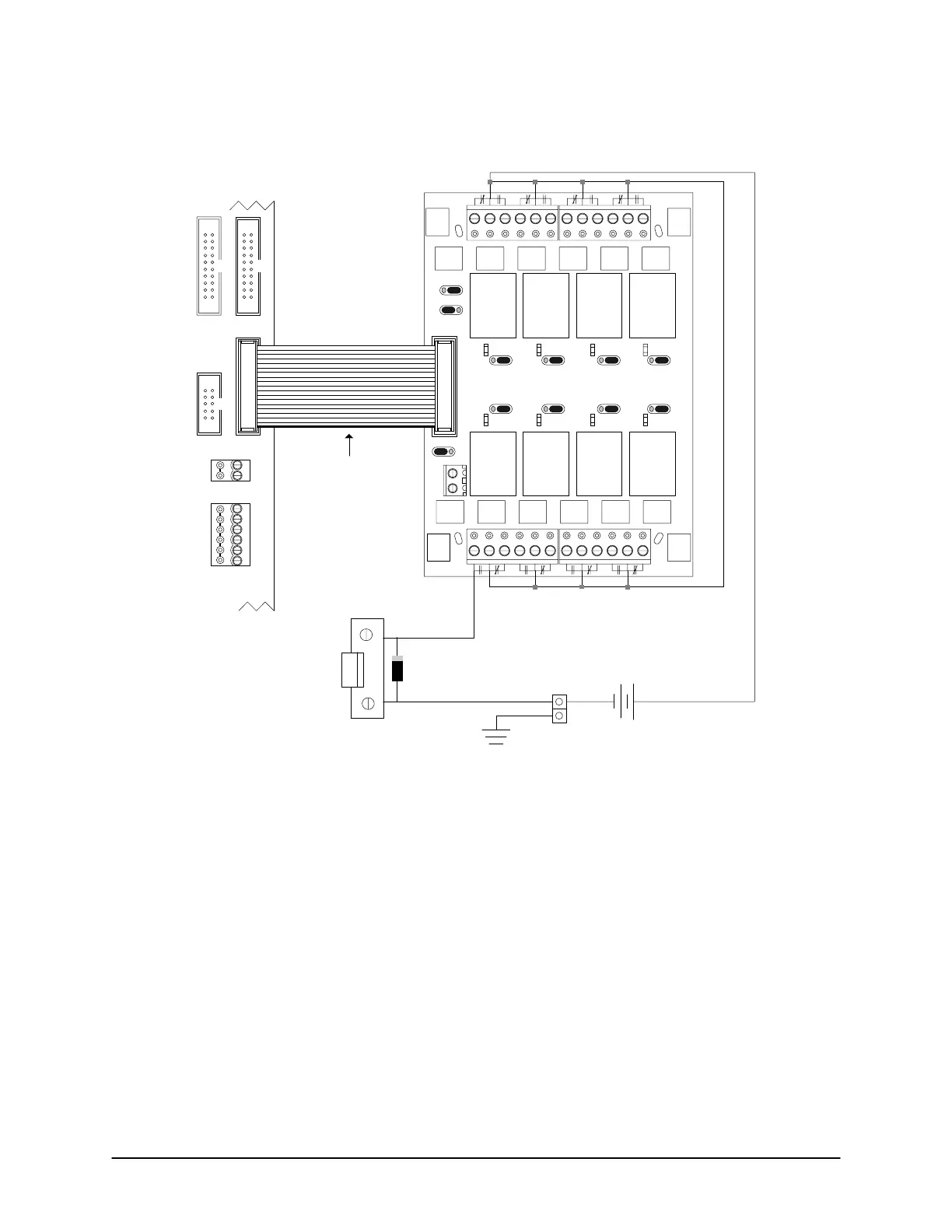

Figure 25 – Terminate Lock Wiring CA8500B

12 VDC+Com

CA8500B

Control

Board

Cut View

Supply

OCB-8 ribbon cable

connects to CONTROL 1

terminal.

Door

Output

Door

Output

Door

Output

Door

Output

Door

Output

Door

Output

Door

Output

Door

Output

J1 J2 J3 J4

J5J6J7

12V

ACU EXT

PWR

Normal

Reversed

K2 K3 K4

K5K6K7K8

GND

CONTROL 2

Diode

1N4004

Door # 1

Door Strike

- Fail Secure -

to N.O.

Ensure all lock

hardware complies

with federal, state/

provincial, and

municipal fire codes.

red stripe

OCB-8

Ground

Lug

OCB-8 powered

through ribbon

cable with J9 set

to ACU PWR.

CONTROL 4

RS-232 (COM4)

CTS

DTR

DCD

GND

TAMPER TB3

SWITCH
