Keyscan EC2500 Series User Manual

Keyscan Technical Guide (PC109x - 04.12)
140

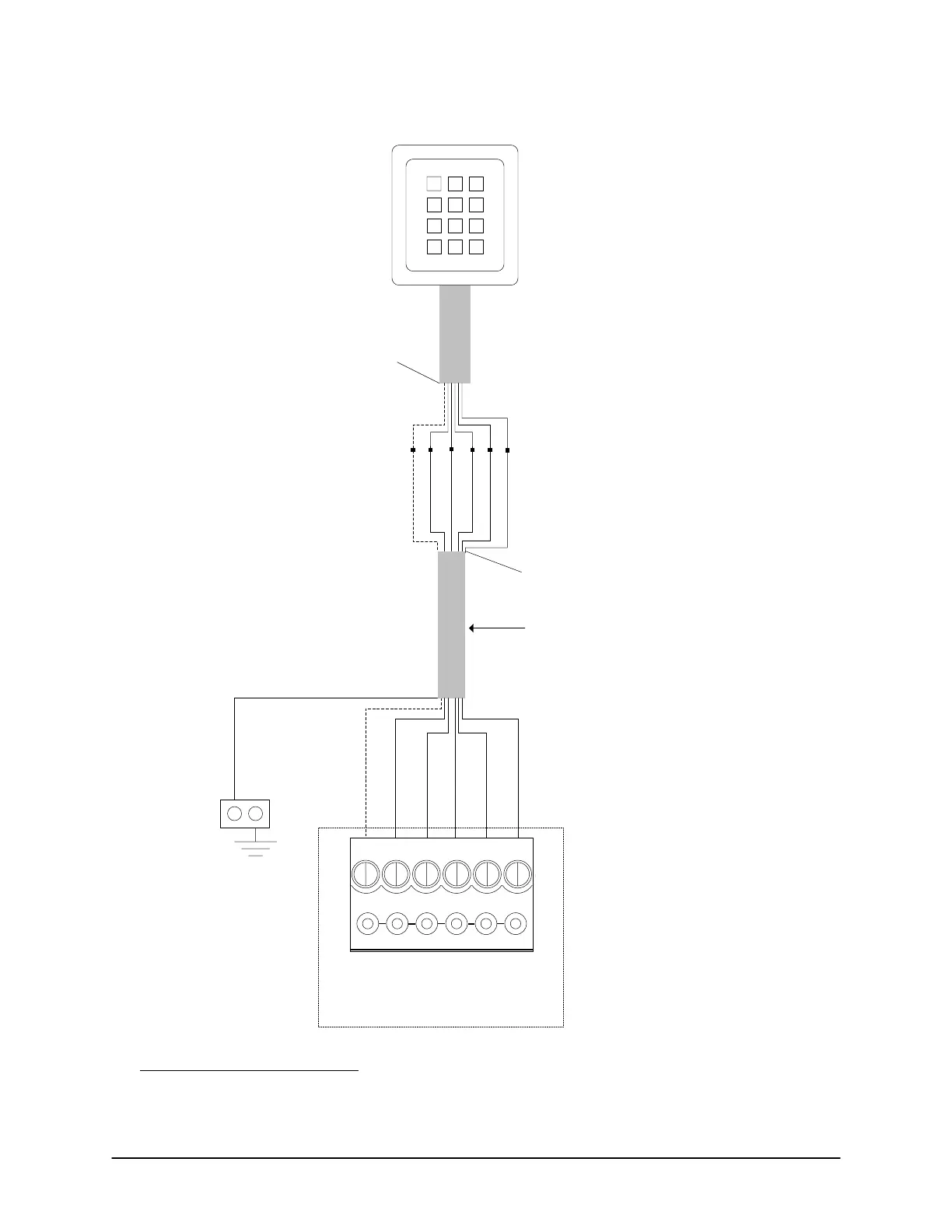

Figure 109 – Indala PXK 501 Wiring
1
4
7
*
2
5
8
0
3
6
9
#
LED (Brown) D1 (White) D0 (Green)
PWR (Red)
GND (Black)
Blue used for pre-alert otherwise
isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Pre-alert (Blue)
Shield not connected.
Isolate with electrical tape.
Shield not connected.
Isolate with electrical tape.
6 conductors - shielded 22 AWG
Maximum 500 ft (152.4 m)
Shield
ACU
Ground
Lug
D1 (White) D0 (Green) PWR (Red) GND (Black) LED (Brown)
Reader terminal on control board
Pre-alert (Blue)
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
KI-00213E-07-11
Note on Indala PXK 501 Wiring
Reader/Keypad/LED ordered as 8 bit burst – example FP5061B-8 Bit Burst (Red only)
