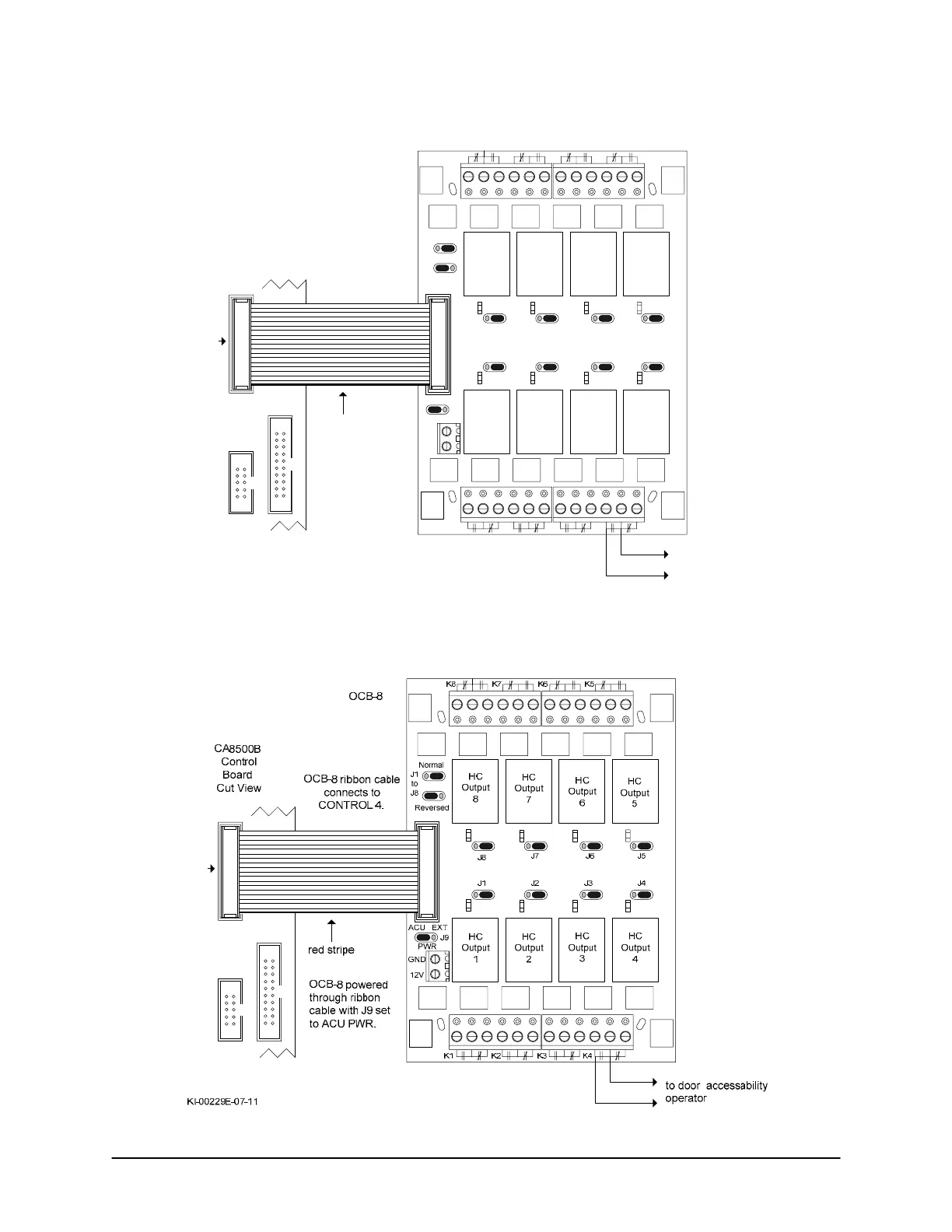

Figure 124 – Accessibility HC Output Relay CA4500B/OCB-8 Connections

CA4500B

Control

Board

Cut View

OCB-8 ribbon cable

connects to

CONTROL 4.

Output

Not

Used

Not

Used

Not

Used

J1 J2 J3 J4

J5J6J7

12V

ACU EXT

PWR

Normal

Reversed

K2 K3 K4

K5K6K7K8

GND

red stripe

OCB-8

Not

Used

door

accessability

operator

OCB-8 powered

through ribbon

cable with J9 set

to ACU PWR.

CONTROL 1

CONTROL 4

KI-00228E-07-11

Figure 125 – Accessibility HC Output Relay CA8500B/OCB-8 Connections

CONTROL 1

CONTROL 4
