Keyscan EC2500 Series User Manual

Keyscan Technical Guide (PC109x - 04.12)
87

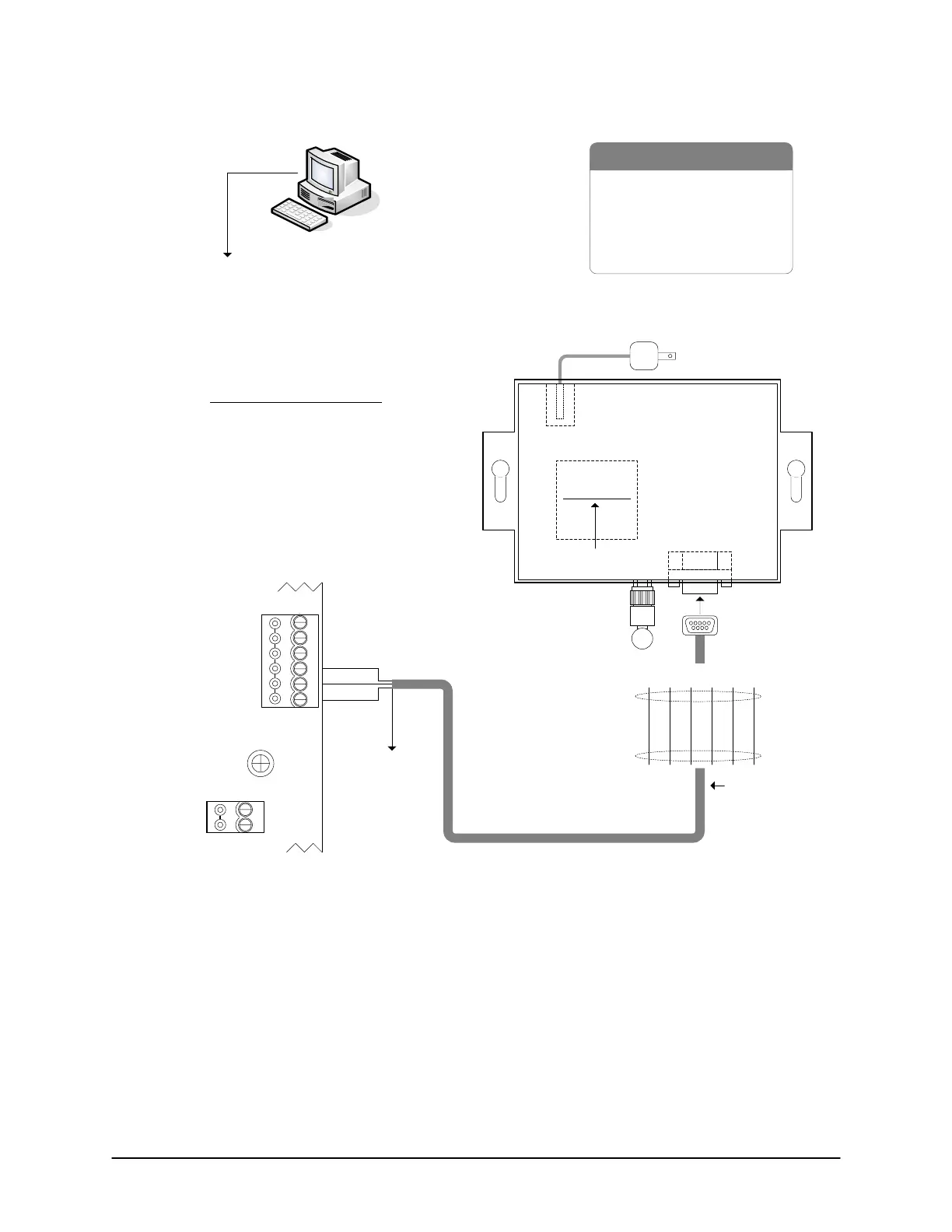

Figure 64 – Single ACU Communication - NETCOM2WH or NETCOM6WH/Control Board
Host PC with
Communication Manager
- RS-232 Data Cable
- Control Board
- PC with connection to network
- NETCOM2WH or NETCOM6WH
- Wireless network access point
via shielded 6-wire cable
Brown Shield Green Black Red White
to
network
RS-232
22 AWG
shielded cable
100 ft (30 m)
maximum @
9600 BPS
9-pin Male
Connector
NETCOM2WH
or
NETCOM6WH
Current Draw
350 mA
MAC Address
Lantronix WiPort
00-20-4A-96-49-BC
Antenna
NETCOM Internal LED Legend
- RS-232 indicates 9-pin terminal connected
- RX indicates PC polling ACU/ECU
- TX indicates ACU/ECU replying to PC
- ON indicates unit receiving power
- WLAN indicates wireless data transfer
& wireless access point present
12 VDC
Power Adaptor
Maximum wireless range is
100 m (328 ft) based on
indoor open air installation.
Parts List
GND
RS-232 (COM4)
Control Board
(PC 109x)
Green
Black
Brown & White not used.
Tape back separately.
TD
RD
DCD
DTR
CTS
Red
To ground lug
Shield*
IOCB (COM1)
RX
TX
Ensure J16 – F & G
Jumpers OFF
KI-00167E-07-11
* Insulate shield with PVC tubing such as Alpha #16 or
comparable insulator and connect to ground lug.

Keyscan EC2500 Series Specifications

General

Brand	Keyscan
Model	EC2500 Series
Category	Control Unit
Language	English
