Keyscan EC2500 Series User Manual

Keyscan Technical Guide (PC109x - 04.12)
127

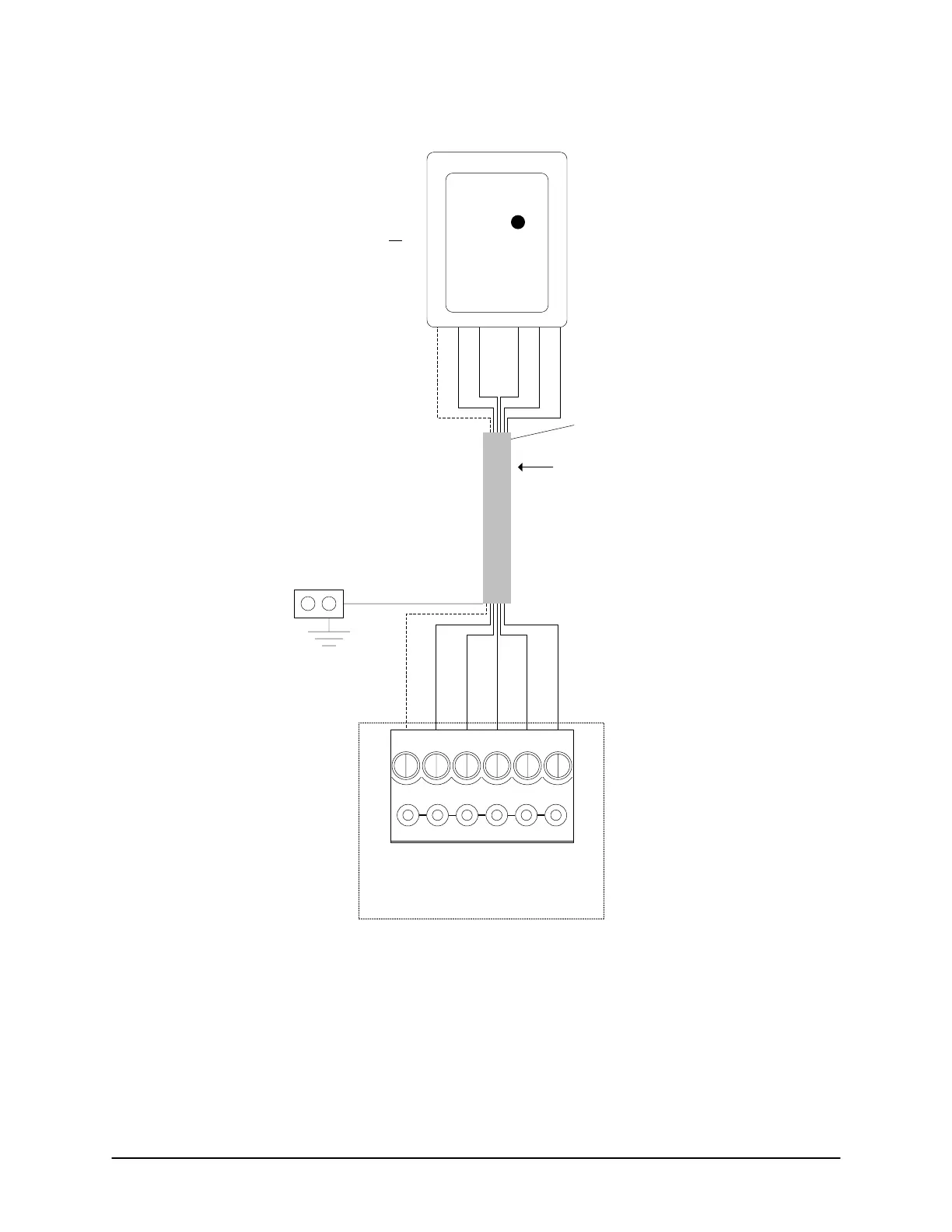

Figure 97 – HID-5395 Wiring
LED (Orange) D1 (White) D0 (Green) PWR (Red) GND (Black)
Shield not
connected.
Isolate with electrical
tape.
6 conductors - shielded 22 AWG
Maximum - 500 ft (152.4 m)
HID-5395
with
00 LED
Example 5395CG100
Shield
ACU
Ground
Lug
D1 (White) D0 (Green) PWR (Red)
GND (Black)
LED (Orange)
Reader terminal on control board
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
Pre-alert (Yellow)
Pre-alert (Yellow)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Note - If Pre-alert is connected,
the reader cannot read any
HID 125 kHz-compatible card
during the pre-alert beep.
KI-00201E-07-11
