Keyscan EC2500 Series User Manual

Keyscan Technical Guide (PC109x - 04.12)
84

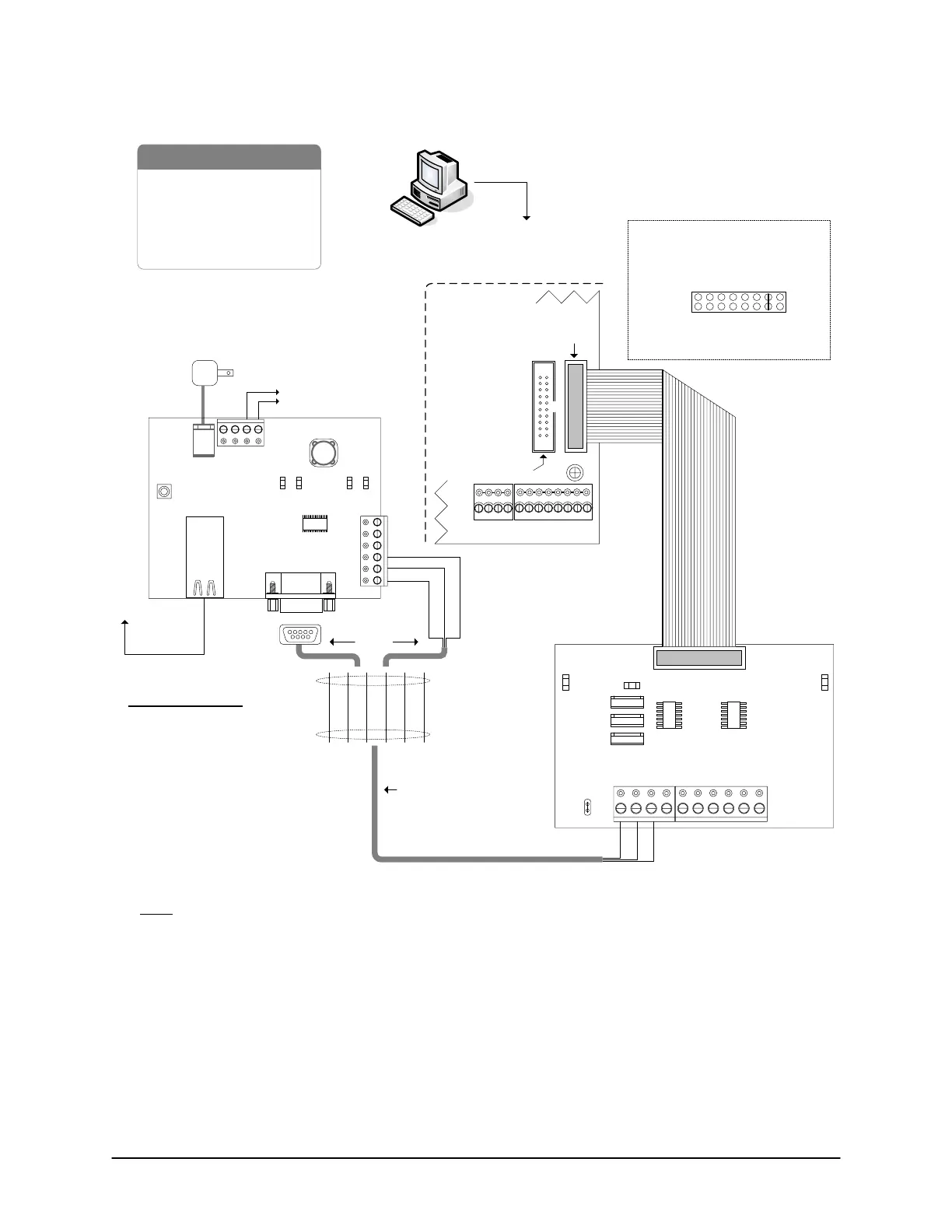

Figure 61 – Single ACU Communication - NETCOM2 or NETCOM6/CPB-10-2
Host PC with
Communication Manager
- RS-232 Data Cable
- Control Board
-PC
- CPB-10-2
- NETCOM 2 or NETCOM6
- 10/100 Base-T Cable
RS - 232
22 AWG shielded cable
Maximum - 100 FT (30 m)
10/100 Base-T
12VDC Power Adaptor
(NETCOM2H or NETCOM6H)
to network
12VDC to DPS15
(NETCOM 2 or
NETCOM6)
Green
Red
Black
Either
or
Use either the 9-
pin connector or
the terminal block.
Do not use both to
connect to the
CPB-10-2.
to
network
NETCOM LED Legend
- RS232 indicates 9-pin terminal
connected
- RX LED indicates PC polling
ACU/ECU
- TX LED indicates ACU/ECU
replying to PC
- ON LED indicates unit
receiving power
Brown & White not
used. Tape back.
Shield & Green
Red
Black
Brown Shield Green Black Red White
Parts List
Brown & White not
used. Tape back.
Control Board
(PC 109x)
Common
AUX Inputs - E
24
2322
2120191817
CPB/CB MODULE
(COM4)
Connect CPB-10-2 ribbon cable to
CPB/CB MODULE on control board.
Jumper ON J16-G to activate
CPB/CB MODULE (H1).
SYSTEM CONFIG.
J16 - H
GABCDEF
H1
12VDC
power adaptor
12VDC
+-
Reset
Button
RJ45
Jack
9-pin Male
Connector
RS-232RX TX ON
LEDsLEDs
GND
TD
RD
DTR
DCD
I/O
NETCOM2 or
NETCOM6
Current Draw
270 mA
Jumper
ON
J1
GND
CPB-10-2
J1
RX LEDTX LED
TD RD DCD GND R T B DTR CTS
Current Draw - 40 mA
H2
ECM/GCM MODULE
(COM2 & COM3)
KI-00164E-07-11
Note
If the NETCOM2 or NETCOM6 is mounted in the metal enclosure, the shield of the serial cable may be
connected to GND as shown. If the NETCOM2 or NETCOM6 is mounted outside the metal enclosure the
shield must be insulated and connected directly to the metal enclosure ground lug. See Grounding
Communication Cable Shield.
