Keyscan Technical Guide (PC109x - 04.12)

153

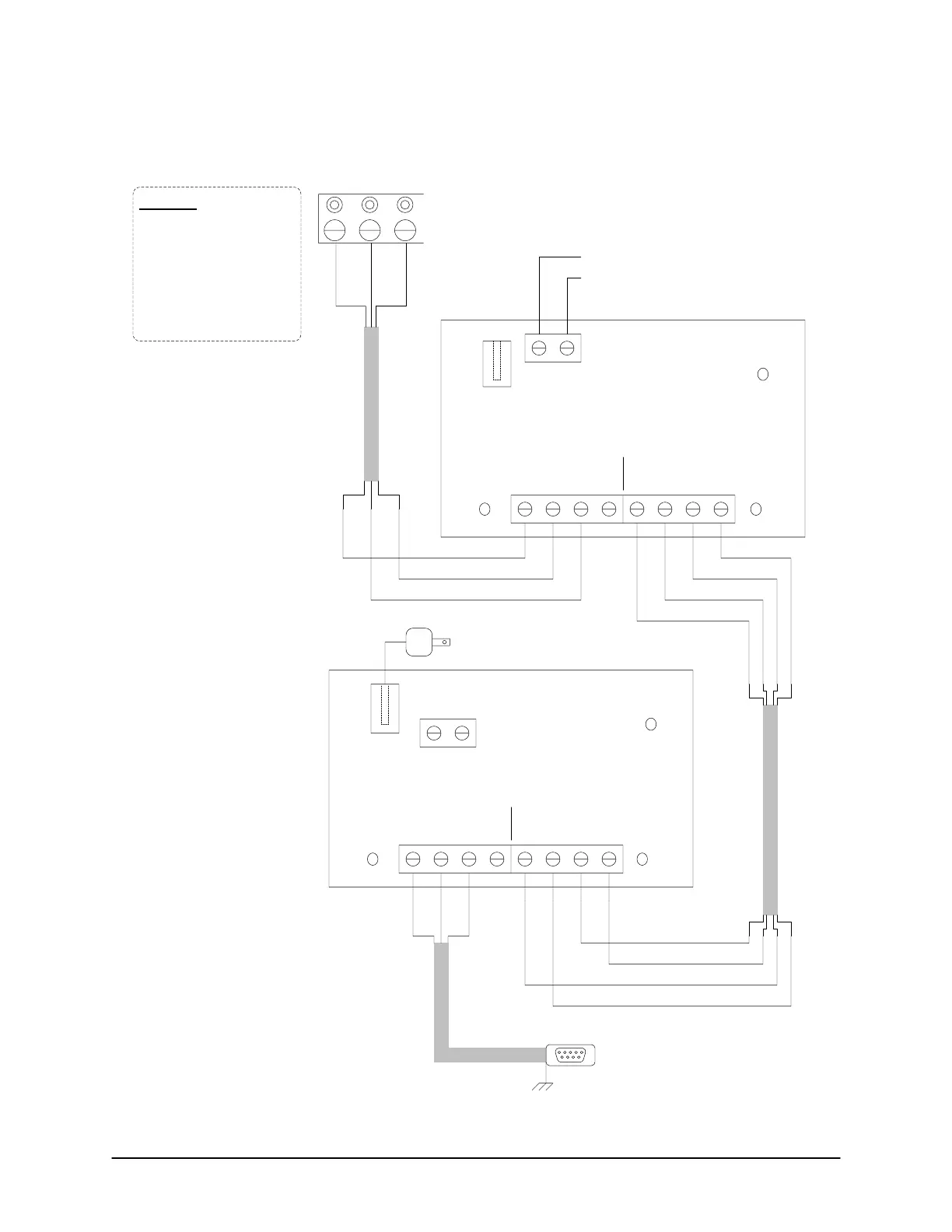

Figure 118 – COMMex Connections

GND

RS-232

RS-485

TD RD GND + TX - + RX -

12 VDC

LED

Power

RS-232

Black

Red

Green

Yellow

Black

Red

Black

Yellow

Green

RS-485

Connect to ACU power supply

Connect AC transformer at PC end

GND

RS-232

RS-485

TD RD GND + TX - + RX -

12 VDC

Green

Black

Red

40-2322 female cable end

connects to PC COM port.

Connect shield to earth ground

Control Board or CPB-10-2 or CB-485 Communication Terminal

LED LED

LED

Power

LEDLED

RS-232

GND TD RD

Important

If terminating at ACU (TB4)

ensure J16 – F & G

Jumpers OFF

If terminating at CB-485 or

CPB-10-2, ensure on ACU

J16 – G

Jumper ON

KI-00222E-07-11
