Keyscan EC2500 Series - Figure 108 - Indala PX 620 Wiring

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

139

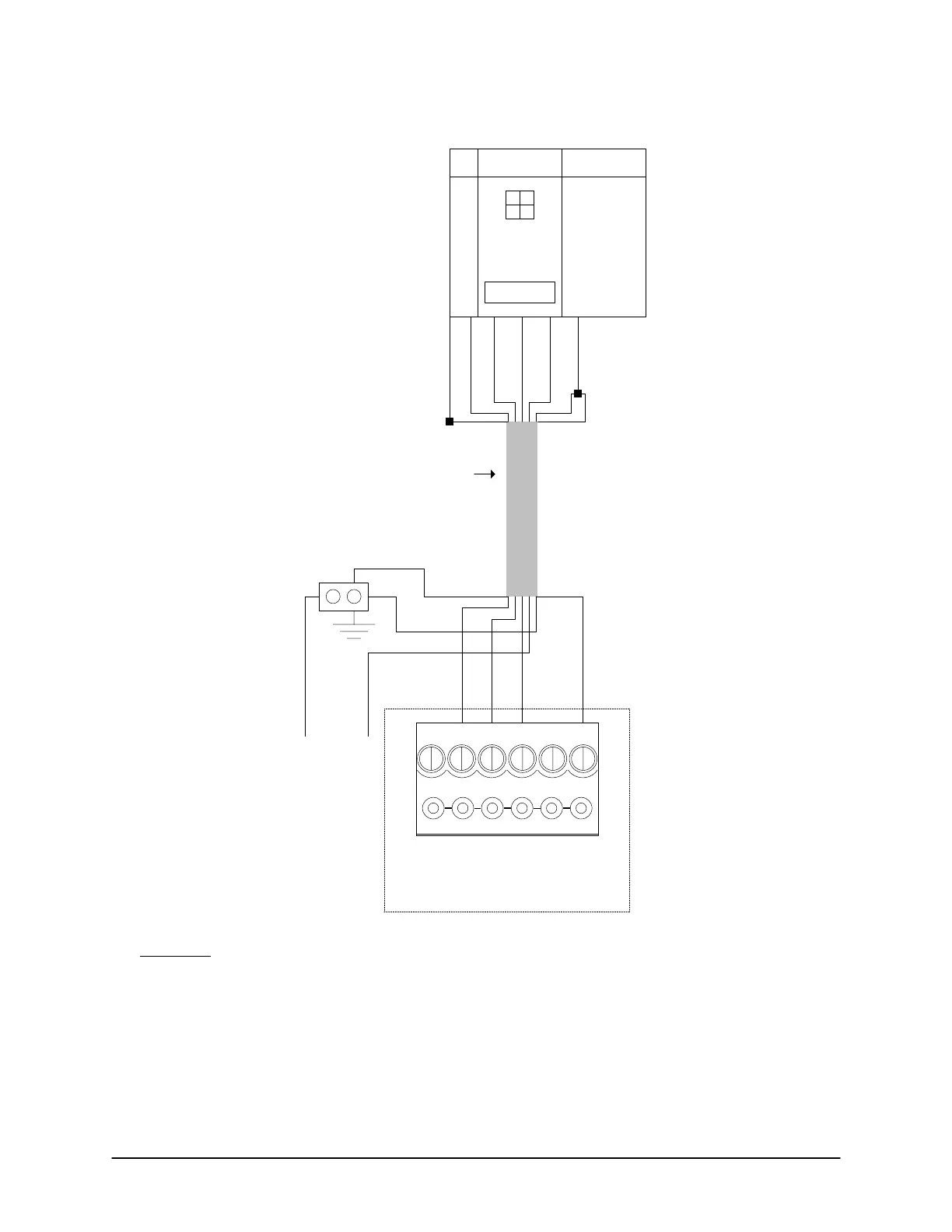

Figure 108 – Indala PX 620 Wiring

Brown

White

Green

Red

Black 1 & 2

Shield

ACU Ground

Lug

White

Green

Red +

Black 2

Brown

Black 1

Black -

separate

power

supply

PX 620

24 VDC

6 conductors shielded 18 AWG

Maximum - 500 ft (152.4 m)

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

KI-00212E-07-11

Important

Do not mount an Indala PX 620 reader in an elevator car. The environment is unsuitable and causes the

reader to malfunction.

The PX 620 is factory tuned. If a PX 620 requires tuning, tune only once. Excessive tuning may cause the

reader to permanently malfunction. Refer to the Indala documentation for instructions on tuning.
