Keyscan Technical Guide (PC109x - 04.12)

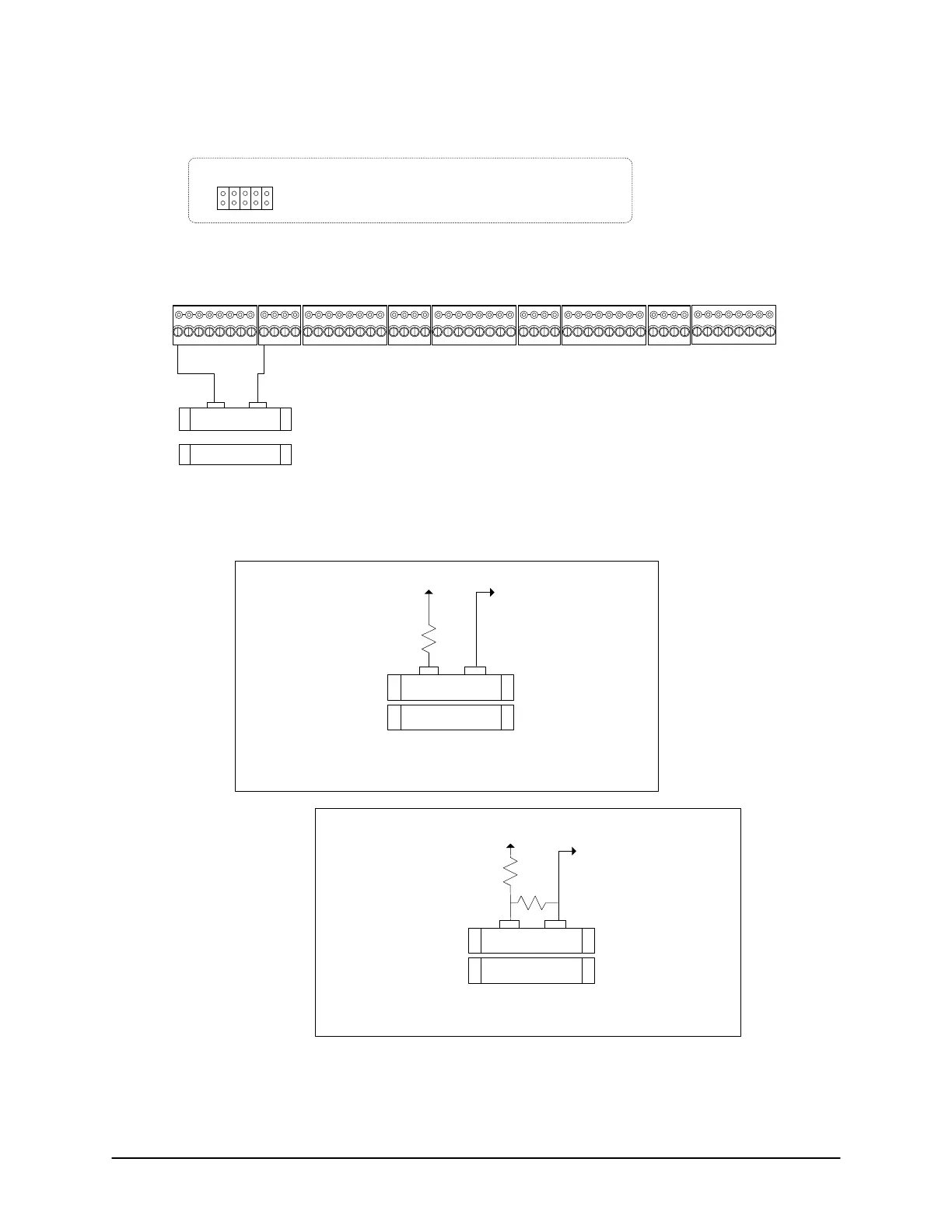

Figure 26 – Terminate Input Wiring – Door Inputs (Contacts)

Cut View of CA8500B

Door Inputs - A RTE Inputs - B

Door Contact

Normally Closed

J18 – Jumper 5 & 4 = Off

Door 1

Door

Input

Door Contact

Common

Normally Closed

J18 – Jumper 5 = Off

Jumper 4 = On

Single end of line

supervision

to Door Input

Door Contact

to Common

Normally Closed

J18 Jumper 5 & 4 = On

Double end of line

supervision

Non-supervised

Notes

Diagram illustrates CA8500B. Connections

also apply to CA250B & CA4500B.

- CA250B – up to 2 door inputs

- CA4500B – up to 4 door inputs

- CA8500B – up to 8 door inputs

J18 – pins 5 & 4 set supervision type (Jumper setting

applies to all Door Inputs, RTE Inputs, and AUX Inputs.)

COM

54321

Common

54321

AUX Inputs - C

54321

Common

Common AUX Inputs - D

1514

131211109

Common AUX Inputs - E

2322

2120191817

J18

54321

KI-00129E-07-11
