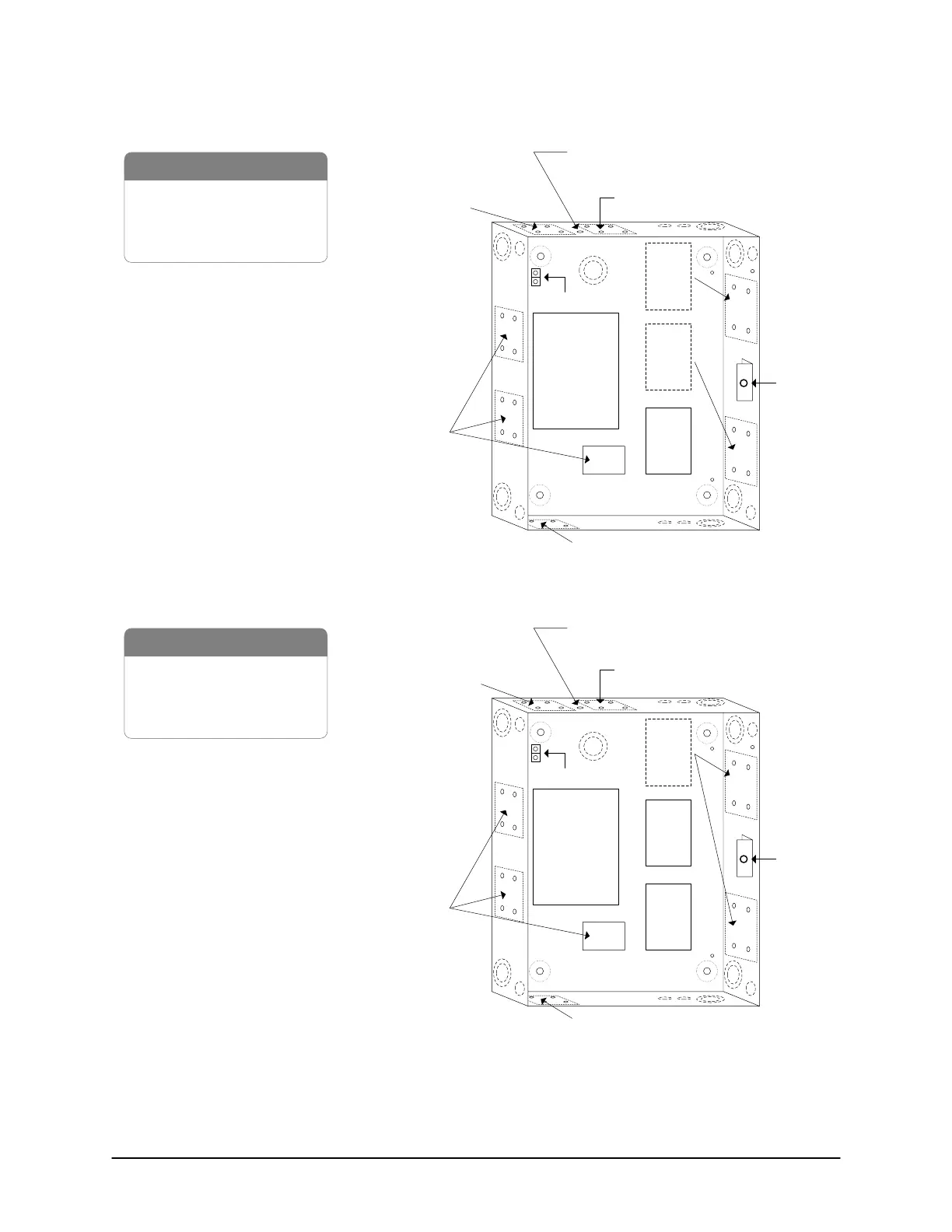

Figure 11 – EC1500 with Board Mounting Positions
Front View
Cover not shown
Tamper
Switch
1 x EC1500B control board
1 x OCB-8
1 x DPS-15 power supply
1 x metal enclosure
EC1500B
Control
Board
OCB-8
Optional
OCB-8
Locations
Ground Lug
Wireless NETCOM antenna
Optional
OCB-8
Locations
Wireless NETCOM or NETCOM
or MC9600
NETCOM*
or
CB-485
or
CB-485M
or
CPB-10-2
* NETCOM - for side mount,
use terminal block only, not
9-pin male connector.
** DPS-15 must be
connected to TB1 terminal
on control board.
PC109x
Parts
DPS-15
power supply
Optional location for DPS-15 power supply**
KI-00114E-07-11
Figure 12 – EC2500 with Board Mounting Positions
Front View
Cover not shown
Tamper
Switch
1 x EC2500B control board
2 x OCB-8
1 x DPS-15 power supply
1 x metal enclosure
EC2500B
Control
Board
OCB-8
Optional
OCB-8
Locations
Ground Lug
Wireless NETCOM antenna
OCB-8
Wireless NETCOM or NETCOM
or MC9600
NETCOM*
or
CB-485
or
CB-485M
or
CPB-10-2
* NETCOM - for side mount,
use terminal block only, not 9-
pin male connector.
** DPS-15 must be connected
to TB1 terminal on control
board.
PC109x
Parts
DPS-15
power supply
Optional location for DPS-15 power supply**
KI-00115E-07-11
