Keyscan Technical Guide (PC109x - 04.12)

138

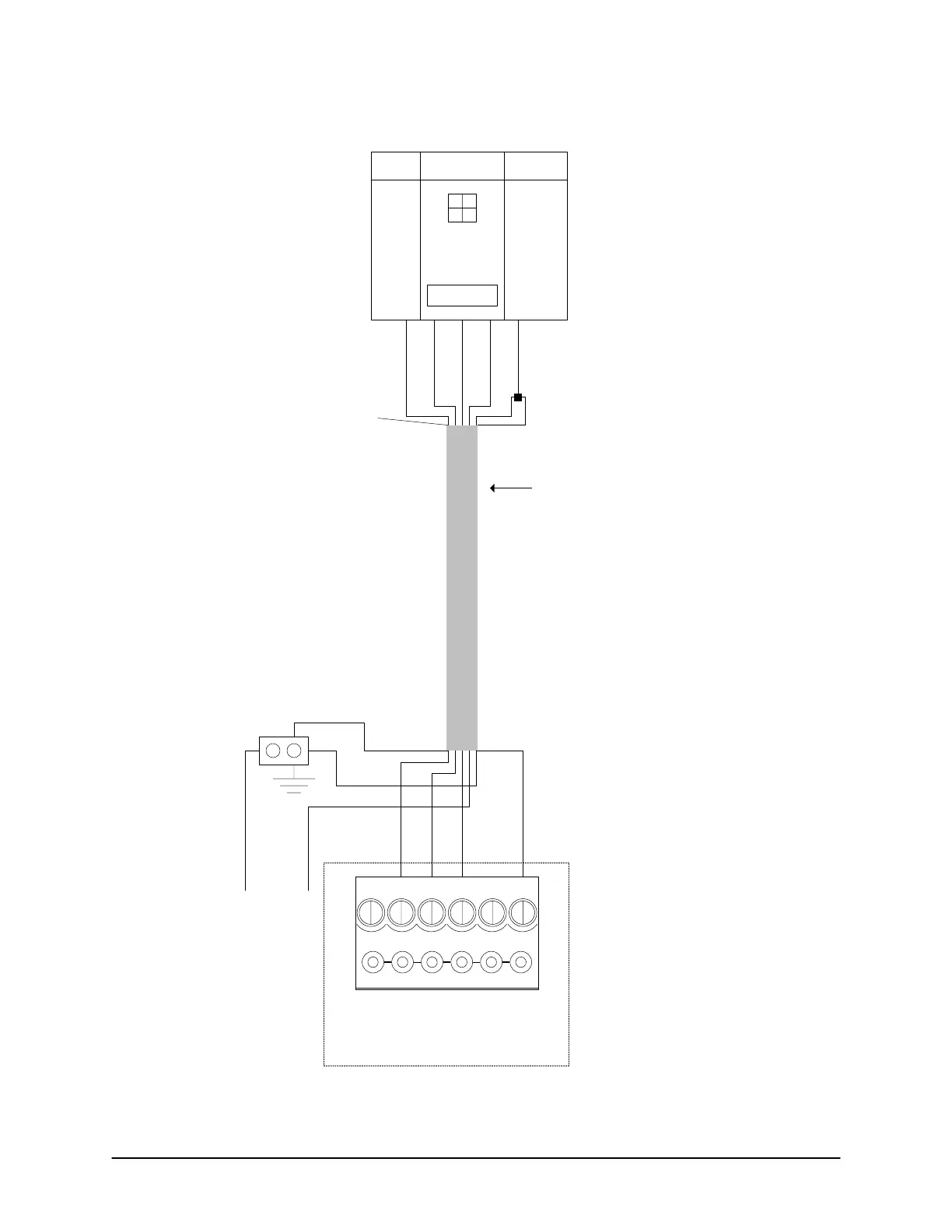

Figure 107 – Indala PX610 Wiring

Brown

White

Green

Red

Black 1 & 2

Shield not

connected.

Isolate with electrical

tape.

6 conductors shielded 22 AWG

500 ft (152.4m ) maximum

Shield

ACU Ground

Lug

White

Green

Red +

Black 2

Brown

Black 1

Black -

separate

power

supply

PX 610

12 VDC

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

KI-00211E-07-11
