Keyscan EC2500 Series - Figure 123 - Accessibility HC Output Relay CA250 B;OCB-8 Connections

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

161

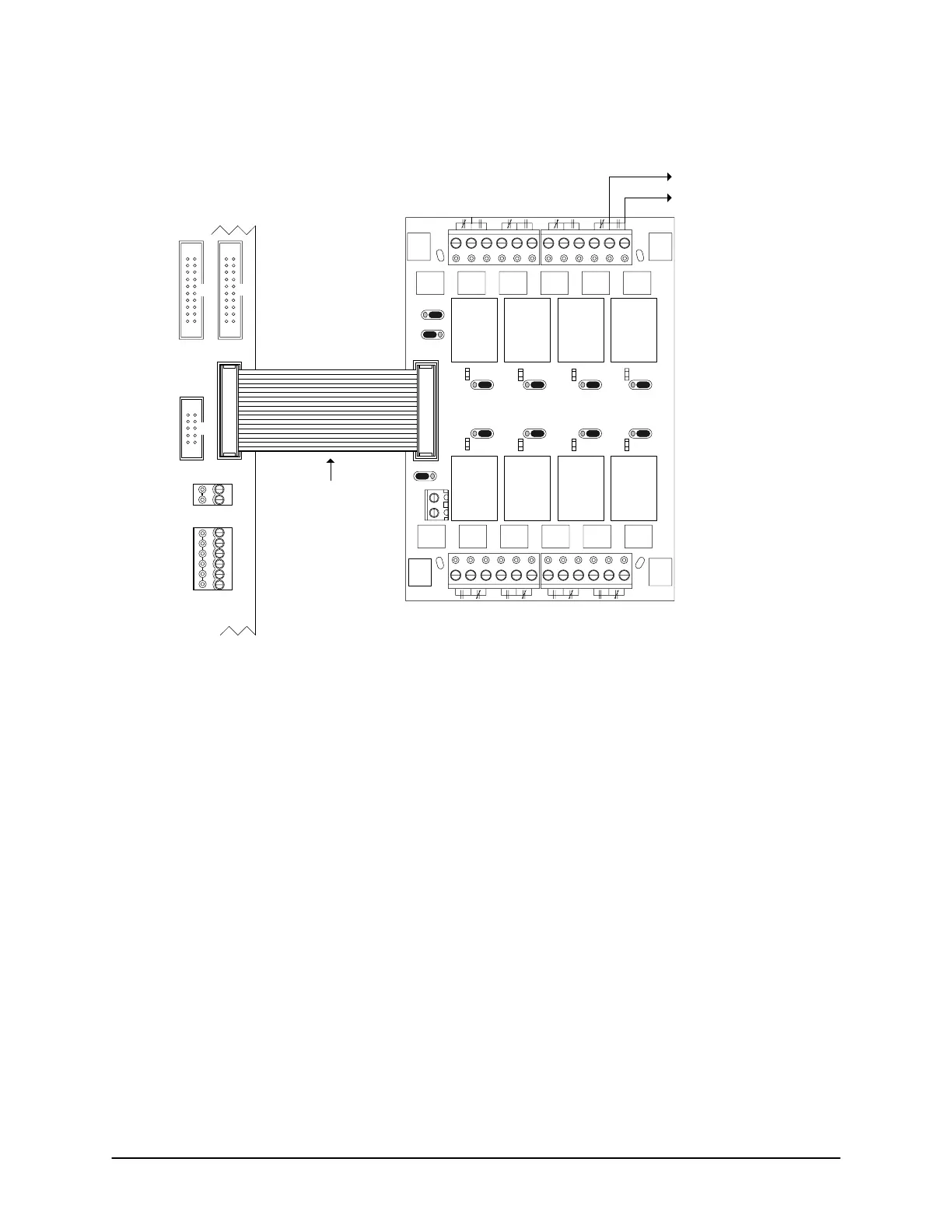

Figure 123 – Accessibility HC Output Relay CA250B/OCB-8 Connections

OCB-8 ribbon cable

connects to CONTROL 1.

Door

Output

Door

Output

Aux

Output

Aux

Output

Pre-

Alert

Output

Pre-

Alert

Output

J1 J2 J3 J4

J5J6J7

12V

ACU EXT

PWR

Normal

Reversed

K2 K3 K4

K5K6K7K8

GND

red stripe

OCB-8

Output

When not used as

HC outputs, relay 5

can be used as Aux

Output 3 and relay

6 as Aux Output 4.

Do not use relays

for both functions.

door

accessability

operator

CA250B

Control

Board

Cut View

CONTROL 2

RS-232 (COM4)

CTS

CONTROL 4

DTR

DCD

GND

OCB-8 powered

through ribbon

cable with J9 set

to ACU PWR.

TAMPER TB3

SWITCH

KI-00227E-07-11
