Keyscan Technical Guide (PC109x - 04.12)

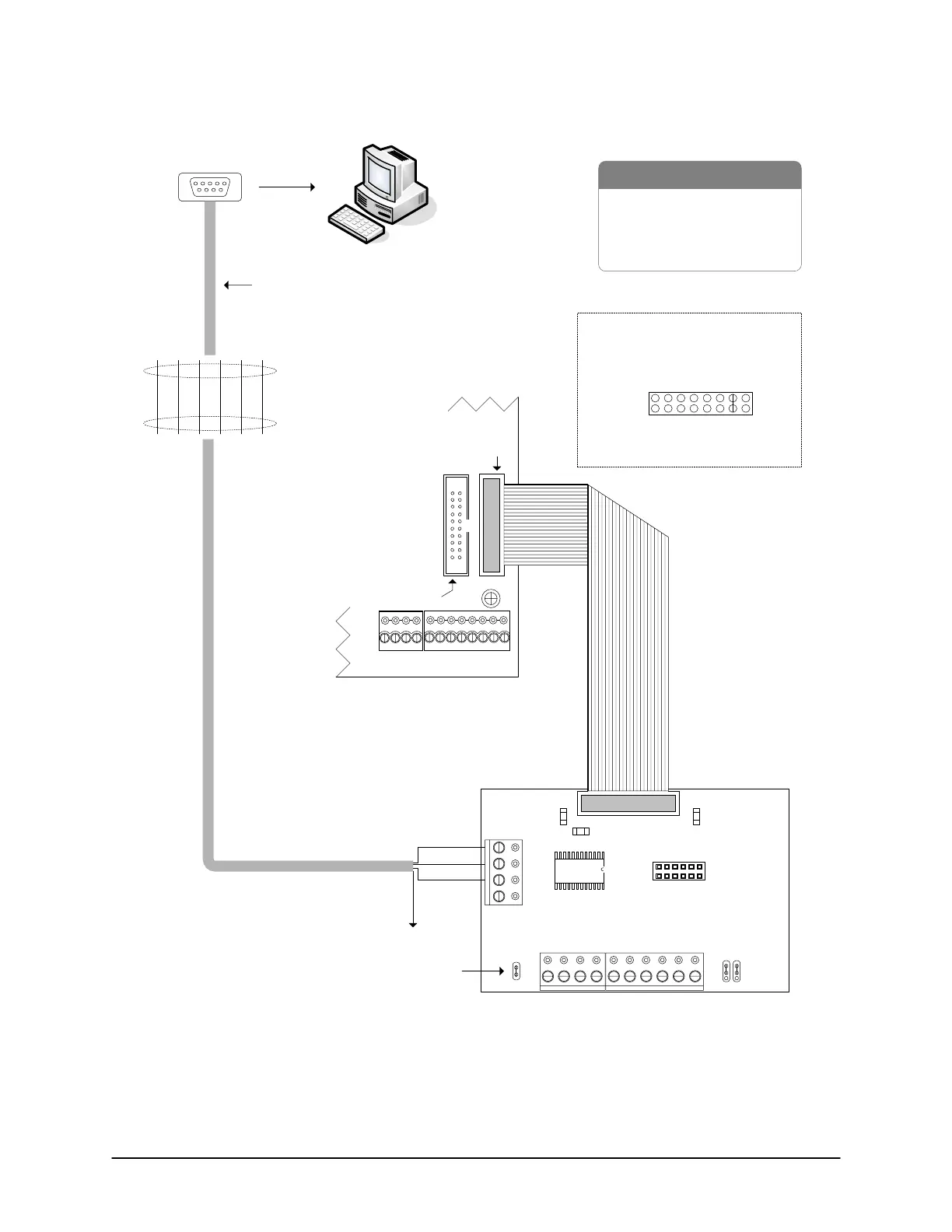

Figure 51 – Single ACU Communication – Serial CB-485

to Com Port

Brown

Shield

Green

Black

Red

White

PC with

Communication

Manager

- RS-232 Data Cable

- Control Board

- CB-485

- PC (requires serial port)

GND

Brown & White

not used and

taped back.

Green

Red

CB-485

Black

Control Board

(PC 109x)

LED

BRN WHT GRN WHT BRN WHTGRN WHT BLU WHT

RS485 IN RS485 OUT M

+-+-+-+-

Jumper ON J1

RS-232

22 AWG shielded cable

Maximum - 100 ft (30 m)

Current Draw - 110 mA

Jumpers ON

Run

Program

Shield*

to ground lug

Parts List

Common AUX Inputs - E

2322

2120191817

CPB/CB MODULE

(COM4)

Connect CB-485 ribbon cable to

CPB/CB MODULE on control board.

Jumper ON J16-G to activate

CPB/CB MODULE (H1).

SYSTEM CONFIG.

J16 - HGABCDEF

B LED

ECM/GCM MODULE

(COM2 & COM3)

KI-00154E-07-11

* Insulate shield with PVC

tubing such as Alpha #16

or comparable insulator

and connect to ground lug.
