Keyscan Technical Guide (PC109x - 04.12)
22
Control Board – Mounting Locations
The following diagrams illustrate the mounting positions for control board series CA250, CA4500, CA8500,
EC1500 and EC2500 units. Illustrations also show mounting positions for communication boards and output
control boards (OCB-8). Different door control board series – CA250, CA4500, and CA8500 – can be used
within the same communication loop.
Operating Environment – ACUs & ECUs
• Temperatures: 32°F to 120°F (0°C to 49°C)
• Humidity: 0% to 90% R.H., non-condensing
Important
Do not mount close to high voltage equipment.

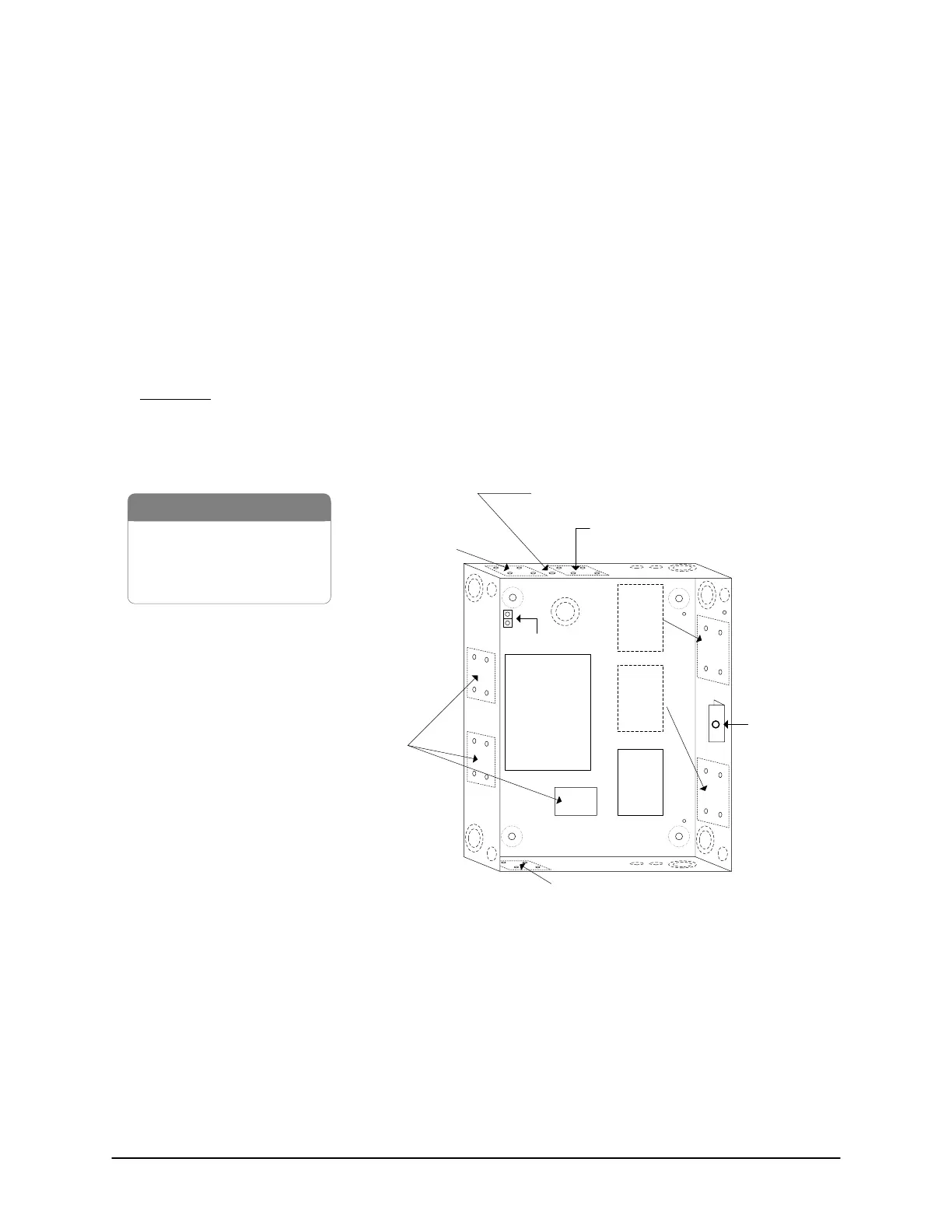

Figure 8 – CA250 with Board Mounting Positions
Front View
Cover not shown
Tamper
Switch
NETCOM*
or
CB-485
or
CB-485M
or
CPB-10-2
1 x CA250B control board
1 x OCB-8
1 x DPS-15 power supply
1 x metal enclosure
CA250B
Control
Board
OCB-8
Optional
OCB-8
Locations
Optional
OCB-8
Locations
Ground Lug
Wireless NETCOM or NETCOM
or MC9600
Wireless NETCOM antenna
* NETCOM - for side mount, use
terminal block only, not 9-pin
male connector.
**DPS-15 must be connected to
TB1 on control board.
PC109x
Parts
DPS-15
power supply
Optional location for DPS-15 power supply**
KI-00111E-07-11
