Keyscan EC2500 Series User Manual

Keyscan Technical Guide (PC109x - 04.12)
131

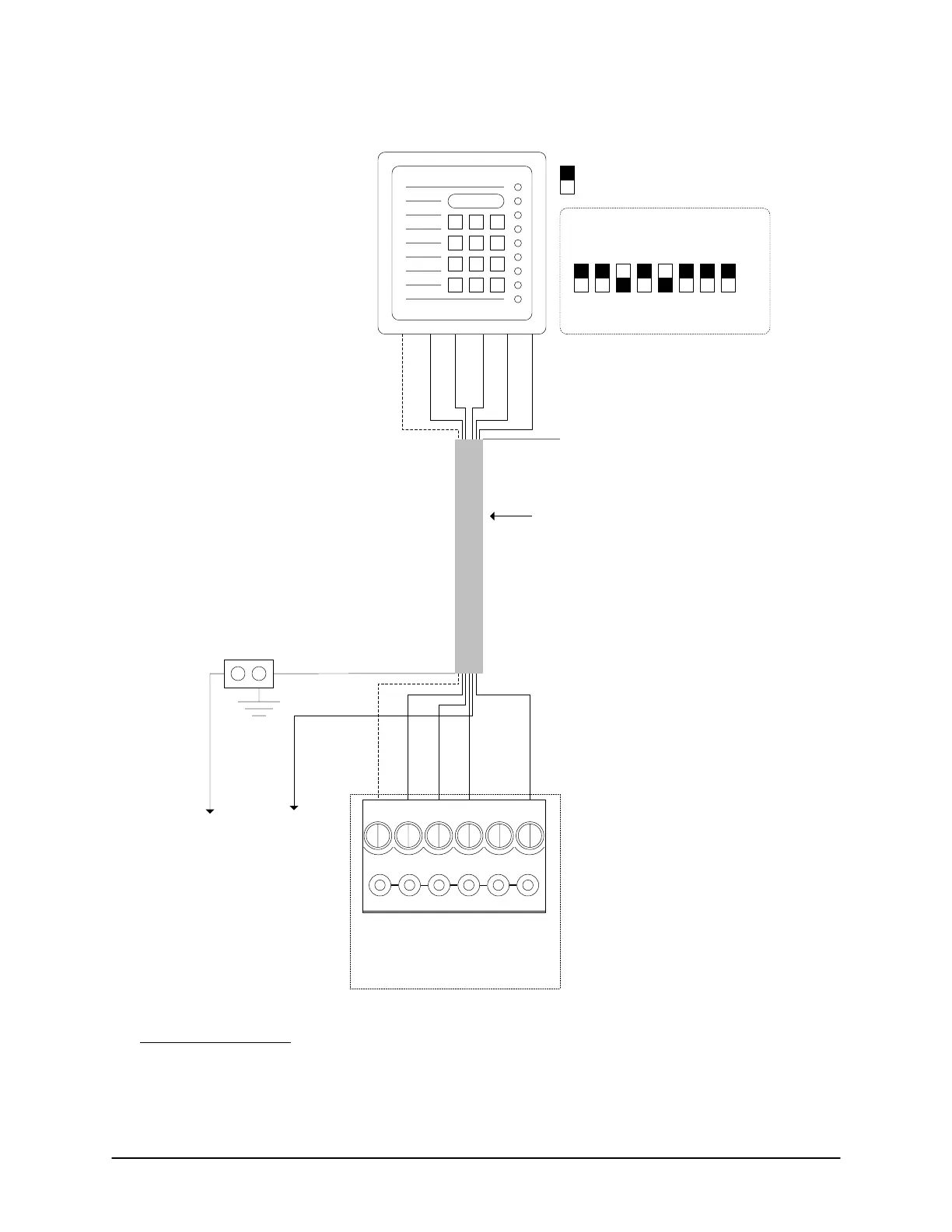

Figure 101 – HID 5355KP Wiring
LED* D1 (White) D0 (Green) PWR (Red) GND (Black)
Shield not
connected.
Isolate with
electrical tape.
Shield
ACU Ground
Lug
Red
+
VDC
Black
to
separate
DC power
supply
12345678
On
Off
Internal reader switches
HID-5355KP
SW1
1
4
7
*
2
5
8
0
3
6
9
#
Black = position of DIP switch head
6 conductors shielded 22 AWG
Maximum - 500 ft (152.4 m)
Reader terminal on control board
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
* To LED Green
terminal.
Pre-alert (Yellow
D1 (White) D0 (Green)
GND (Black)
LED
Pre-alert (Yellow)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Note - If Pre-alert is connected,
the reader cannot read any
HID 125 kHz-compatible card
during the pre-alert beep.
KI-00205E-07-11
Note on HID 5355 KP
Reader/Keypad/LED ordered as 00 (4 bit burst) example 5355AGK00 (Red/Green colour)
