Keyscan EC2500 Series - ACU Wiring Termination and Configuration; Terminating Wiring at the ACU

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

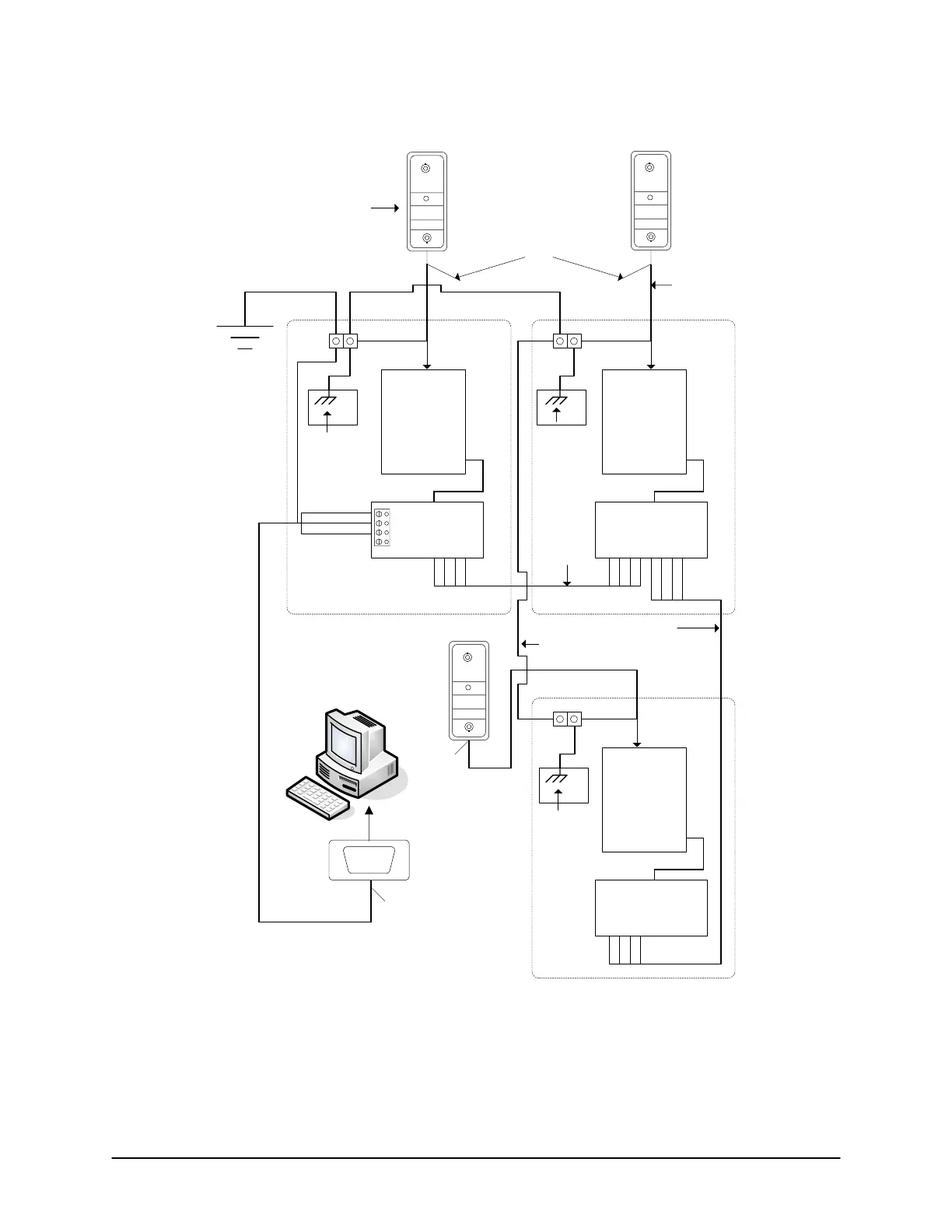

Figure 1 – Grounding Access Control Units and Cables with CB-485s

40-2322

Data Cable

Note

Connect ground lug to

single cold water pipe

ground point

Tape

back

shield

Reader

Tape

back

shield

CAT 5

Wiegand

Reader

Signal

Common

ground

wire

Tape back travel shield

CB-485

ACU 1

CB-485

RS232

Control Board

ACU 3

Control Board

ACU 2

Shield Shield

Shield

Chassis GND

on DPS15

GND

Green

Black

Red

RS-485 Terminal RS-485 Terminal

RS-485 Terminal

Note

CB-485's

support linear

topology only.

Do not connect

using star

topology.

Shield

KEYSCAN

CAT 5

Chassis

GND

DPS15

Chassis

GND

DPS15
