Keyscan Technical Guide (PC109x - 04.12)

165

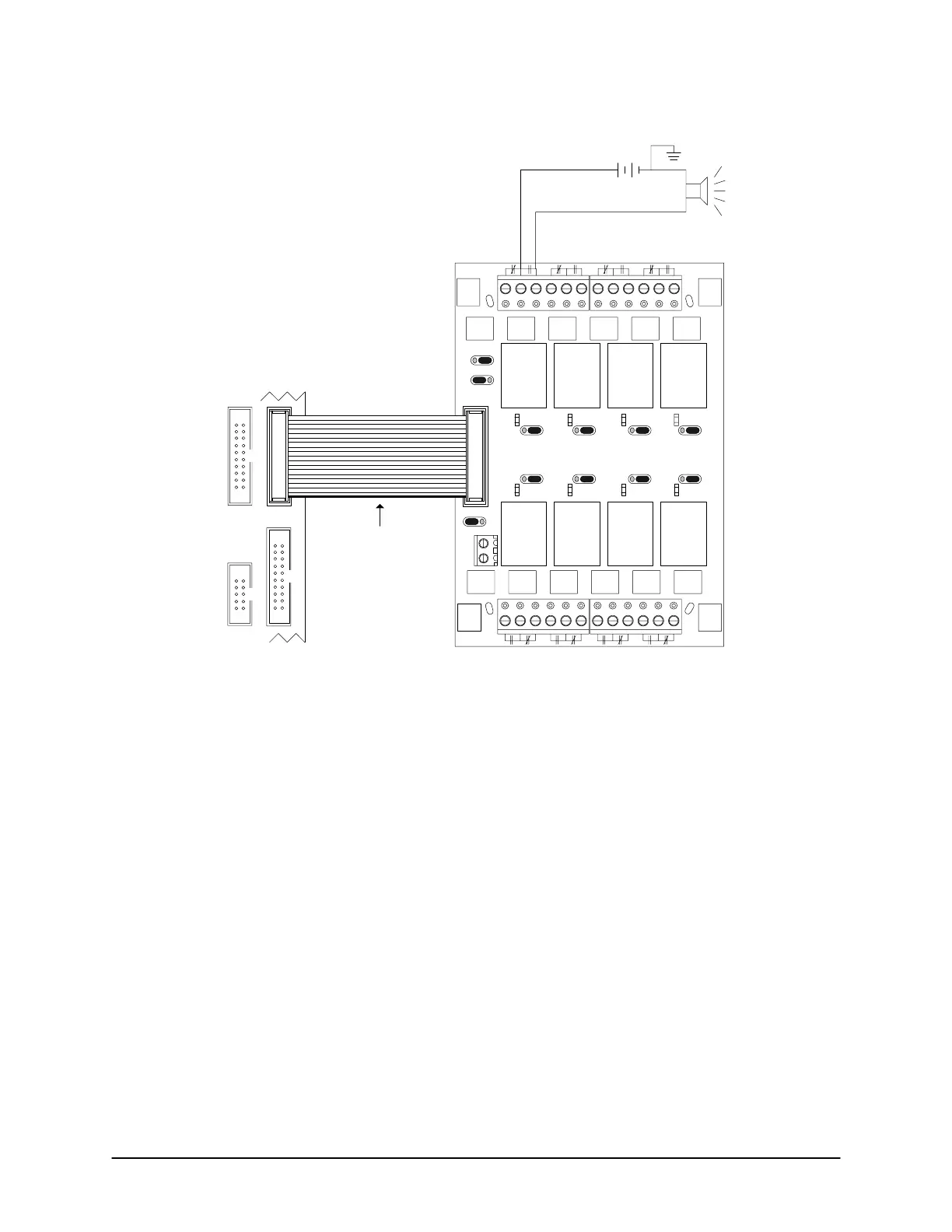

Figure 127 – Pre-alert Relay CA4500B/OCB-8 Connections

CA4500B

Control

Board

Cut View

OCB-8 ribbon cable

connects to

CONTROL 2.

Aux

Output

Aux

Output

Aux

Output

Aux

Output

Pre-

Alert

Output

Pre-

Alert

Output

Pre-

Alert

Output

J1 J2 J3 J4

J5J6J7

12V

ACU EXT

PWR

Normal

Reversed

K2 K3 K4

K5K6K7K8

GND

red stripe

OCB-8

Pre-

Alert

Output

CONTROL 1

CONTROL 4

OCB-8

powered

through

ribbon cable

with J9 set to

ACU PWR.

External pre-alert device

mounted at door.

DC Supply

KI-00231E-07-11
