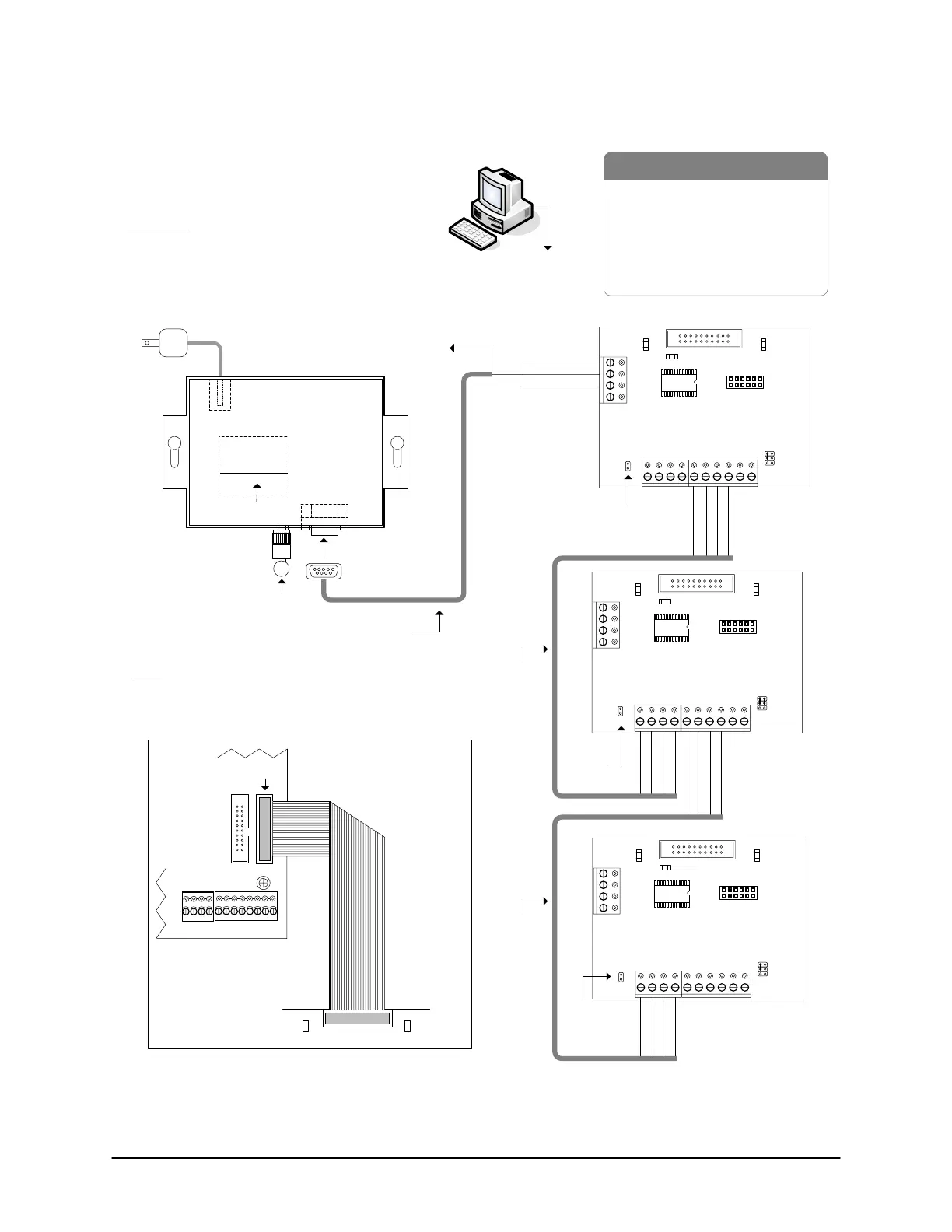

Figure 78 – Multiple ACU Communication - NETCOM2WH or NETCOM6WH/CB-485s
Brown White Brown White Green Green
Brown White Brown White Green Green
Brown White Brown White Green Green
Brown
White Brown
White Green
Green
- PC with network access
- CAT 5 Cable - 2 twisted pairs
- Control Board
-CB-485
- NETCOM2WH or NETCOM6WH
- RS-232 Data Cable
- Wireless Network Access Point
Host PC with
Communication Manager
Jumper ON
J1
(First & Last
CB-485)
Jumper
OFF J1
Jumper ON J1
(First & Last
CB-485)
CAT 5
CAT 5
to network
CAT 5
- RS-485 cable maximum 2000 ft (609 m) @ 9600 BPS between CB-485s
- may substitute equivalent to CAT 5 - 2 twisted pairs
- maximum baud rate is 56,000 BPS
Maximum wireless
range is 100 m (328 ft)
based on indoor open
air installation.
9-pin Male
Connector
NETCOM2WH
or
NETCOM6WH
Current
Draw
350 mA
MAC Address
Lantronix
WiPort
00-20-4A-96-49-BC
Green
Red
Black
RS-232 shielded 22 AWG cable
30 m (100 ft) max @ 9600 BPS
LED Legend
- RS-232 indicates 9-pin terminal connected
- RX LED indicates PC polling ACU/ECU
- TX LED indicates ACU/ECU replying to PC
- ON LED indicates unit receiving power
- WLAN Active indicates wireless data
transfer & wireless access point present
Antenna
Shield*
to
ground
lug
Parts List
Connect CB-485 ribbon cable
to CPB/CB MODULE terminal
on control board.
H1
Common AUX Inputs - E
CPB/CB MODULE
(COM4)
CB-485
Control
Board
(PC 109x)
TX
LED
RX
LED
Important
Jumper ON
J16 – G to
activate CPB/
CB MODULE
(H1) terminal.
J1
Jumpers
ON Run
CB-485
Current Draw - 110 mA
BRN
WHT
GRN
WHT
BRN
WHT
GRN
WHT
BLU
WHT
RS485 IN RS485 OUT M
+-+-+-+-
Run
Program
RX
LED
TX
LED
GND
RD
NC
TD
J1
Jumpers
ON Run
CB-485
Current Draw - 110 mA
BRN
WHT
GRN
WHT
BRN
WHT
GRN
WHT
BLU
WHT
RS485 IN RS485 OUT M
+-+-+-+-
Run
Program
RX
LED
TX
LED
GND
RD
NC
TD
J1
Jumpers
ON Run
CB-485
Current Draw - 110 mA
BRN
WHT
GRN
WHT
BRN
WHT
GRN
WHT
BLU
WHT
RS485 IN RS485 OUT M
+-+-+-+-
Run
Program
RX
LED
TX
LED
GND
RD
NC
TD
H2
KI-00181E-07-11
* Insulate shield
with PVC tubing
such as Alpha #16
or comparable
insulator.
