Keyscan Technical Guide (PC109x - 04.12)

129

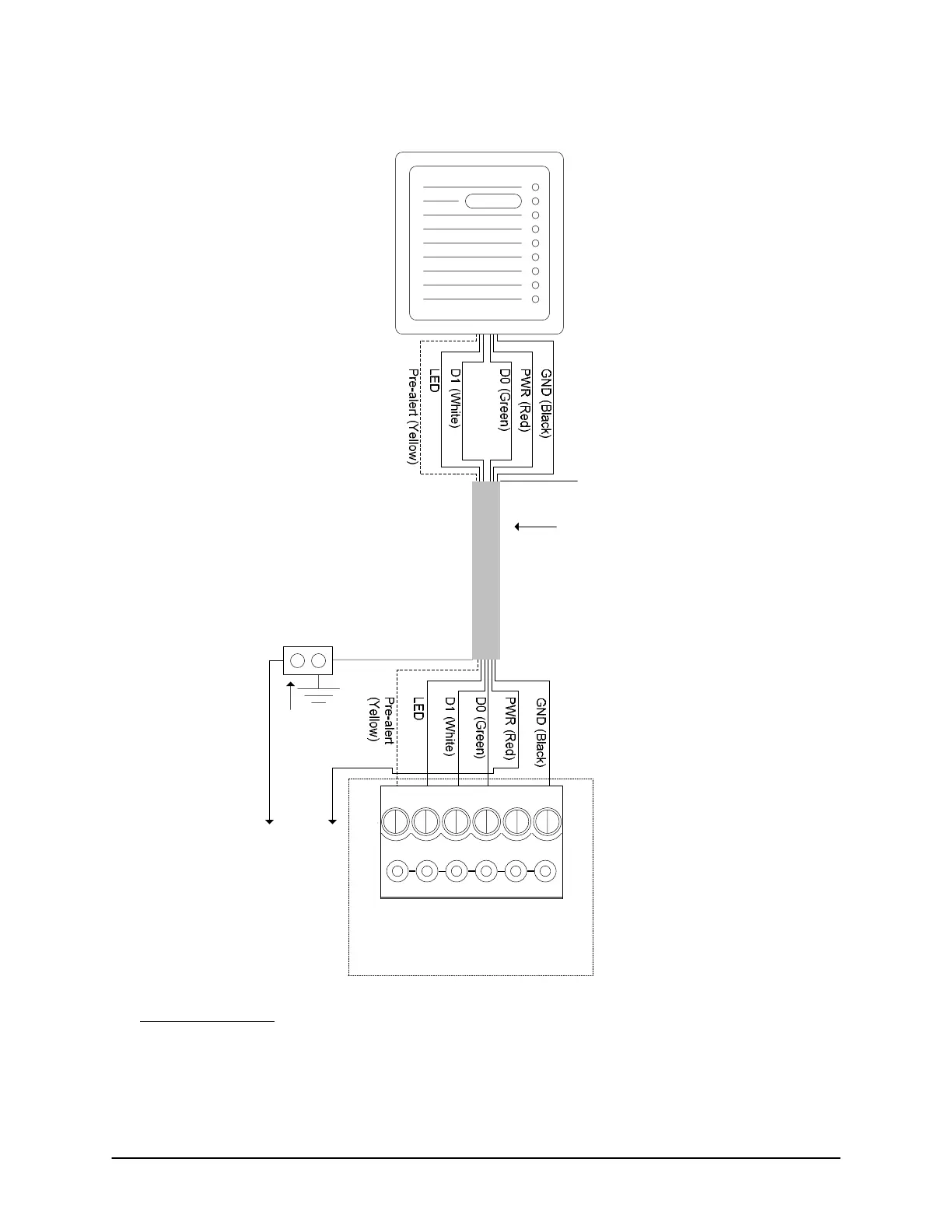

Figure 99 – HID 5355 Wiring

Shield not connected.

Isolate with electrical tape.

Shield

ACU Ground

Lug

Red

VDC

Black

to separate DC

power

supply

6 conductors shielded 22 AWG

500 ft (152.4 m) maximum

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

Yellow (Beeper) used for pre-alert

otherwise isolate and tape back.

If connecting external sound device,

see Pre-Alert Relay Option or refer to

ACU cut sheet enclosed with panel

for ACU/OCB8 relay assignments.

Note - If Pre-alert is connected,

the reader cannot read any

HID 125 kHz-compatible card

during the pre-alert beep.

KI-00203E-07-11

Notes on HID 5355

The HID 5355 is suitable for indoor and outdoor use. Maximum read range at 12VDC – ProxCard II card is

9" (22 cm) – ISOProxII card is 8" (20 cm).
