Keyscan EC2500 Series - Figure 4 - Mount and Fasten Pc109 X Control Board to 3;8 Male;Female Standoffs

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

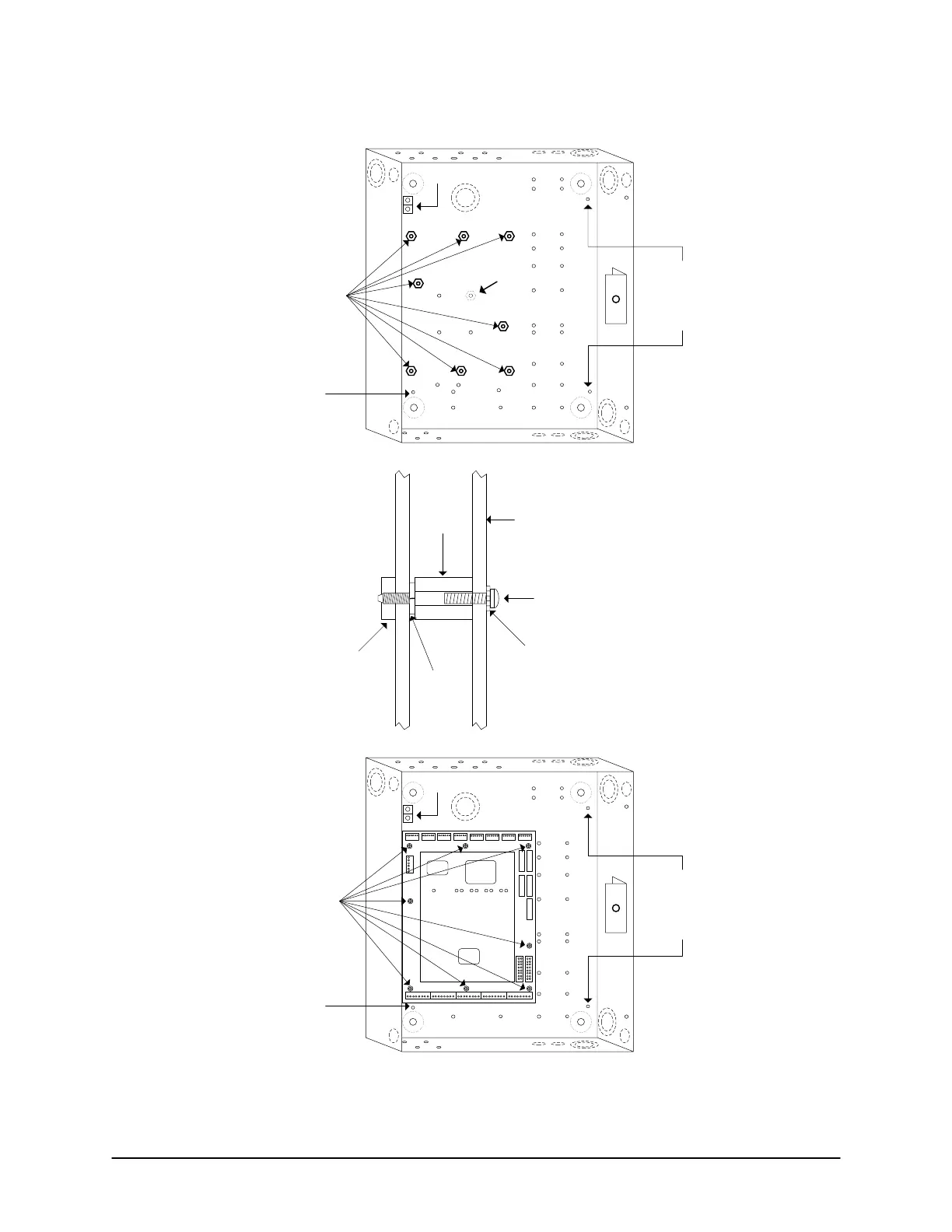

Figure 4 – Mount and Fasten PC109x Control Board to 3/8" Male/Female Standoffs

Ground Lug

Side View

Self-clinching

nut on back of

enclosure.

Split Ring

Lock-

washer

3/8" Male/

Female

Hex

Standoff

Internal

Tooth

Star

Washer

¼” Long Screw

Control Board

Stand-off

locations on

PC109x control

board

Ground Lug

Front View –

Cover removed

(diagram not to scale)

Alternate

Ground

Lug

Mounts

3/8" male/female hex

standoff locations for

mounting PC109x

control board.

Front View –

Cover removed

(diagram not to scale)

Alternate

Ground Lug

Mount

Alternate

Ground

Lug

Mounts

Alternate

Ground Lug

Mount

PC109x

Spacer

PC109x
