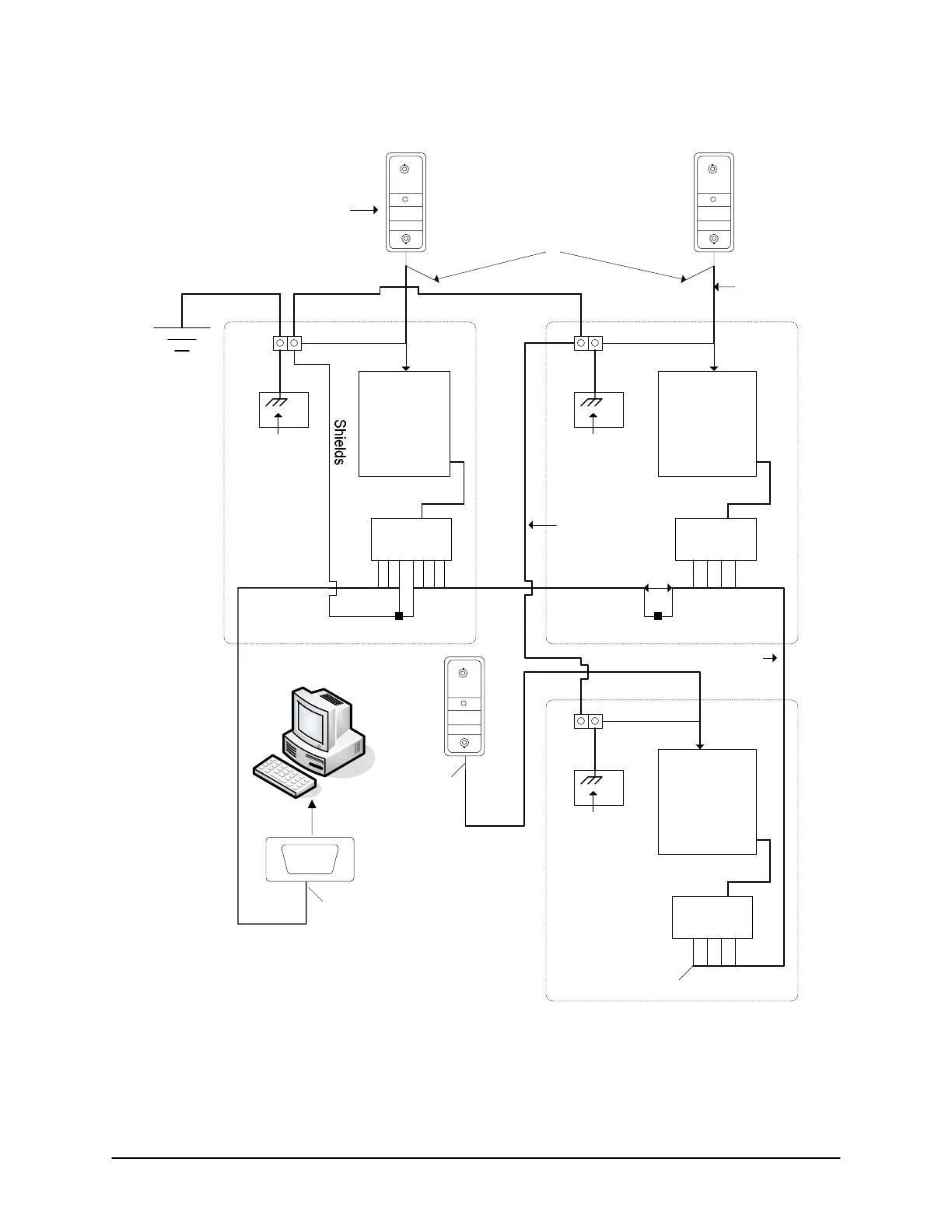

Figure 2 – Grounding Access Control Units and Cables with CPB-10-2s

40-2322

Data Cable

Note

Connect ground lug to single

cold water pipe ground point

Shields

Tape

back

shield

Tape back shield at end of line

Reader

Tape

back

shield

EIA/TIA-562

Wiegand

Reader

Signal

Common

ground

wire

Tape back travel

shields

ACU 1

GRTBGRT BGRT

CPB-10-2

BGRT

RS232

Shields

Control Board

ACU 3

Control Board

ACU 2

Shield Shield

Shield

KEYSCAN KEYSCAN

KEYSCAN

Chassis

GND

on DPS15

Chassis

GND

on DPS15

CPB-10-2 CPB-10-2

Chassis

GND

on DPS15

KI-00102E-07-11
