Figure 85 – Control Board Communication Test Points

GND

RS-232 (COM4)

Control Board

(PC 109x)

DCD

DTR

CTS

IOCB (COM1)

KI-00194E-07-11

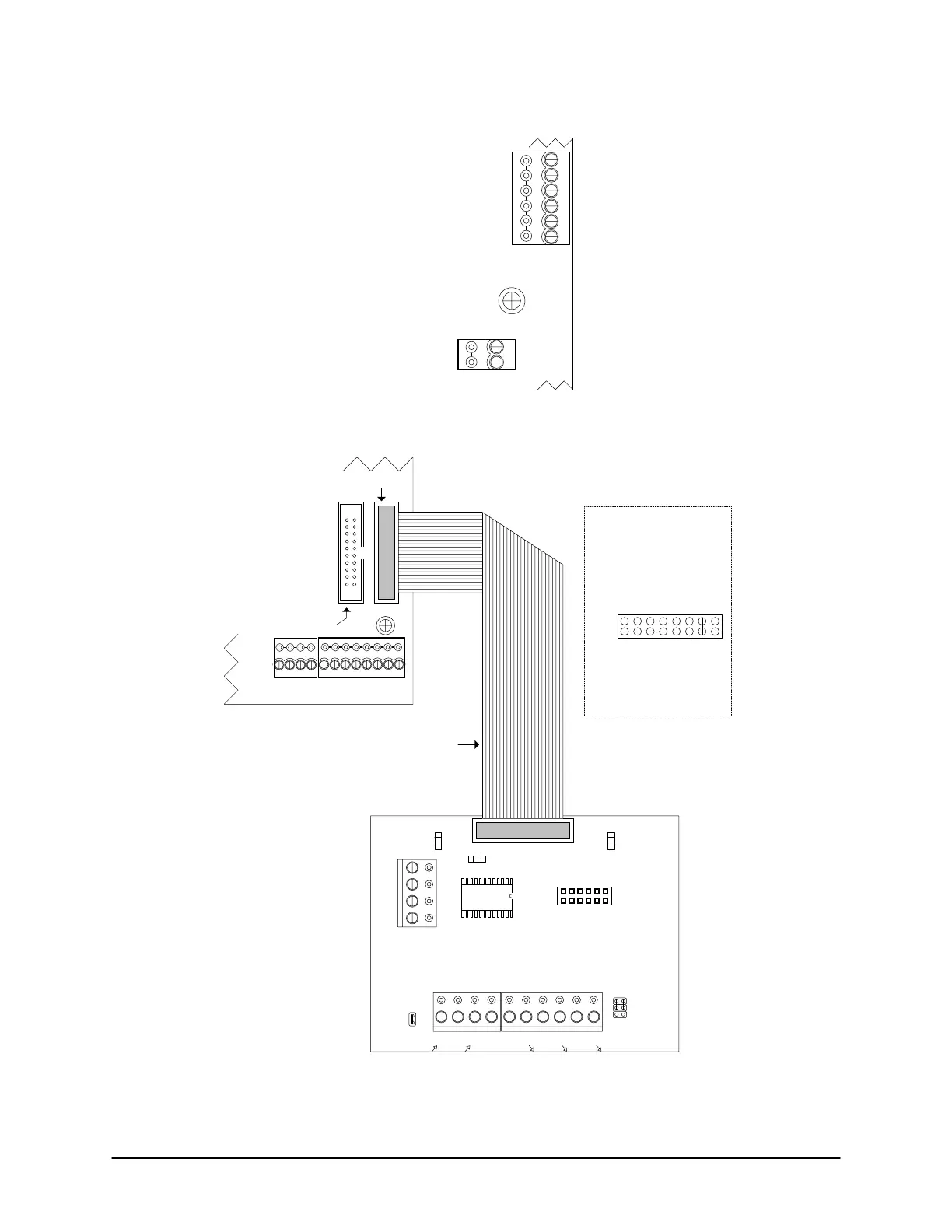

Figure 86 – CB-485 Communication Test Points

red stripe

Ribbon cable connects

from CB-485 to

H1 on control board

Control Board

(PC 109x)

Common AUX Inputs - E

2322

2120191817

CPB/CB MODULE

(COM4)

ECM/GCM MODULE

(COM2 & COM3)

Jumper ON J16-G to

activate CPB/CB

MODULE (H1) terminal.

SYSTEM CONFIG.

J16 - HGABCDEF

+ M -

RS485

OUT

BLU WHTWHTBRNWHTGRNWHTGRNWHTBRN

RS485

+ TX - + RX - + TX - + RX -

RS232

GND

GRN

BLK

RED

LED

CB-485

B LED

LED

RUN

PROGRAM

Current Draw – 110 mA

KI-00195E-07-11
