Keyscan EC2500 Series - Figure 110 - WSSKP-1 Keypad Connection

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

142

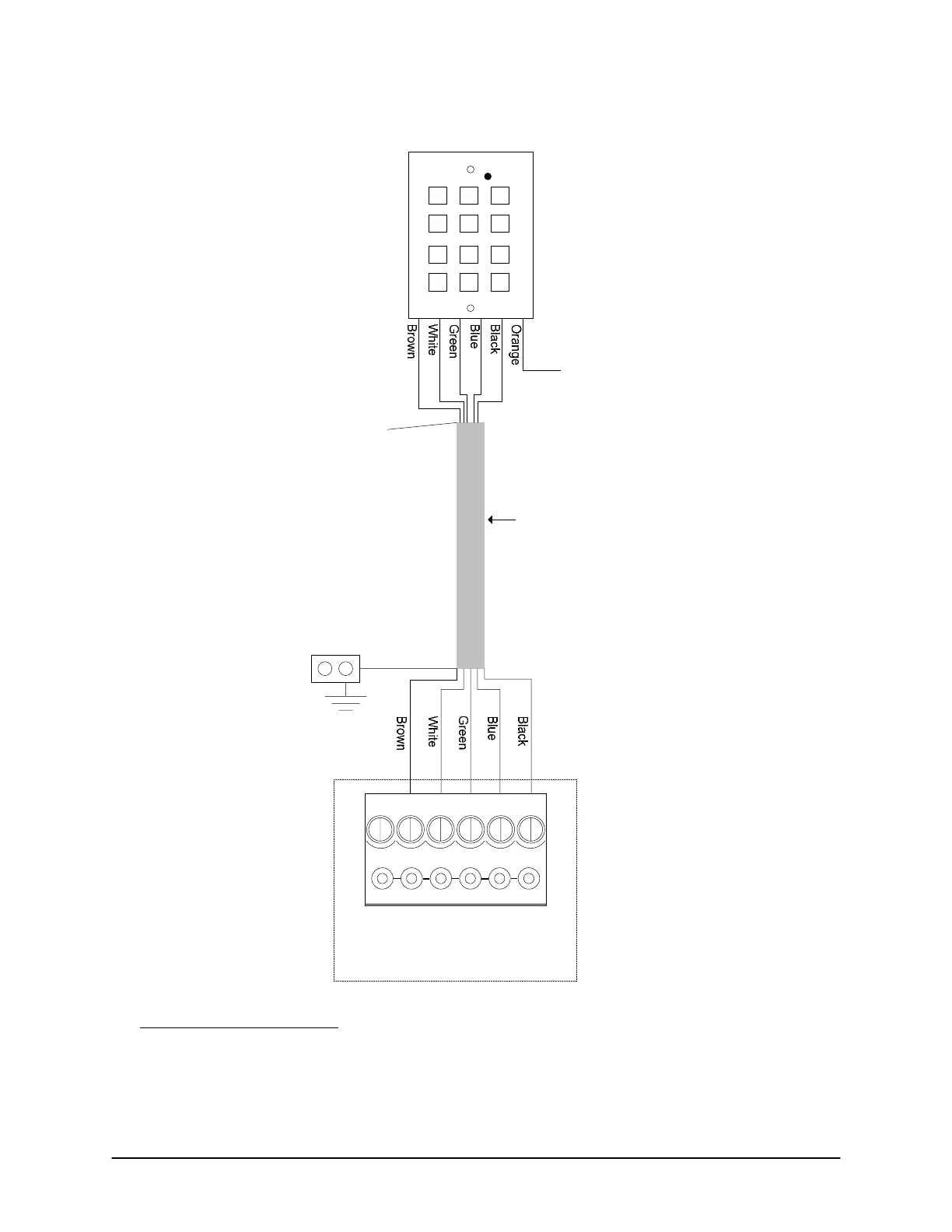

Figure 110 – WSSKP-1 Keypad Connection

Shield not connected.

Isolate with

electrical tape.

Shield

ACU Ground

Lug

6 conductors shielded 22 AWG

Maximum - 500 ft (152.4 m)

to third party

device or tape

back.

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

KI-00214E-07-11

Diagram Notes on WSSKP-1

Orange wire in keypad is used for negative digital trigger for a third party device such as a relay or a lock.

If using the orange wire, it is triggered from local PIN stored in keypad memory. The keypad memory

stores 28 Personal Identification Numbers. If orange wire is not used, tape back. See instructions with

WSSKP-1 keypad for connections with third party devices.
