Keyscan Technical Guide (PC109x - 04.12)
128

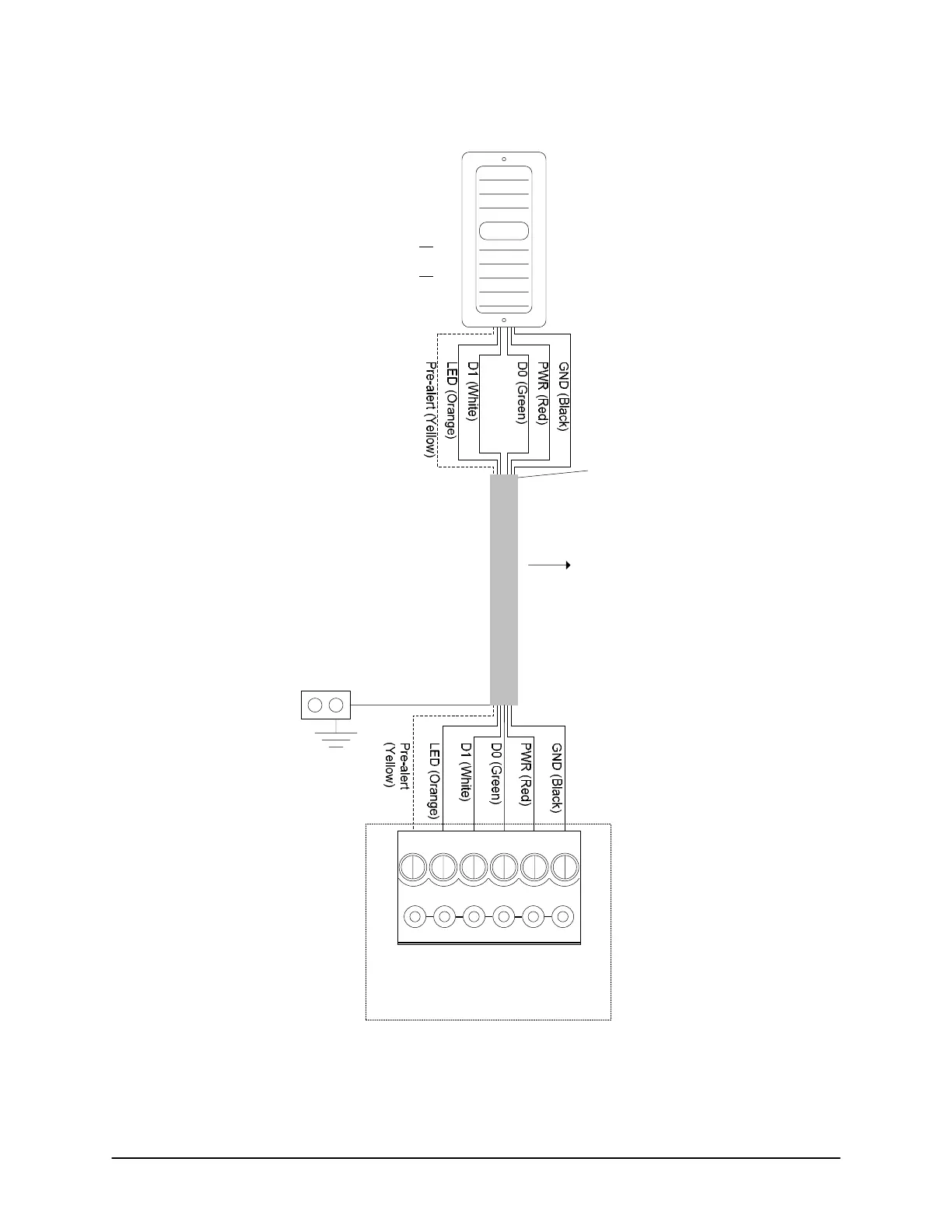

Figure 98 – HID 5365 / 6005 Wiring
Shield not
connected.
Isolate with electrical
tape.
6 conductors shielded 22 AWG
Maximum - 500 ft (152.4 m)
HID-5365
HID-6005
with 00 LED
Examples
5365EGP00
or
6005BGB00
Shield
ACU
Ground
Lug
Reader terminal on control board
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Note - If Pre-alert is connected,
the reader cannot read any
HID 125 kHz-compatible card
during the pre-alert beep.
