Keyscan Technical Guide (PC109x - 04.12)

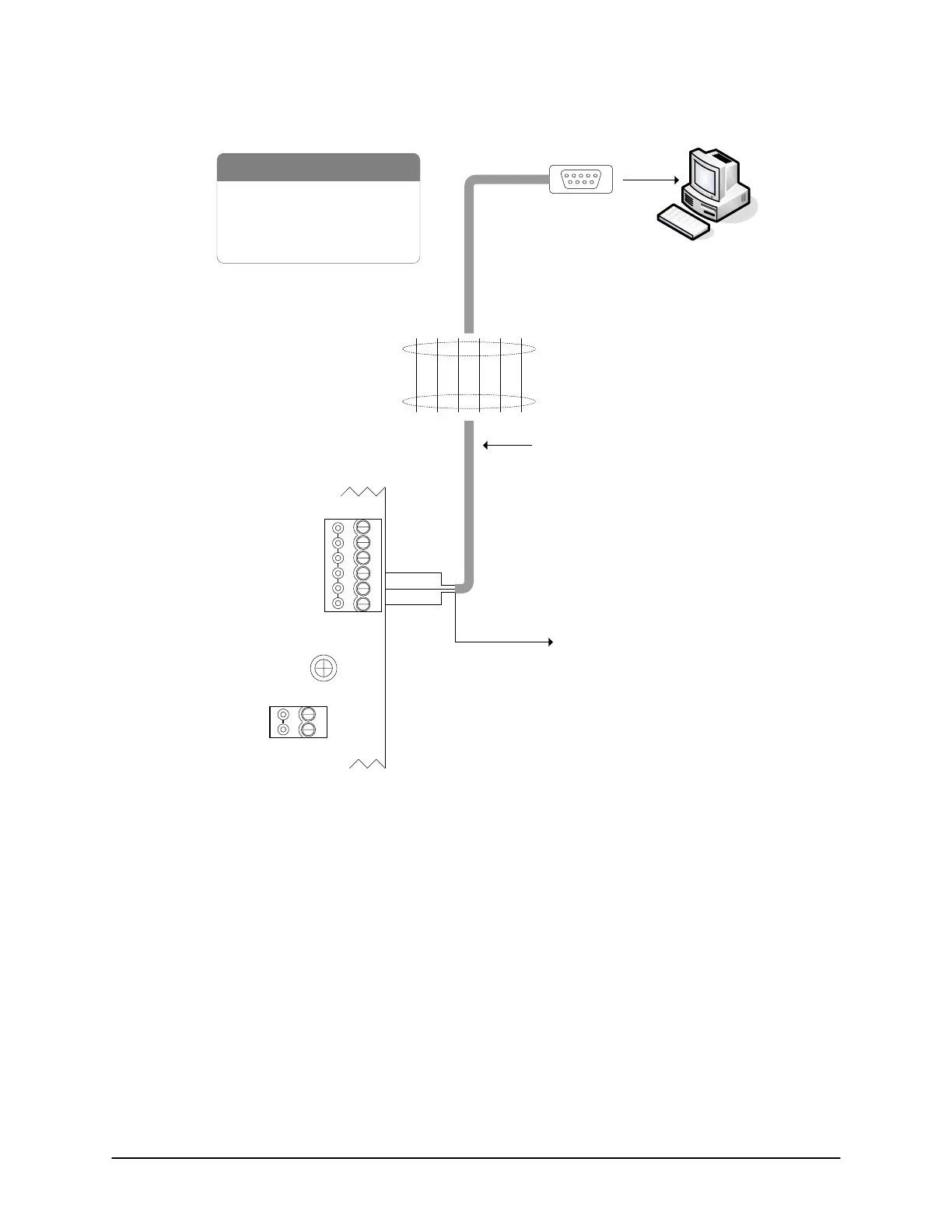

Figure 50 – Single ACU Communication - Direct Serial

to Com Port on

PC with

Communication

Manager

GND

RS-232 (COM4)

Control Board

(PC 109x)

Green

Black

Brown & White not used.

Tape back separately.

Brown

Shield

Green

Black

Red

White

RS-232 5 conductor

22 AWG shielded cable

Maximum - 100 Ft (30 M)

DCD

DTR

CTS

Red

to ground lug

Shield*

Parts List

- RS-232 Data Cable

- Control Board

- PC (requires serial port)

IOCB (COM1)

Ensure J16 – F & G

Jumpers OFF

KI-00153E-07-11

* Insulate shield with PVC tubing such as Alpha #16 or

comparable insulator and connect to ground lug.
