Keyscan Technical Guide (PC109x - 04.12)

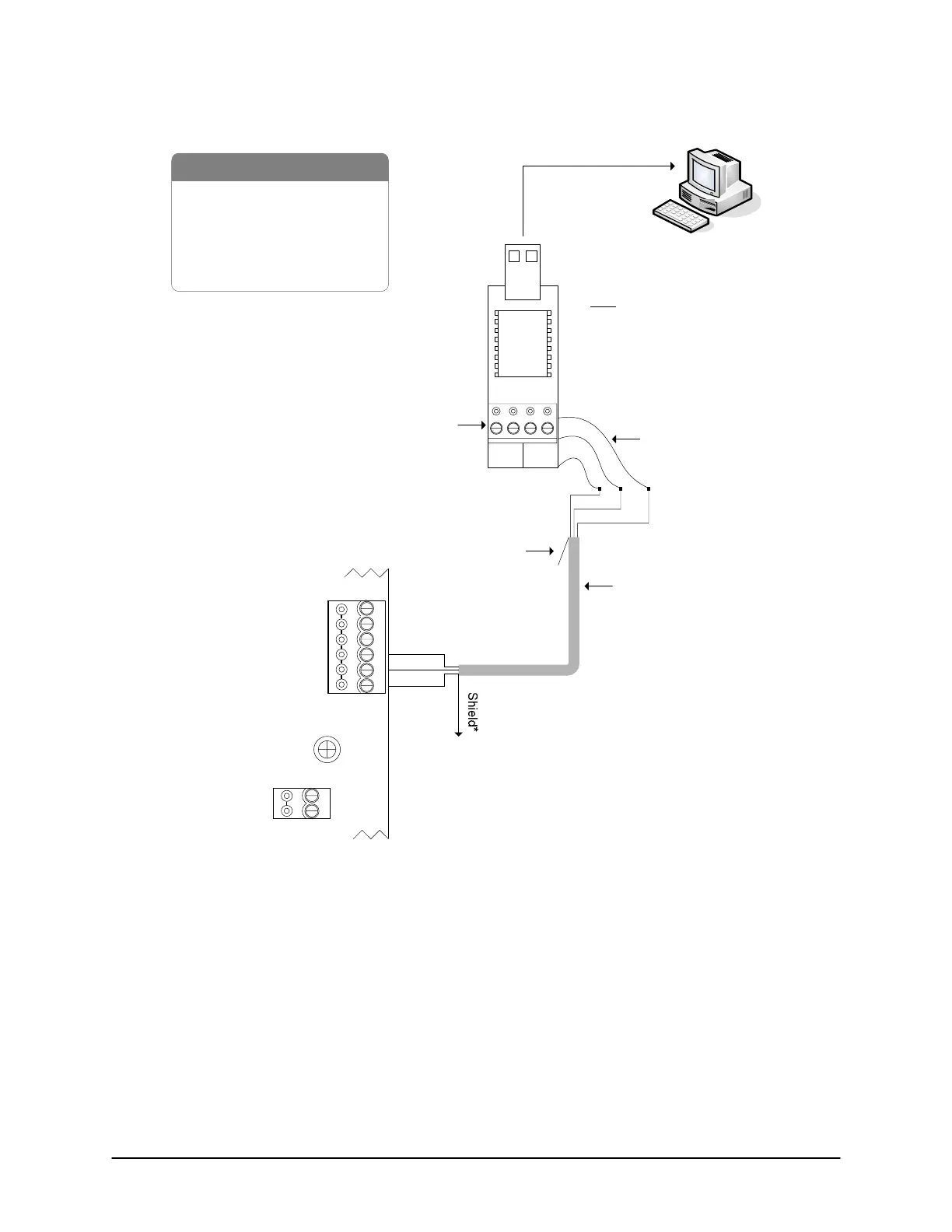

Figure 53 – Single ACU Communication - USB Adaptor

PC with

Communication

Manager

- USB Adaptor (USB-SER)

- RS-232 Data Cable

- Control Board

- PC (requires USB port)

- USB extension cable optional

BRNWHTGRN WHT

+ TX - + RX -

485 OUT

485 IN

To USB port on PC

(may require USB

extender cable)

485 terminal

block not used

use 3 loose

RS-232 wires

tape

back

shield

Note

USB communication is slower

than direct serial or NETCOM

communication.

Do not connect USB adaptor to

modem.

RS-232

22 AWG shielded cable

Maximum - 100 ft (30 M)

Green

Black

Red

Unused conductors are

taped back separately.

Unused conductors are

taped back separately.

GND

RS-232 (COM4)

Control Board

(PC 109x)

Green

Black

DCD

DTR

CTS

Red

To ground lug

IOCB (COM1)

Parts List

Ensure J16 – F & G

Jumpers OFF

KI-00156E-07-11

* Insulate shield with PVC tubing such as Alpha #16 or

comparable insulator and connect to ground lug.
