Keyscan EC2500 Series - Figure 80 - Multiple ACU Communication - NETCOM2 WH or NETCOM6 WH; 1 Per ACU

Keyscan Technical Guide (PC109x - 04.12)
103

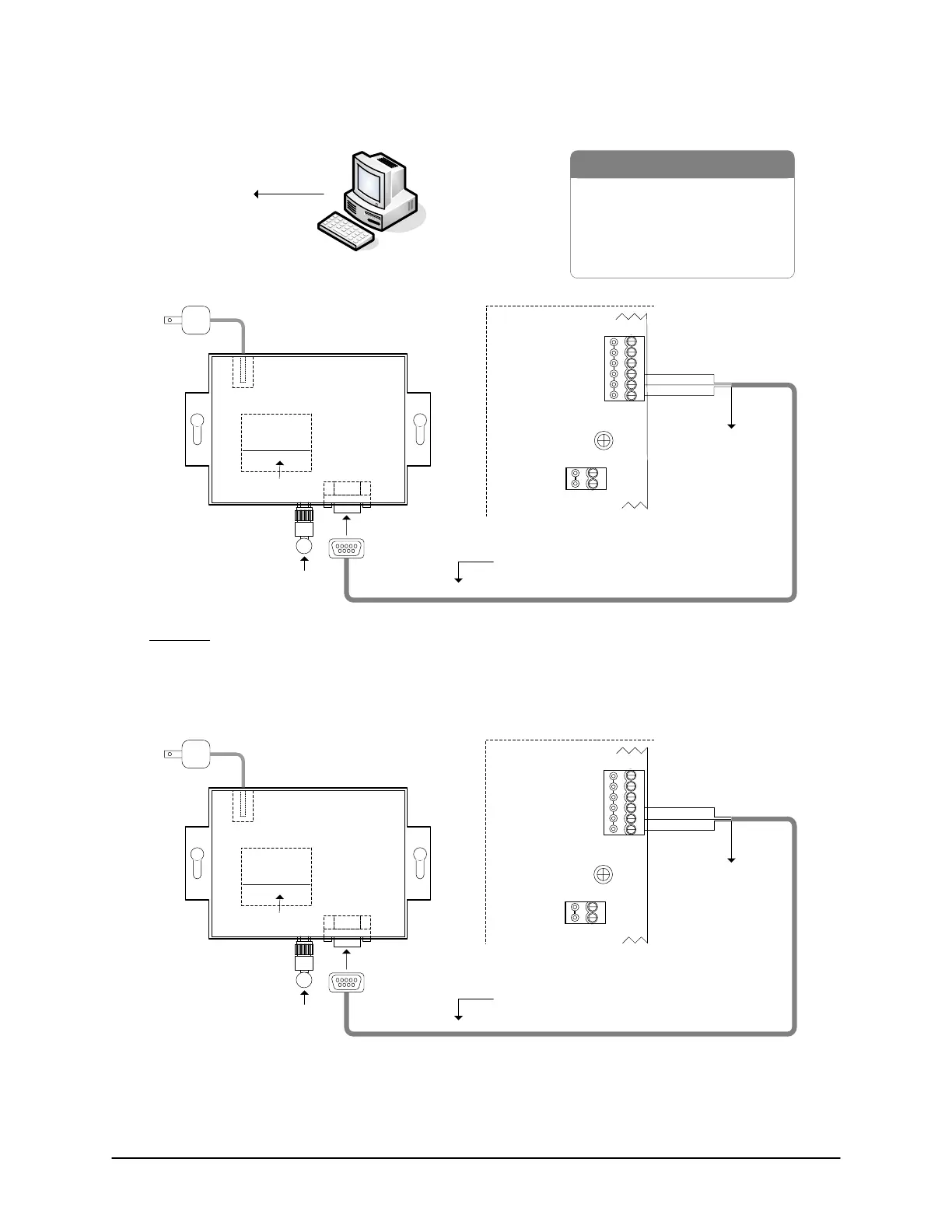

Figure 80 – Multiple ACU Communication - NETCOM2WH or NETCOM6WH / 1 per ACU
- PC with network connection
- Control Board
- NETCOM2WH or NETCOM6WH
- RS-232 Data Cable
- Wireless Network Access Point
Host PC with
Communication
Manager
RS-232 - 22 AWG shielded cable
100 ft (30 m) maximum @ 9600 BPS
to network
12 VDC Power Adaptor
LED Legend
- RS-232 indicates 9-pin terminal connected
- RX LED indicates PC polling ACU/ECU
- TX LED indicates ACU/ECU replying to PC
- ON LED indicates unit receiving power
- WLAN Active indicates wireless data transfer & wireless access point present
Maximum wireless range
is 100 m (328 ft) based on
indoor open air
installation.
9-pin Male
Connector
NETCOM2WH
or
NETCOM6WH
Current
Draw
350 mA
MAC Address
Lantronix
WiPort
00-20-4A-96-49-BC
Antenna
12 VDC Power Adaptor
Maximum wireless range
is 100 m (328 ft) based on
indoor open air
installation.
9-pin Male
Connector
NETCOM2WH
or
NETCOM6WH
Current
Draw
350 mA
MAC Address
Lantronix
WiPort
00-20-4A-96-49-BC
Antenna
Brown & White not
used. Tape back
separately.
Green
Red
Black
GND
RS-232 (COM4)
Control Board
(PC 109x)
TD
RD
DCD
DTR
CTS
IOCB (COM1)
TX
RX
Brown & White not
used. Tape back
separately.
Green
Red
Black
GND
RS-232 (COM4)
Control Board
(PC 109x)
TD
RD
DCD
DTR
CTS
IOCB (COM1)
TX
RX
Parts List
Ensure J16 - F & G
Jumpers OFF
Ensure J16 - F & G
Jumpers OFF
Shield*
to ground lug
Shield*
to ground lug
RS-232 - 22 AWG shielded cable
100 ft (30 m) maximum @ 9600 BPS
KI-00183E-07-11
* Insulate shield with PVC tubing such
as Alpha #16 or comparable insulator.
