Keyscan Technical Guide (PC109x - 04.12)
86

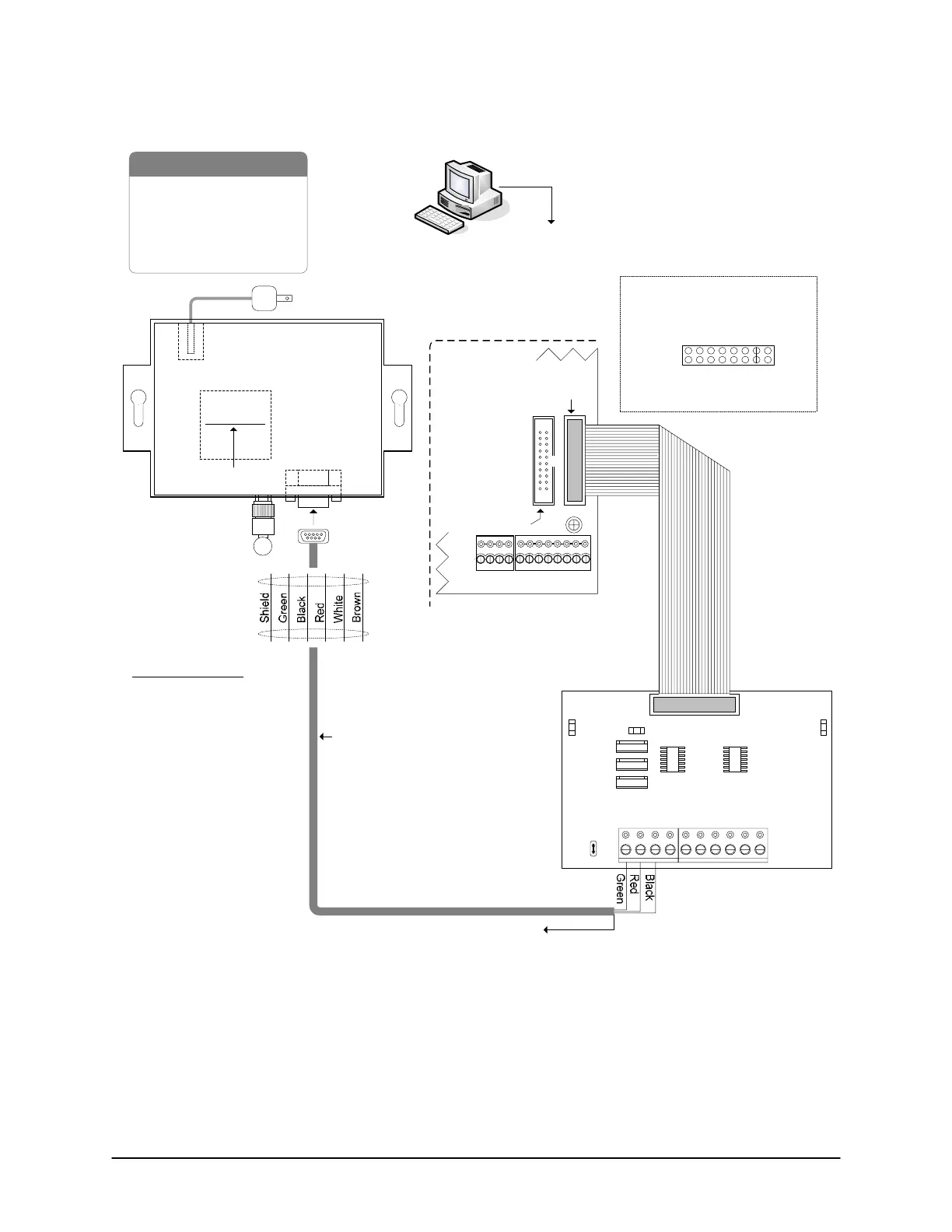

Figure 63 – Single ACU Communication - NETCOM2WH or NETCOM6WH/CPB-10-2
Host PC with
Communication
Manager
- RS-232 Data Cable
- Control Board
- PC with connection to network
- CPB-10-2
- NETCOM2WH or NETCOM6WH
- Wireless Network Access Point
RS-232
22 AWG shielded cable
Maximum - 100 ft (30 m) @ 9600 BPS
to
network
Brown & White not
used and taped back.
9-pin Male
Connector
NETCOM2WH
or
NETCOM6WH
Current Draw
350 mA
MAC Address
Lantronix WiPort
00-20-4A-96-49-BC
Antenna
NETCOM LED Legend
- RS-232 indicates 9-pin
terminal connected
- RX indicates PC polling ACU/
ECU
- TX indicates ACU/ECU
replying to PC
- ON indicates unit receiving
power
- WLAN Active indicates wireless
data transfer & wireless access
point present
12 VDC
Power Adaptor
Maximum wireless
range is 100 m (328
ft) based on indoor
open air installation.
Shield*
to ground lug
Parts List
Control Board
(PC 109x)
Common
AUX Inputs - E
24
2322
2120191817
CPB/CB MODULE
(COM4)
Connect CPB-10-2 ribbon cable to
CPB/CB MODULE on control board.
Jumper ON J16-G to activate
CPB/CB MODULE (H1).
SYSTEM CONFIG.
J16 - H
GABCDEF
H1
Jumper
ON
J1
GND
CPB-10-2
J1
RX LEDTX LED
TD RD DCD GND R T B DTR CTS
Current Draw - 40 mA
H2
ECM/GCM MODULE
(COM2 & COM3)
KI-00166E-07-11
* Insulate shield with PVC
tubing such as Alpha #16
or comparable insulator
and connect to ground lug.
To Next Page
