Keyscan EC2500 Series - Figure 82 - Multiple ACU Communication

To Next Page

To Previous Page

Keyscan Technical Guide (PC109x - 04.12)

105

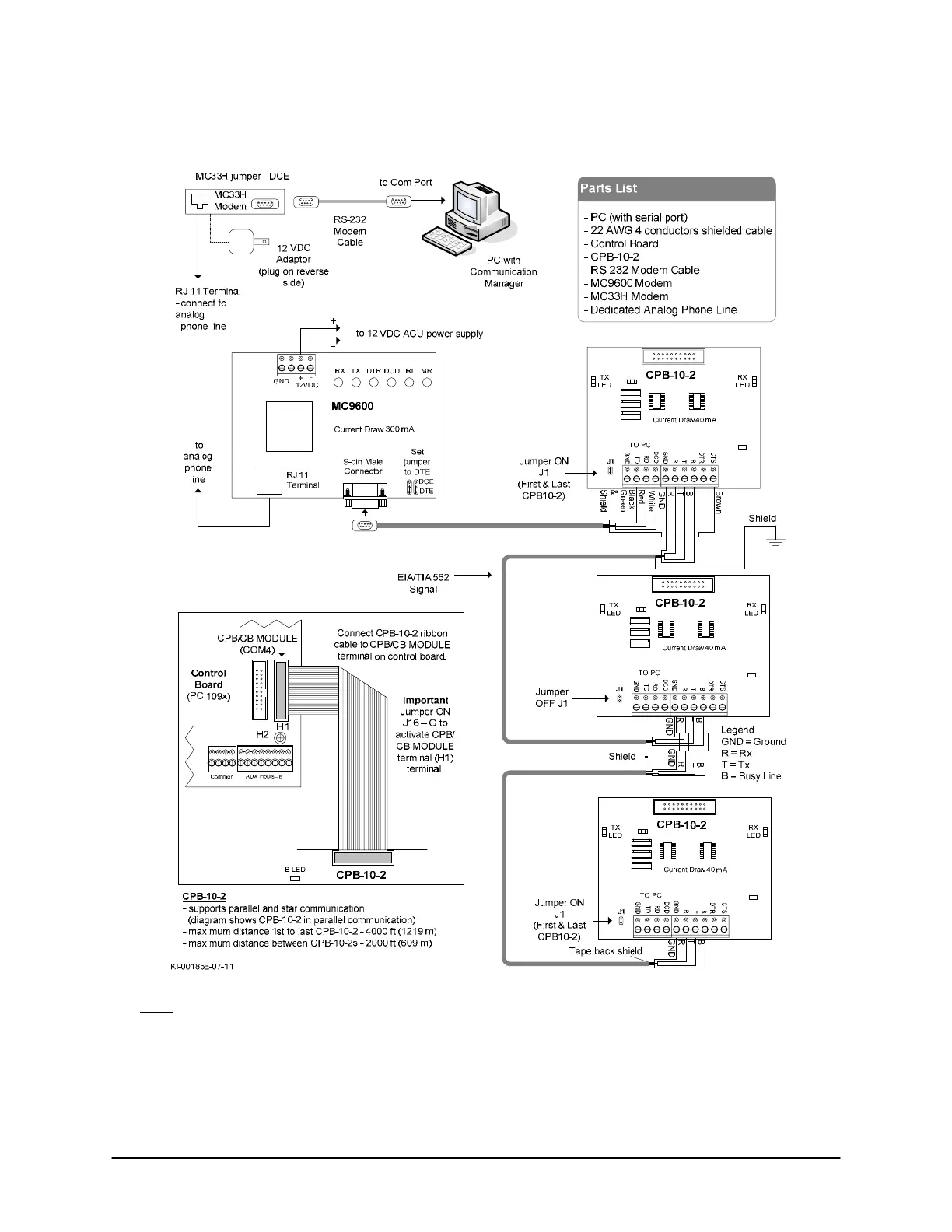

Figure 82 – Multiple ACU Communication - MC9600/CPB-10-2/MC33H

See Communication Jumper J16 for Multiple ACUs with Modem/CPB-10-2 Configuration on next page.

Note

If the MC9600 modem is mounted in the metal enclosure, the shield of the serial cable may be connected

to GND as shown. If the MC9600 modem is mounted outside the metal enclosure, the shield must be

insulated and connected directly to the metal enclosure ground lug. See Grounding Communication Cable

Shield.
