Configuring Measurement Conditions (Display and Function Related Settings)
LIMIT TABLE SETUP Page
4-

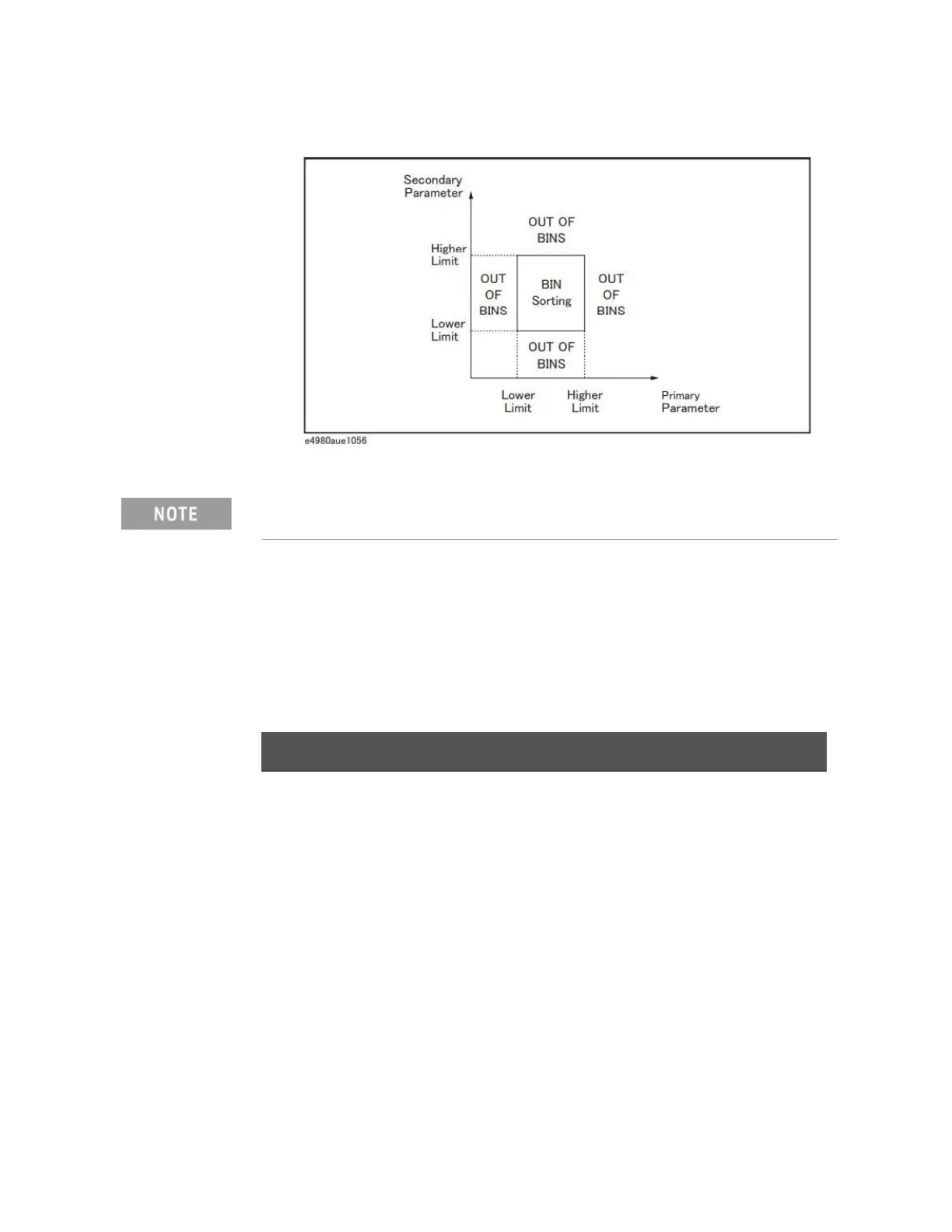

Figure 4-19 Auxiliary bin turned on
To turn on or off the auxiliary bin:
Step 1. Press [Meas Setup].
Step 2. Press the LIMIT TABLE softkey.
Step 3. Using the cursor keys, select the AUX field.
Step 4. Turn on or off the auxiliary (AUX) bin by pressing the appropriate softkey:
The upper limit and lower limit of the secondary parameter after preset are
set to 9.9E37 and -9.9E37, respectively.
Softkey Description
ON Turns ON the auxiliary (AUX) bin.
OFF Turns OFF the auxiliary (AUX) bin.
To Next Page
