Screen Area: Names and Functions of Parts
2-
Screen Area: Names and Functions of Parts
This section describes the names and functions of parts on the E4980A/AL’s
LCD screen.

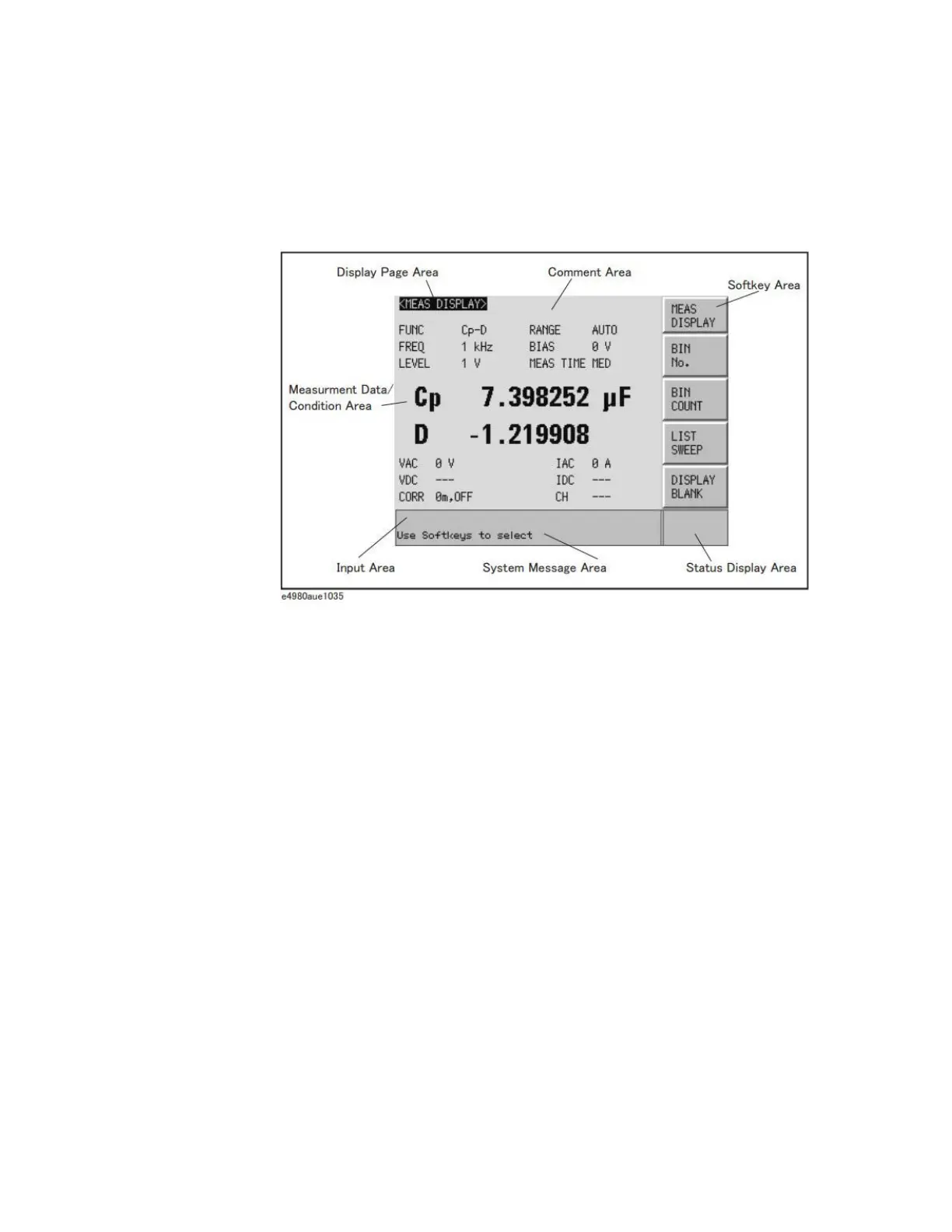

Figure 2-3 Screen display
1. Display Page Area
Shows a display page name of the current display page. On each display page,
three lines are collected together as one area.
2. Comment Line Area
You can input up to 30 characters in ASCII format by using the front panel or
the DISPlay:LINE command of the GPIB command. The first 22 characters are
displayed in this area.
This area is displayed on the following display pages.
• MEAS DISPLAY page
• BIN No. DISPLAY page
• BIN COUNT DISPLAY page
• LIST SWEEP DISPLAY page
• MEAS SETUP page
For the input method in the comment line, refer to “MEAS SETUP page” on
page 88.
