Keysight E4980AL - How to Remove the Handle

Keysight E4980A/AL Precision LCR Meter 23
Unpacking and Preparation
How to Remove the Handle
1-
How to Remove the Handle
A handle kit is attached to the E4980A/AL. When using the E4980A/AL with
the rack-mount kit, remove the handle according to the following steps.

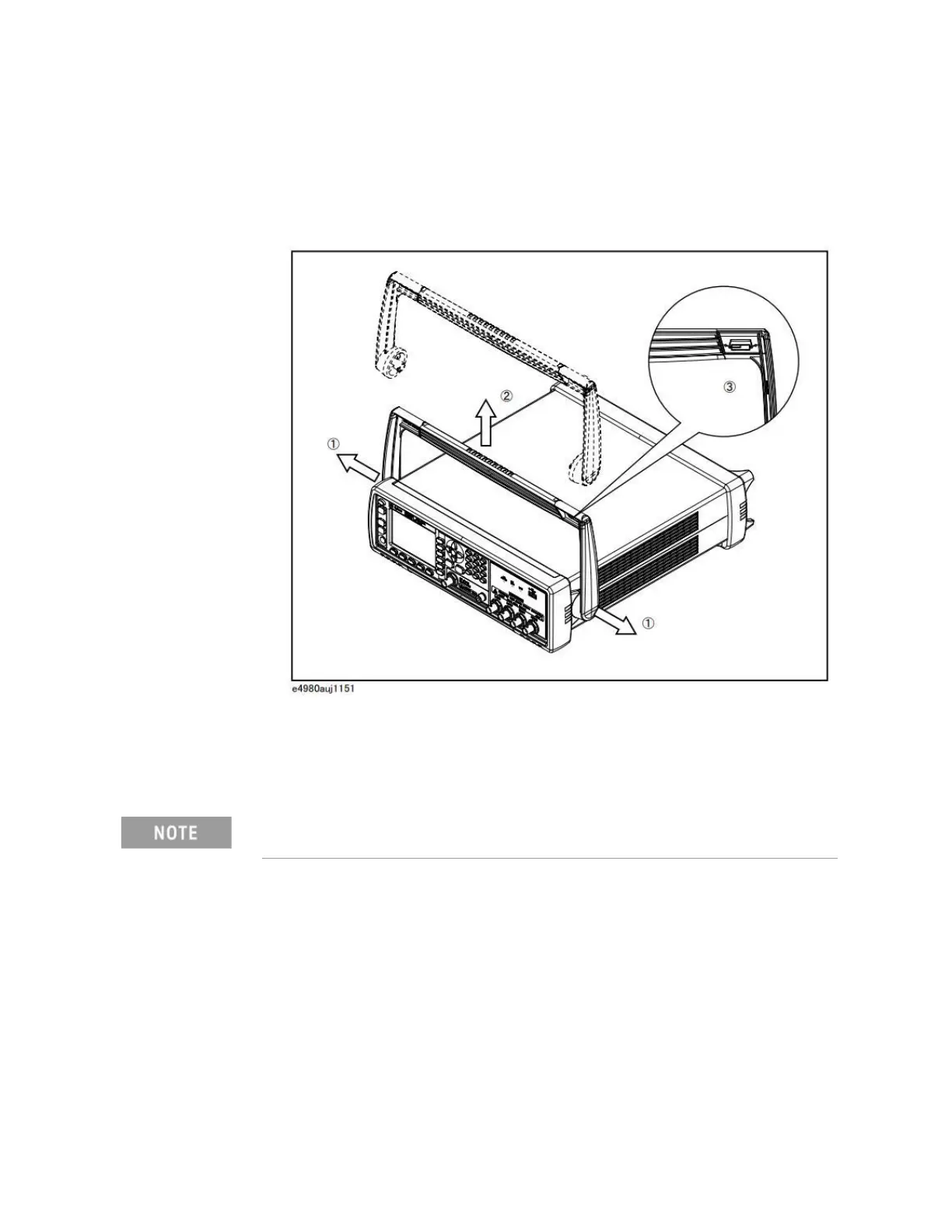

Figure 1-3 How to remove the handle
Step 1. Lift the handle perpendicular to the unit while pulling it in the direction of 1.
Step 2. While pulling the handle in the direction of 1, lift towards 2.
Install the handle with 3 facing toward the front. Installing the handle the
other way around may damage it.
