Keysight E4980A/AL Precision LCR Meter 273
Overview of Remote Control
Status Byte
8-
Operation Status Register Structure
The operation status register group provides reports on operation status by
summarizing multiple events into a summary message (bit 7) of the status
byte. The structure of the operation status register group is shown in Figure
8-28 below. This group consists of the following three registers.
• Operation status condition register
• Operation status event register
• Operation status event enable register

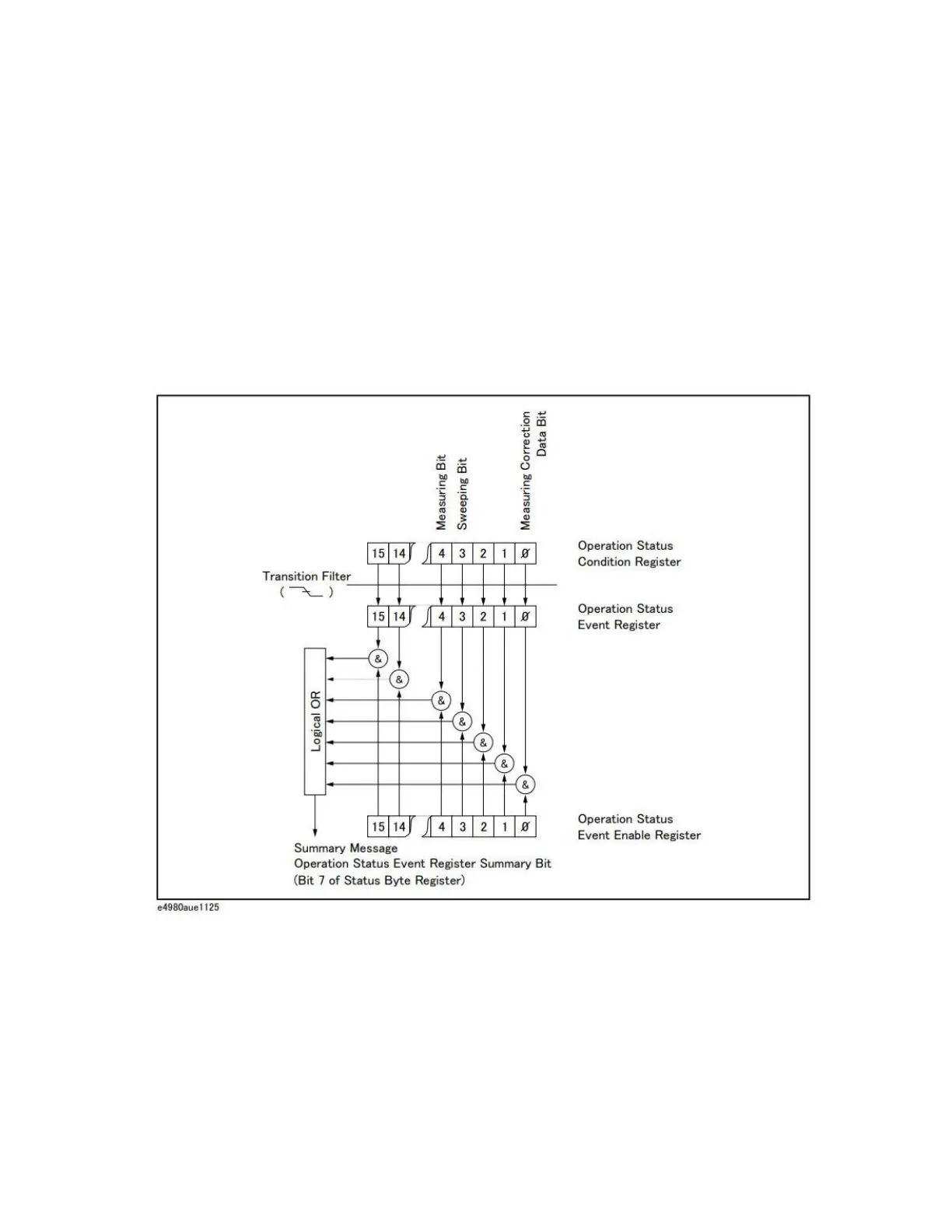

Figure 8-27 Operation Status Register Structure
