204 Keysight E4980A/AL Precision LCR Meter
Measurement Procedure and Examples
Measurement Contacts
7-
Extending Test Leads
When extending the four-terminal pair test leads to the contacts of the DUT,
prepare the contacts as shown in Figure 7-12. If the measurement contact
cannot be made using the four-terminal pair configuration, use one of the
connection methods shown in Figure 7-13 to make the measurement contact.

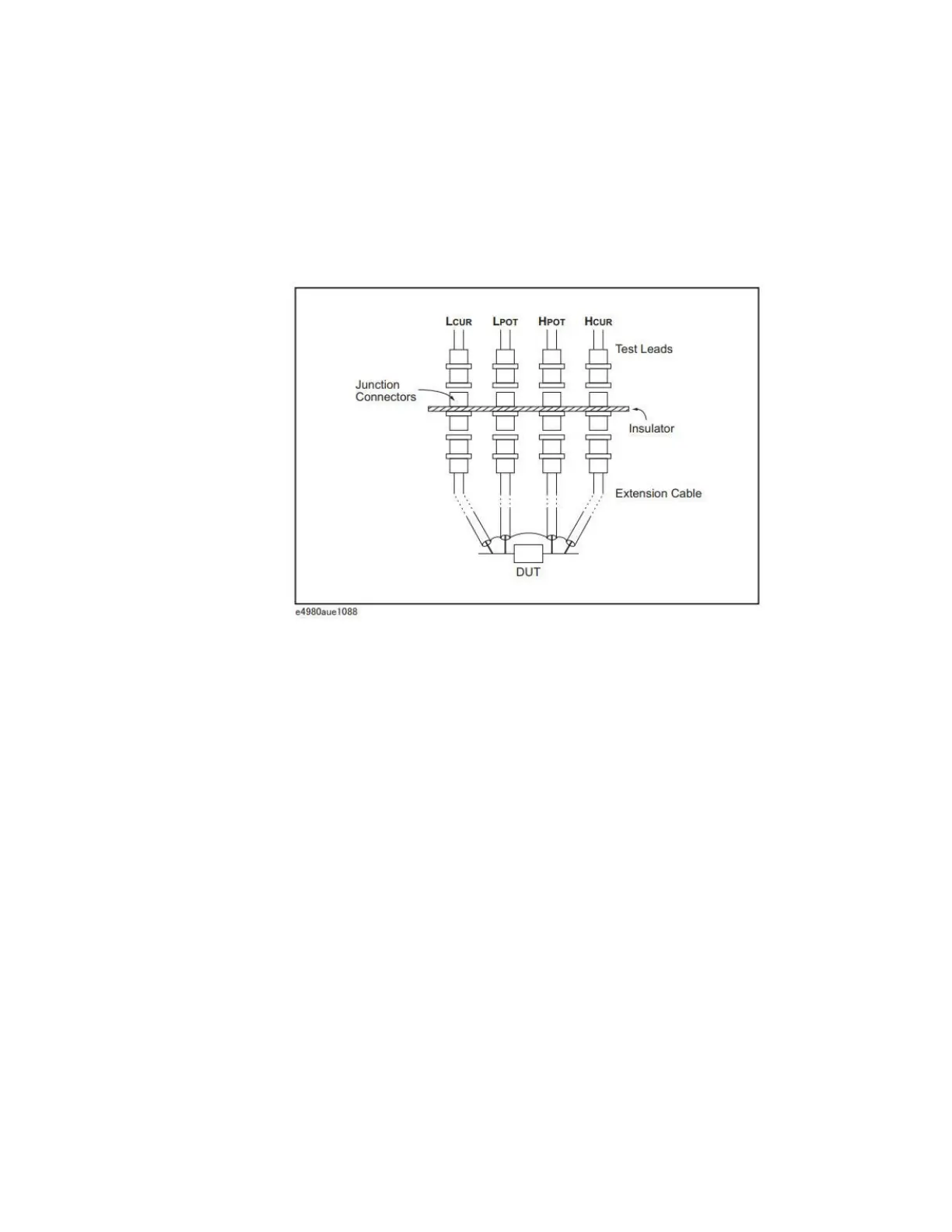

Figure 7-12 Extending the four-terminal pair test leads
