Keysight E4980AL - Relationships between Correction Based on All Frequency Points and Correction Based on Specified Frequency Points

128 Keysight E4980A/AL Precision LCR Meter
Configuring Measurement Conditions (Display and Function Related Settings)
CORRECTION page
4-
Description of Softkeys
To enable/disable or otherwise control the behavior of correction based on
specified frequency points, use the following softkeys:
Relationships between Correction Based on All Frequency Points and Correction
Based on Specified Frequency Points

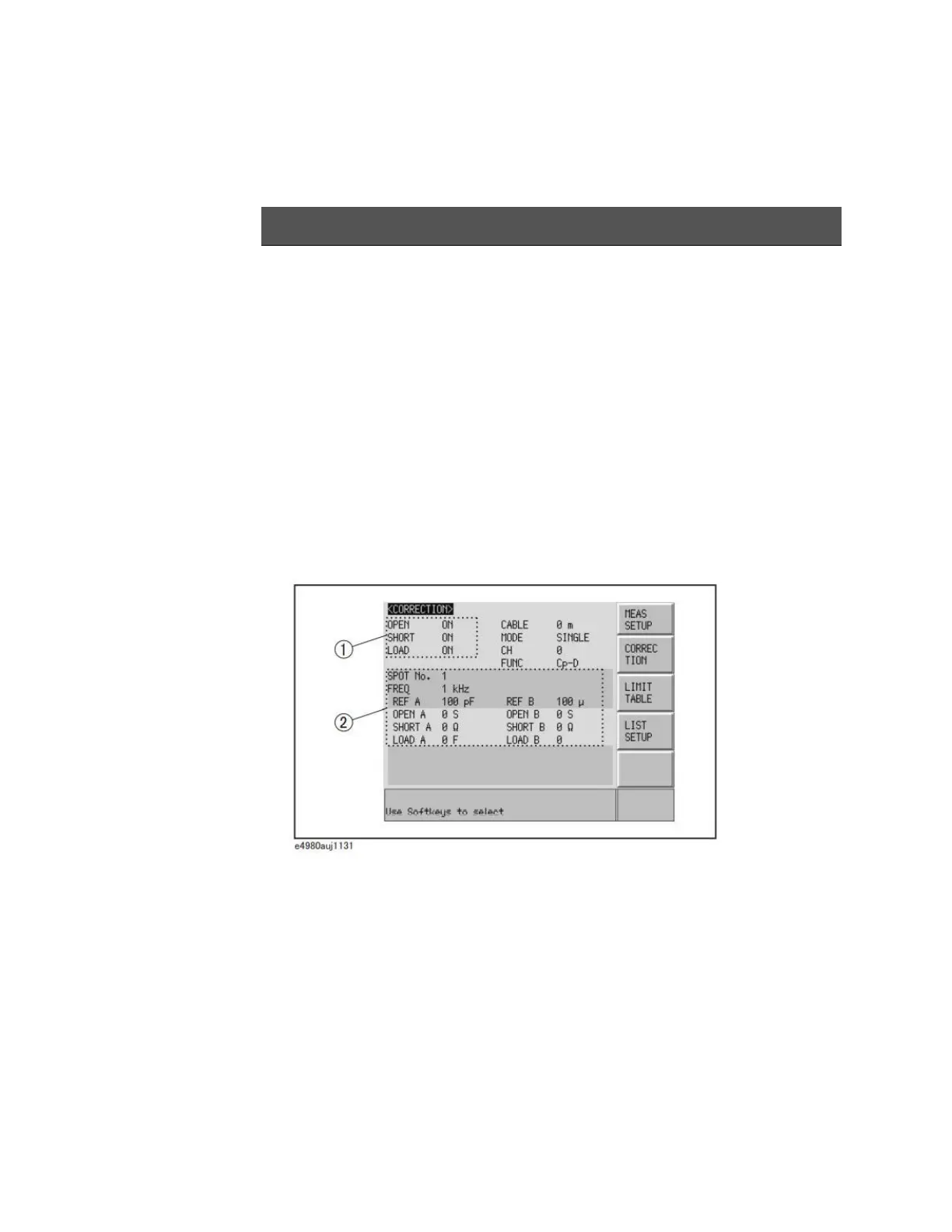

Figure 4-13 shows the CORRECTION page and how the open/short/load
correction features are related to each other.
Figure 4-13 How correction features are related to each other
1. This area is used to:
• Carry out correction calculation using either the open/short correction
data generated by the interpolation method or the open/short/load
correction data at specified frequency points.
Which data is used depends on the test frequencies.
• Obtain the open/short correction data.
2. This area is used to:
• Obtain the open/short/load correction data at each frequency point
specified in the FREQ field.
Softkey Description
ON Enables the current measurement point number.
OFF Disables the current measurement point number.
MEAS OPEN Starts open correction.
MEAS SHORT Starts short correction.
MEAS LOAD Starts load correction.
