270 Keysight E4980A/AL Precision LCR Meter
Overview of Remote Control
Status Byte
8-
Status Byte
The status byte register contains an 8-bit word that the E4980A/AL places on
the GPIB bus when it is serially polled.
The value of each bit indicates the status of an internal function of the
E4980A/AL, and two bits of the status byte are used as summary bits of the
registers. Bits are set to “1” and reset to “0.”

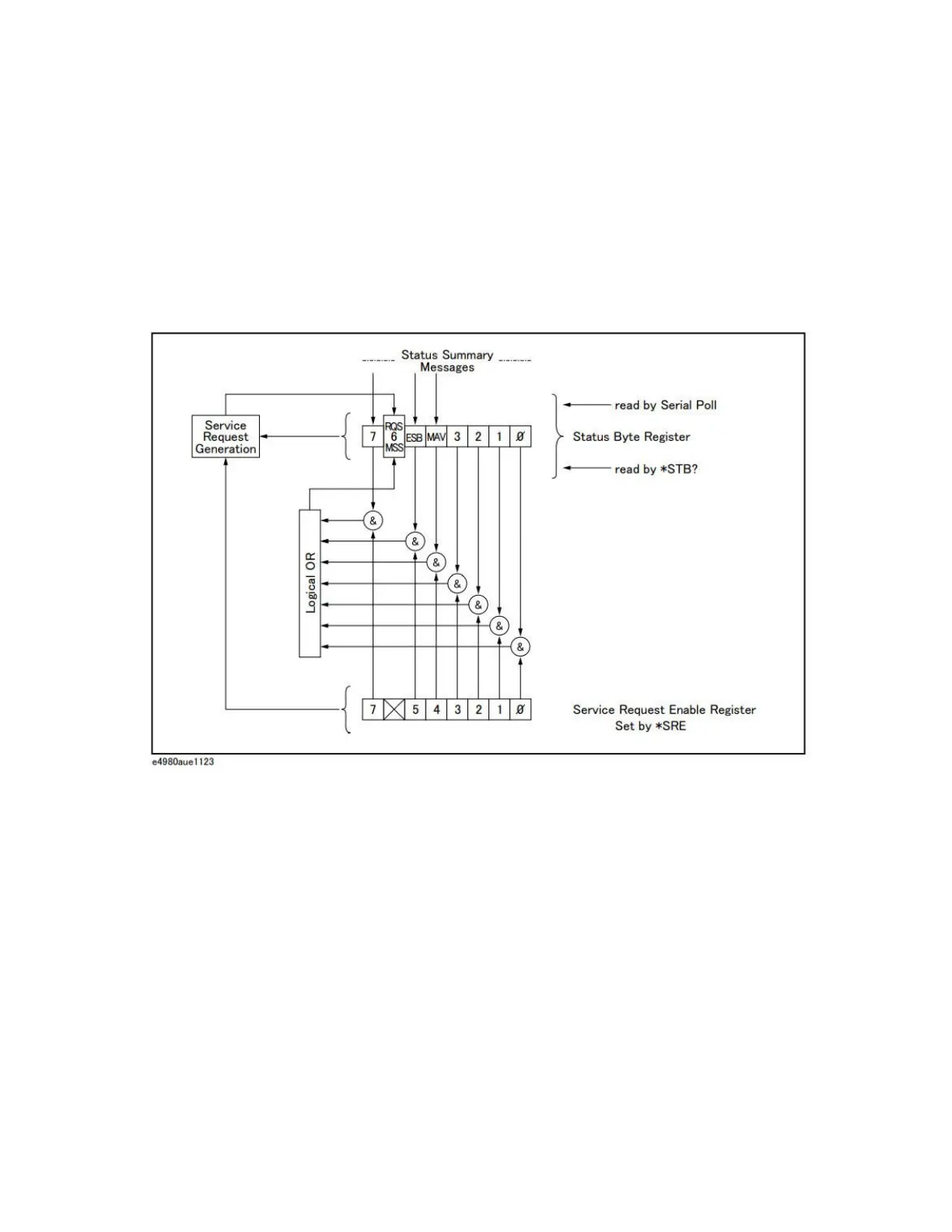

Figure 8-26 Status Byte Register
