334

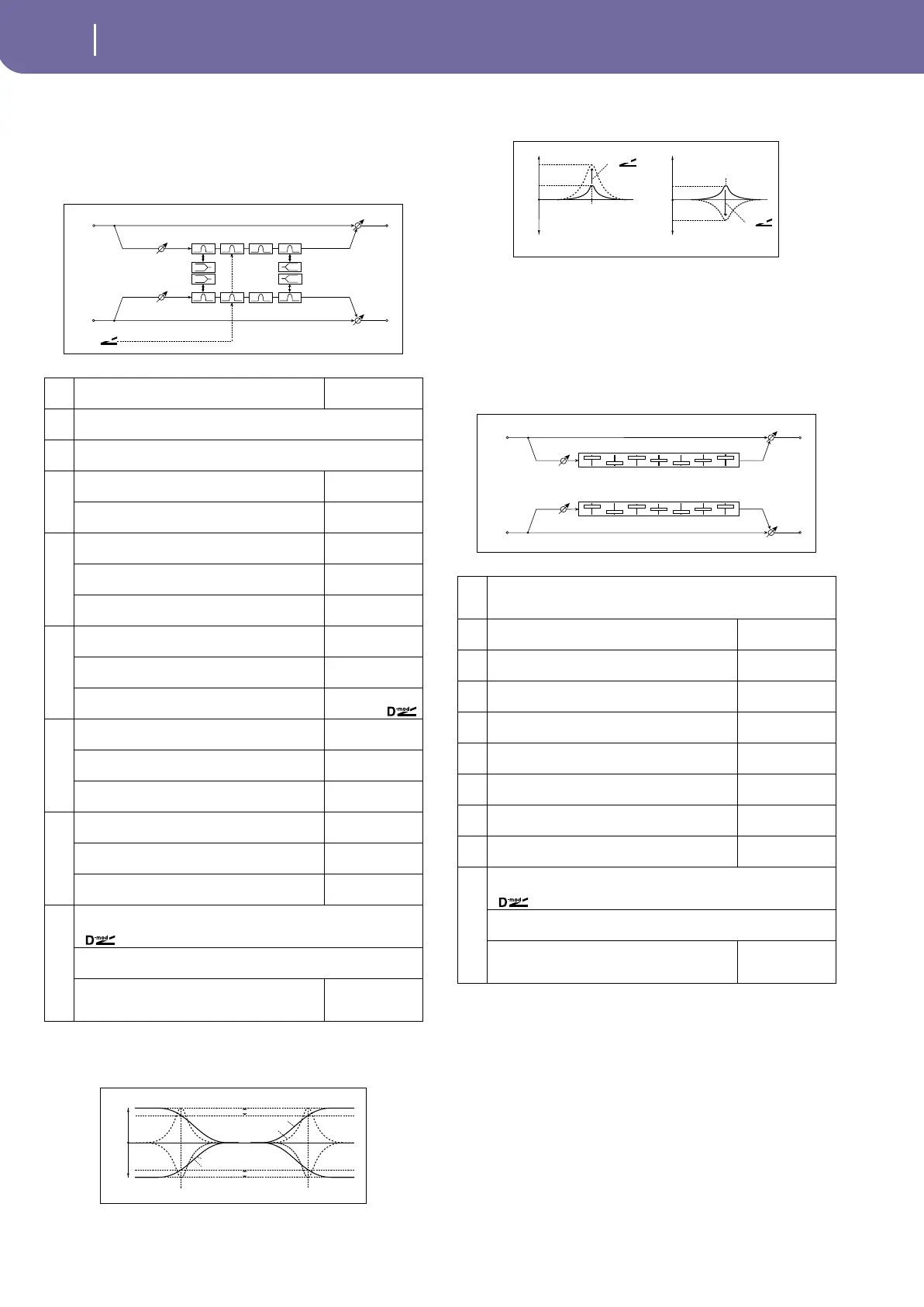

007: Parametric 4EQ
(Parametric 4-Band EQ)
This is a stereo 4-band parametric equalizer. You can select peak-
ing type or shelving type for Band 1 and 4. The gain of Band 2
can be controlled by dynamic modulation.
b: Band1 Type, c: Band4 Type
Selects a filter type for Band 1 and 4.
d: Band2 Dynamic Gain Src, d: Amt [dB], f: Gain [dB]
You can control the gain of Band 2 using the modulation source.
008: Graphic 7EQ
(Graphic 7 Band EQ)
This is a stereo 7-band graphic equalizer. The bar graph of the
gain setting for each band gives you a clear, visual idea of fre-
quency responses. You can select a center frequency setting for
each band from twelve types, according to the sound.
a: Type
This parameter selects a combination of center frequencies for
each band. Each center frequency is shown on the right edge of
the LCD.
You can configure a 21-Band Graphic EQ ranging from 80Hz to
18kHz if you route three Graphic 7Band EQ effects in series, with
a setting of 7:Low, 9:Mid, and 11:High for each EQ.
a
Tr im
Sets the input level
0...100
b
Band1 Type Peaking, Shelving-Low
Selects the type of Band 1
☞
c
Band4 Type Peaking, Shelving-High
Selects the type of Band 4
☞
d
Band2 Dynamic Gain Src
Selects the modulation source of the Band 2 gain
Off...Tempo
☞
Amt [dB]
Sets the modulation amount of Band 2 gain
–18...+18dB
☞
e
Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 1
–18.0...+18.0dB
f
Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...10.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 2
–18.0...+18.0dB
☞,
g
Band3 Cutoff [Hz]
Sets the center frequency of Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 3
–18.0...+18.0dB
h
Band4 Cutoff [Hz]
Sets the center frequency of Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 4
–18.0...+18.0dB
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1
Band2
Band3
Band4
PEQ
PEQ PEQ PEQ
LEQ
LEQ
HEQ
HEQ
PEQ
PEQ PEQ PEQ
Trim
Trim
D
-mod
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Parametric 4EQ - Band1, Band4 Type
a
Type1:Wide 1, 2:Wide 2, 3:Wide 3, 4:Half Wide 1, 5:Half Wide 2, 6:Half Wide
3, 7:Low, 8:Wide Low, 9:Mid, 10:Wide Mid, 11:High, 12:Wide High
Selects a combination of center frequencies for each band
☞
b
Tr im
Sets the input level
0...100
c
Band1 [dB]
Sets the gain of Band 1
–18.0...+18.0dB
d
Band2 [dB]
Sets the gain of Band 2
–18.0...+18.0dB
e
Band3 [dB]
Sets the gain of Band 3
–18.0...+18.0dB
f
Band4 [dB]
Sets the gain of Band 4
–18.0...+18.0dB
g
Band5 [dB]
Sets the gain of Band 5
–18.0...+18.0dB
h
Band6 [dB]
Sets the gain of Band 6
–18.0...+18.0dB
i
Band7 [dB]
Sets the gain of Band 7
–18.0...+18.0dB
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Band2 Cutoff
Band2 Cutoff
0dB
+6dB
+15dB
Band2 Gain[dB]= +6.0
Band2 Dynamic Gain Amt[dB]= +9.0
D
-mod
0dB
+6dB
–9dB
Band2 Gain[dB]= +6.0
Band2 Dynamic Gain Amt[dB]= –15.0
D
-mod
Parametric 4EQ - Band2 Dynamic Gain Control
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
