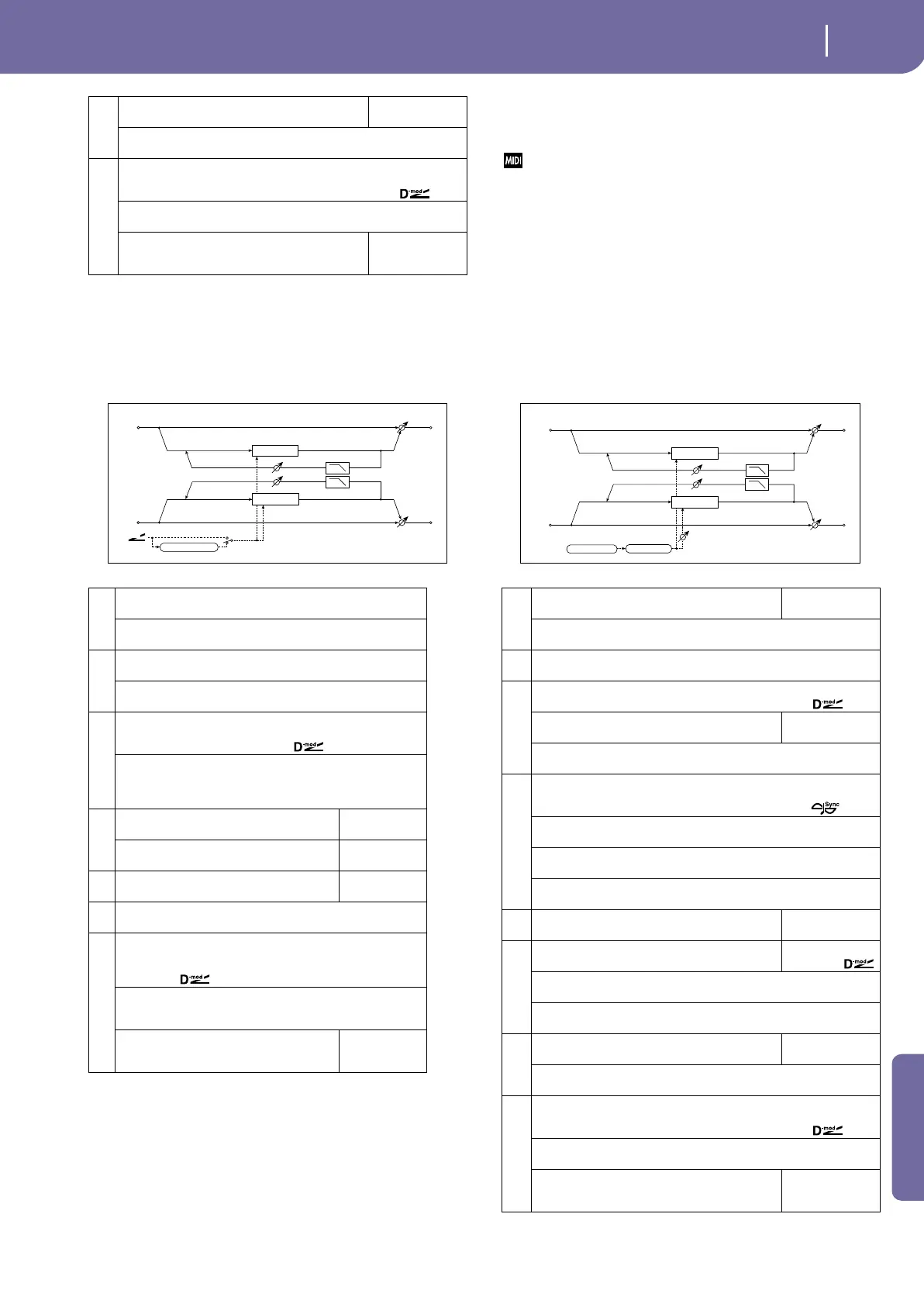

022: Envelope Flanger
This Flanger uses an envelope generator for modulation. You
will obtain the same pattern of flanging each time you play. You
can also control the Flanger directly using the modulation
source.
c: Sweep Mode, c: Src
This parameter switches the flanger control mode. With “Sweep
Mode” = EG, the flanger will sweep using the envelope genera-
tor. This envelope generator is included in the envelope flanger,
and not related to the Pitch EG, Filter EG, or Amp EG.
The “Src” parameter selects the source that starts the envelope
generator. If you select, for example, Gate, the envelope genera-
tor will start when the note-on message is received.
When “Sweep Mode” = D-mod, the modulation source can con-
trol the flanger directly. Select the modulation source using the
“Src” parameter.
The effect is off when a value for the modulation source speci-
fied for the “Src” parameter is smaller than 64, and the effect is
on when the value is 64 or higher. The Envelope Generator is
triggered when the value changes from 63 or smaller to 64 or
higher.
d: EG Attack, d: EG Decay
Attack and Decay speed are the only adjustable parameters on
this EG.
023: Phaser
This effect creates a swell by shifting the phase. It is very effective
on electric piano sounds. You can add spread to the sound by
offsetting the phase of the left and right LFOs from each other.
i
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
High Damp [%] 0...100%
Sets the feedback damping amount in the high range
☞ Fx:020
j
Wet/Dry –Wet...–1:99, Dry, 1:99...Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
☞ Fx:010, 020,
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
a
L Dly Bottom [msec] (L Delay Bottom)0.0...50.0msec
Sets the lower limit of the delay time on the left channel
☞ Fx:009
L Dly Top [msec] (L Delay Top)0.0...50.0msec
Sets the upper limit of the delay time on the left channel
☞ Fx:009
b
R Dly Bottom [msec] (R Delay Bottom)0.0...50.0msec
Sets the lower limit of the delay time on the right channel
☞ Fx:009
R Dly Top [msec] (R Delay Top)0.0...50.0msec
Sets the upper limit of the delay time on the right channel
☞ Fx:009
c
Sweep ModeEG, D-mod
Determines whether the flanger is controlled by the envelope gen-
erator or by the modulation source
☞,
SrcOff...Tempo
Selects the modulation source that triggers the EG (when EG is
selected for Sweep Mode), or modulation source that causes the
flanger to sweep (when D-mod is selected for Sweep Mode)
☞
d
EG Attack
Sets the EG attack speed
1...100
☞
EG Decay
Sets the EG decay speed
1...100
☞
e
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
f
High Damp [%]0...100%
Sets the feedback damping amount in the high range
☞ Fx:020
g
Wet/Dry–Wet...–1:99, Dry, 1:99...Wet
Table , “Sets the balance between the effect and dry sounds,” on
page 330
☞010, 020,
SrcOff...Tempo
Table , “Selects the modulation source of the effect balance,” on
page 330
Amt
Table , “Sets the modulation amount of the
effect balance,” on page 330
–100...+100
EG Attack/Decay
EG
D-mod
Sweep Mode
D
-mod
Flanger
Flanger
Left
Right
Feedback
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
a
LFO Waveform
Selects LFO Waveform
Triangle, Sine
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞ Fx:020
b
LFO Phase [degree] –180...+180
Sets the LFO phase difference between the left and right
☞ Fx:010
c
LFO Frequency [Hz] 0.02...20.00Hz
Sets the LFO speed
☞ Fx:009,
Src
Selects the modulation source of LFO speed
Off...Tempo
Amt –20.00...+20.00Hz
Sets the modulation amount of LFO speed
d
BPM/MIDI Sync Off, On
Switches between using the frequency of the LFO speed and using the
tempo and notes
☞ Fx:009,
BPM MIDI, 40...240
Selects MIDI Clock and assigns tempo
☞ Fx:009
Base Note
Selects the type of notes that specify the LFO speed ☞ Fx:009
Times x1...x16
Sets the number of notes that specify the LFO speed
☞ Fx:009
e
Manual
Sets the frequency to which the effect is applied
0...100
f
Depth
Sets the depth of LFO modulation
0...100
Src Off...Tempo
Selects the modulation source for the LFO modulation depth
Amt –100...+100
Sets the modulation amount of the LFO modulation depth
g
Resonance
Sets the resonance amount
–100...+100
☞
High Damp [%] 0...100%
Sets the resonance damping amount in the high range
☞
h
Wet/Dry –Wet...–1:99, Dry, 1:99...Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
☞ Fx:010,
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Resonance
LFO Shape
LFO Phase
LFO: Tri / Sine
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
Phaser
Phaser
