LevelOne IGP-1271 - 3-9.2 Port Status

389

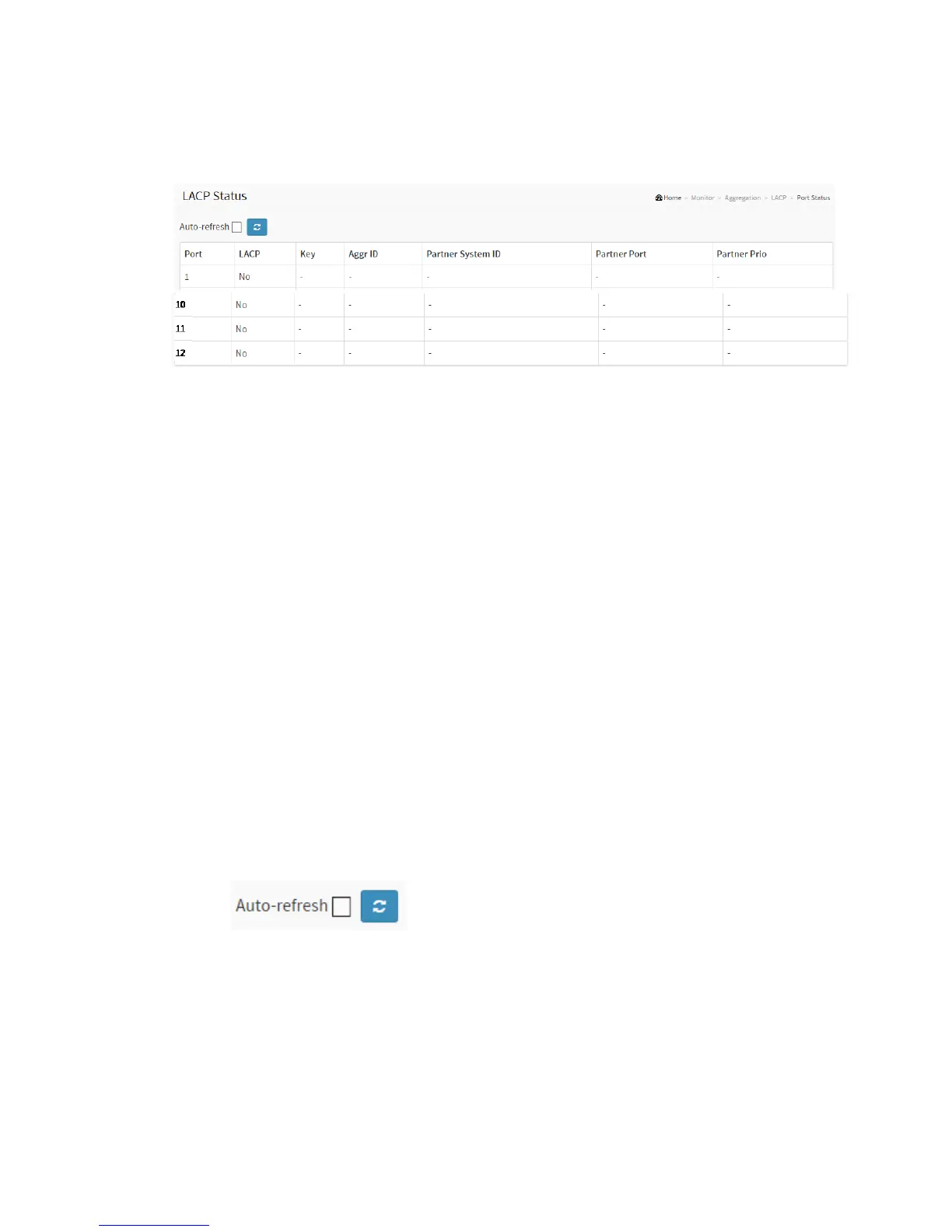

Figure 3-7.2.1.1: The System Status
Parameter description:
 Port
The switch port number.
 LACP
'Yes' means that LACP is enabled and the port link is up. 'No' means that LACP is not
enabled or that the port link is down. 'Backup' means that the port could not join
the aggregation group but will join if other port leaves. Meanwhile it's LACP status
is disabled.
 Key
The key assigned to this port. Only ports with the same key can aggregate together.
 Aggr ID
The Aggregation ID assigned to this aggregation group.
 Partner System ID
The partner's System ID (MAC address).
 Partner Port
The partner's port number connected to this port.
 Partner Prio
The partner's port priority.
 Buttons
Auto-refresh: Check this box to refresh the page automatically. Automatic refresh
occurs every 3 seconds.
Refresh: Click to refresh the page.
3-7.2.1.3 Port Statistics
