3-11.2.3 IPv6 SFM Information
Entries in the MLD SFM Information Table are shown on this page. The MLD SFM
(Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific
Multicast) information. This table is sorted first by VLAN ID, then by group, and then
by Port. Different source addresses belong to the same group are treated as single
entry.
Web Interface
To display the MLDv2 IPv6 SSM Information in the web interface:
1. Click Monitor, MLD Snooping, IPv6 SFM Information.
2. If you want to auto-refresh the information then you need to evoke the
“Auto-refresh”.
3. Click “Refresh” to refresh an entry of the MLDv2 IPv6 SSM Information.
4. Click “<< or >> “to move to previous or next entry.

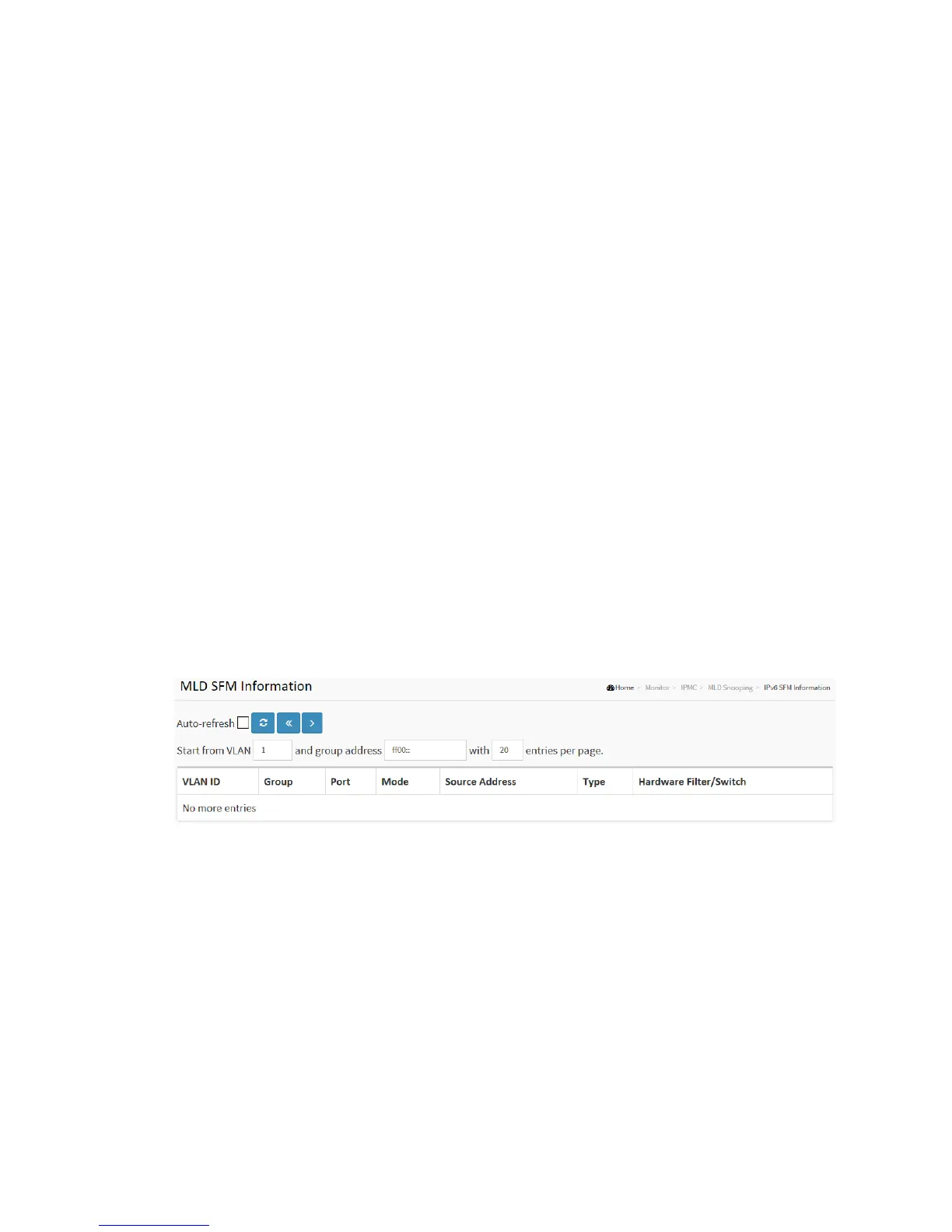

Figure 3-11.2.3: The IPv6 SFM Information
Parameter description:
Navigating the MLD SFM Information Table
Each page shows up to 99 entries from the MLD SFM Information table, default being
20, selected through the "entries per page" input field. When first visited, the web
page will show the first 20 entries from the beginning of the MLD SFM Information
Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting
