421
point in the MLD SFM Information Table. Clicking the button will update the displayed
table starting from that or the closest next MLD SFM Information Table match. In
addition, the two input fields will - upon a button click - assume the value of the first
displayed entry, allowing for continuous refresh with the same start address.
The will use the last entry of the currently displayed table as a basis for the next lookup.
When the end is reached the text "No more entries" is shown in the displayed table.
Use the button to start over.
MLD SFM Information Table Columns
VLAN ID :
VLAN ID of the group.
Group :
Group address of the group displayed.
Port :
Switch port number.
Mode :
Indicates the filtering mode maintained per (VLAN ID, port number, Group Address)
basis. It can be either Include or Exclude.
Source Address :
IP Address of the source. Currently, system limits the total number of IP source
addresses for filtering to be 128.
Type :
Indicates the Type. It can be either Allow or Deny.
Hardware Filter/Switch
Indicates whether data plane destined to the specific group address from the
source IPv6 address could be handled by chip or not.

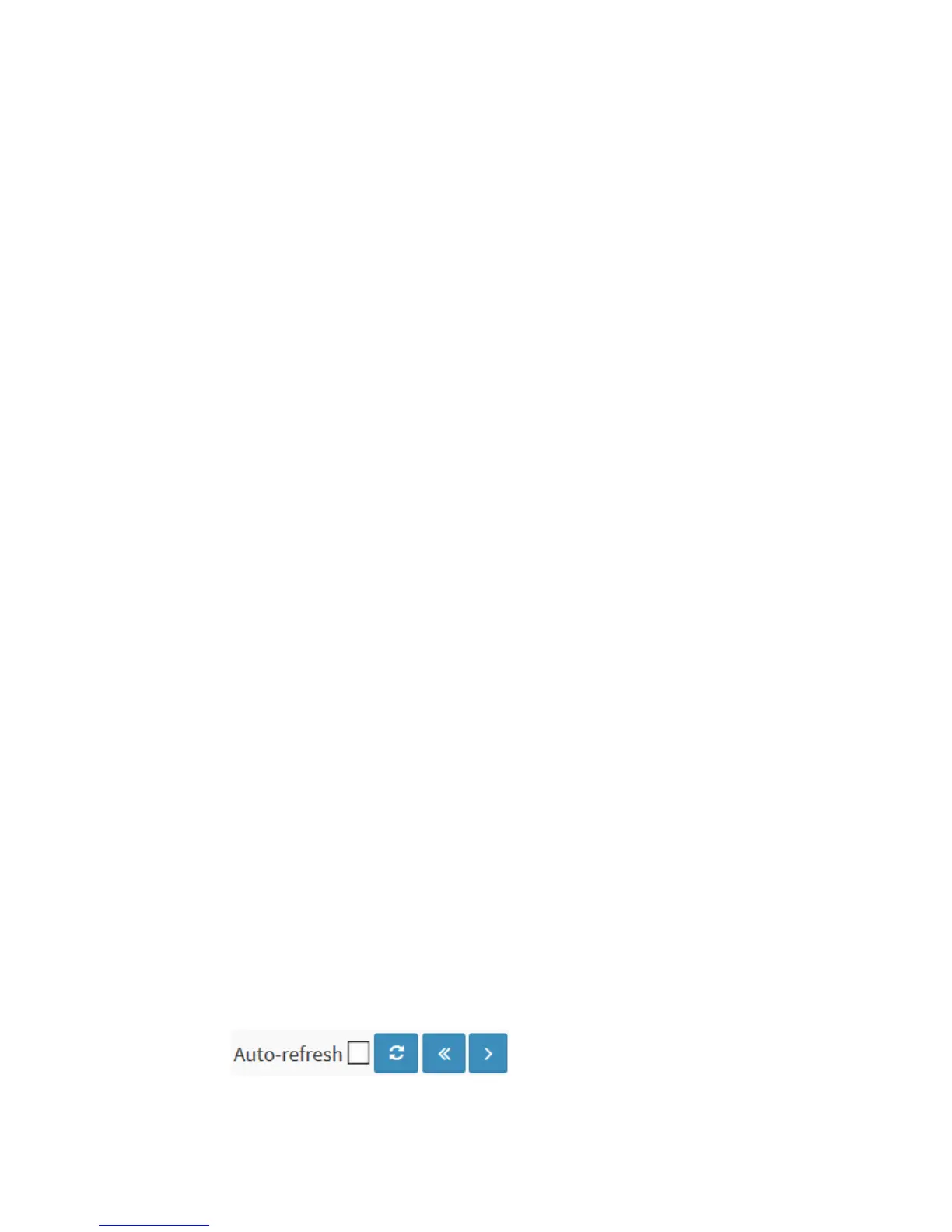

Buttons
Auto-refresh: Check this box to refresh the page automatically. Automatic refresh
