LIP-8050V User Guide
4
1.5 LIP-8050V Phone Installation
The phone handset is attached as shown (A). The LIP-8050V
has two RJ-45 and 10/100 Base-T LAN connection ports. One
port is for connecting to the LAN (D), and the other can be
connected to a desktop data device or PC (B).

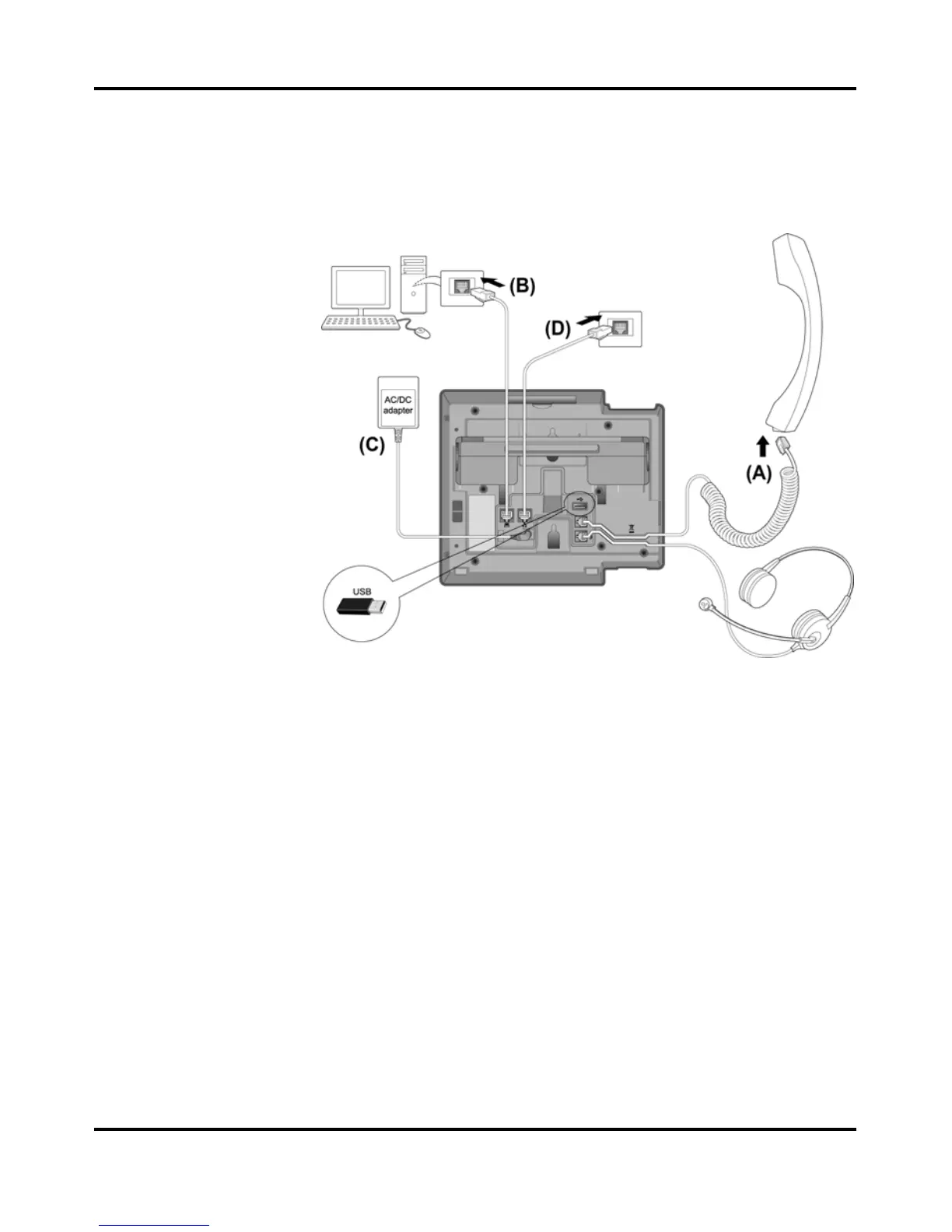

iPECS LIP-8050V Connections
1.5.1 Power
All LIP-800
0 series phones can be powered by the AC/DC
Adapter-K- (48 VDC @ 0.3A; shown as “C” in the previous
graphic) or over the LAN cable using the POE8 or other 802.3af
compliant switch.
If using the AC/DC Adapter, after connecting the Phone to the
LAN, the Adapter’s DC voltage plug is inserted into the power-
input jack on the underside of the Phone. One end of the AC
power cord is inserted into the mating receptacle of the AC
Adapter, and the other end is inserted into the AC power outlet.
NOTE—LIP-8000 series consoles are powered through the flat
cable used to connect the console to the IP phone. Up to
2(without LIP-8048DSS) or 4(with LIP-8048DSS) consoles
can be chain-link connected to the phone.
