LSIS SV-IS7 User Manual

210

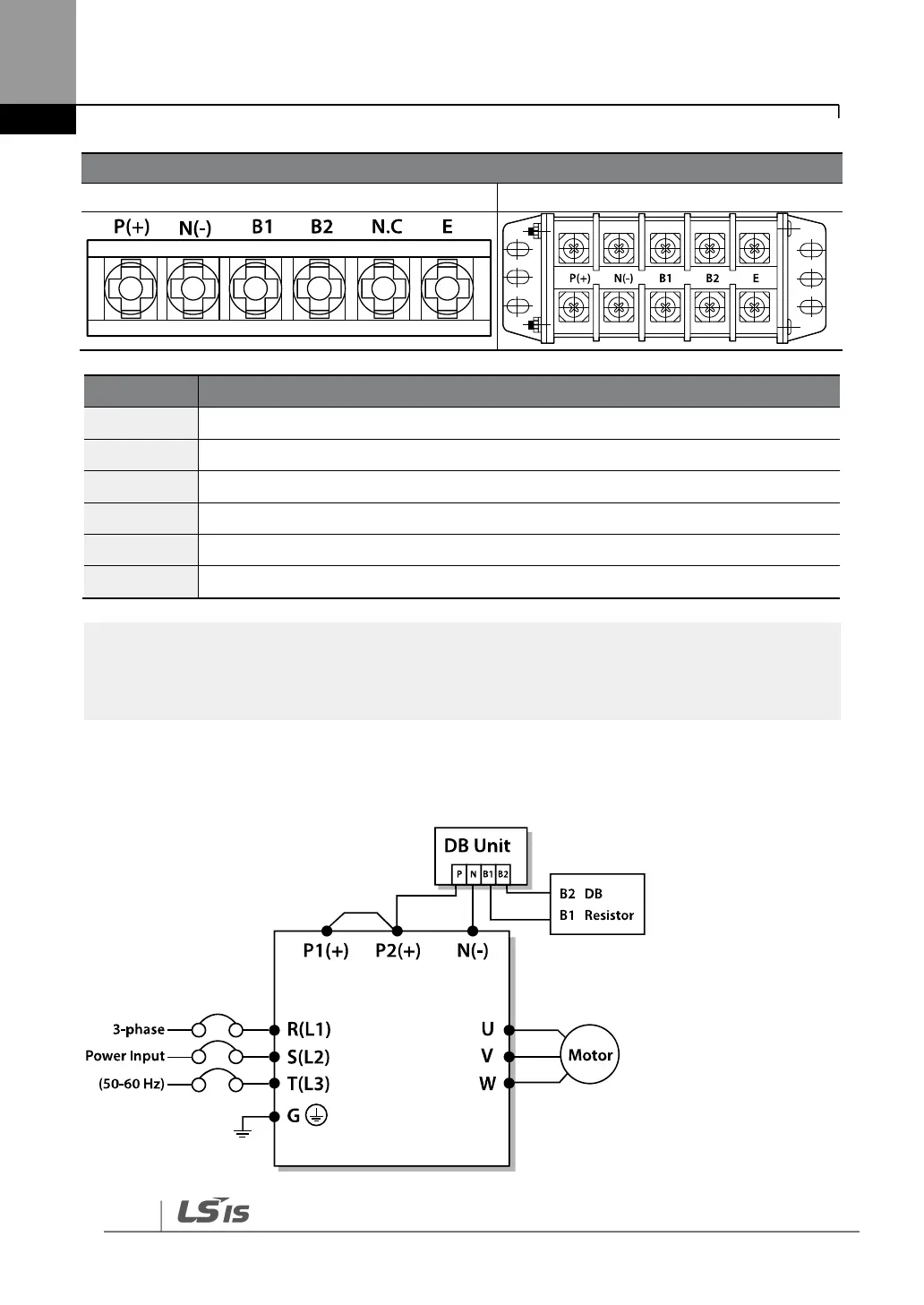

Peripheral Devices
Group 6
A frame (37 kW, 74 kW-4)
B/C frame (75 kW-2, 90-220 kW)
Terminal
Description
P (+)
Connect to the P terminal of an inverter (DC bus).
N ( - )
Connect to the N terminal of an inverter (DC bus).
B1
Connect to the B1 terminal of an external braking resistor.
B2
Connect to the B2 terminal of an external braking resistor.
N.C
Not used
E
Ground terminal
Note
Refer to the instruction manual that is supplied with the DB unit to choose appropriate DB resistors
for installation.
Basic Wiring Connection for the DB Unit and DB Resistor
