LSIS SV-IS7 User Manual

Peripheral Devices
Peripheral
Devices
209

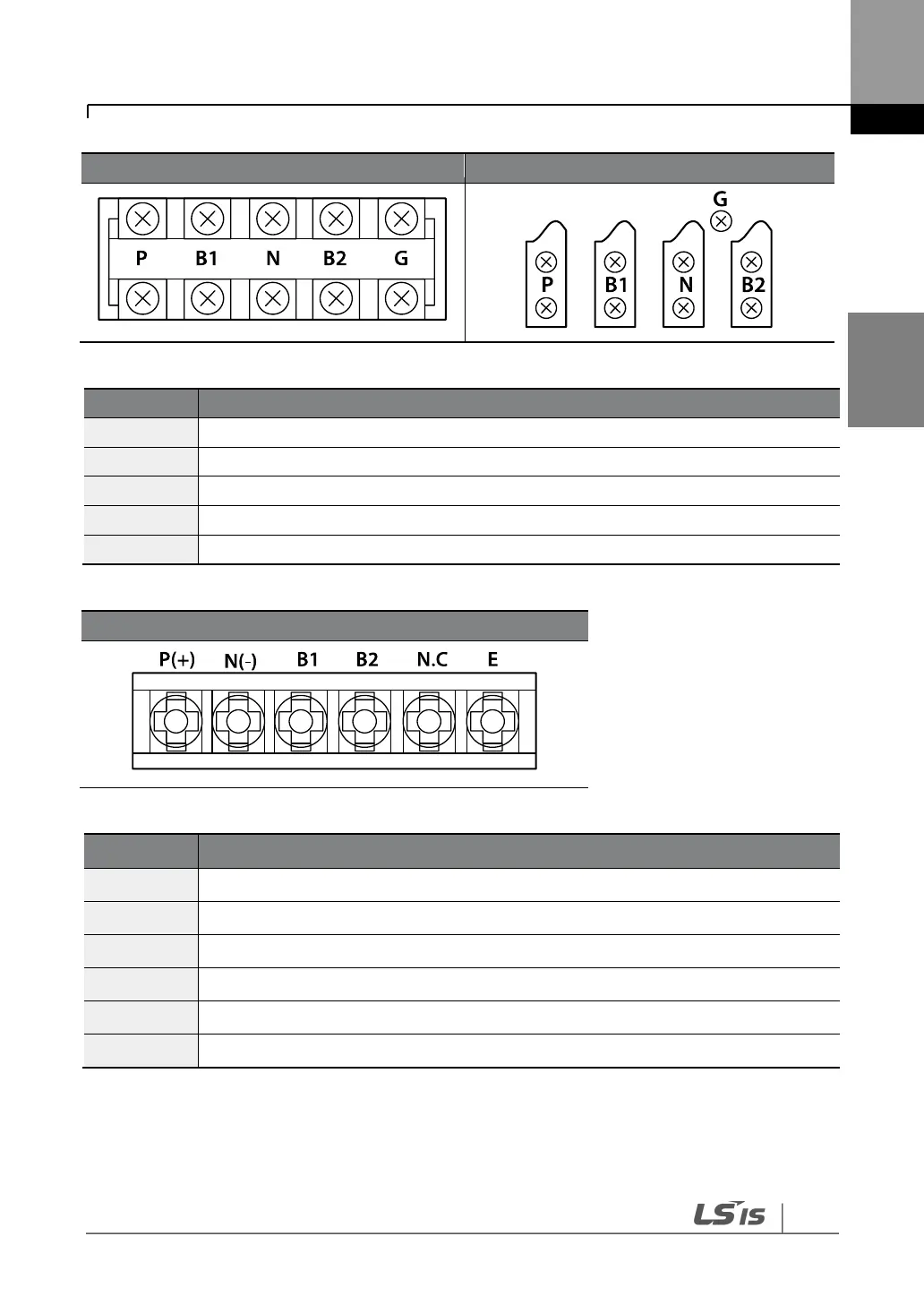

Group 3 (75 kW DB unit)
Group 4 (220 kW DB unit)
Terminal
Description
G
Ground Terminal
B2
Connect to the B2 terminal of a braking resistor.
B1
Connect to the B1 terminal of a braking resistor.
N
Connect to the N terminal of an inverter.
P
Connect to the P terminal of an inverter.
Group 5
Terminal
Description
P (+)
Connect to the P terminal of an inverter.
N ( - )
Connect to the N terminal of an inverter.
B1
Connect to the B1 terminal of a braking resistor.
B2
Connect to the B2 terminal of a braking resistor.
N.C
Not used
E
Ground terminal
