LSIS SV-IS7 - Page 35

Installing the Inverter
24

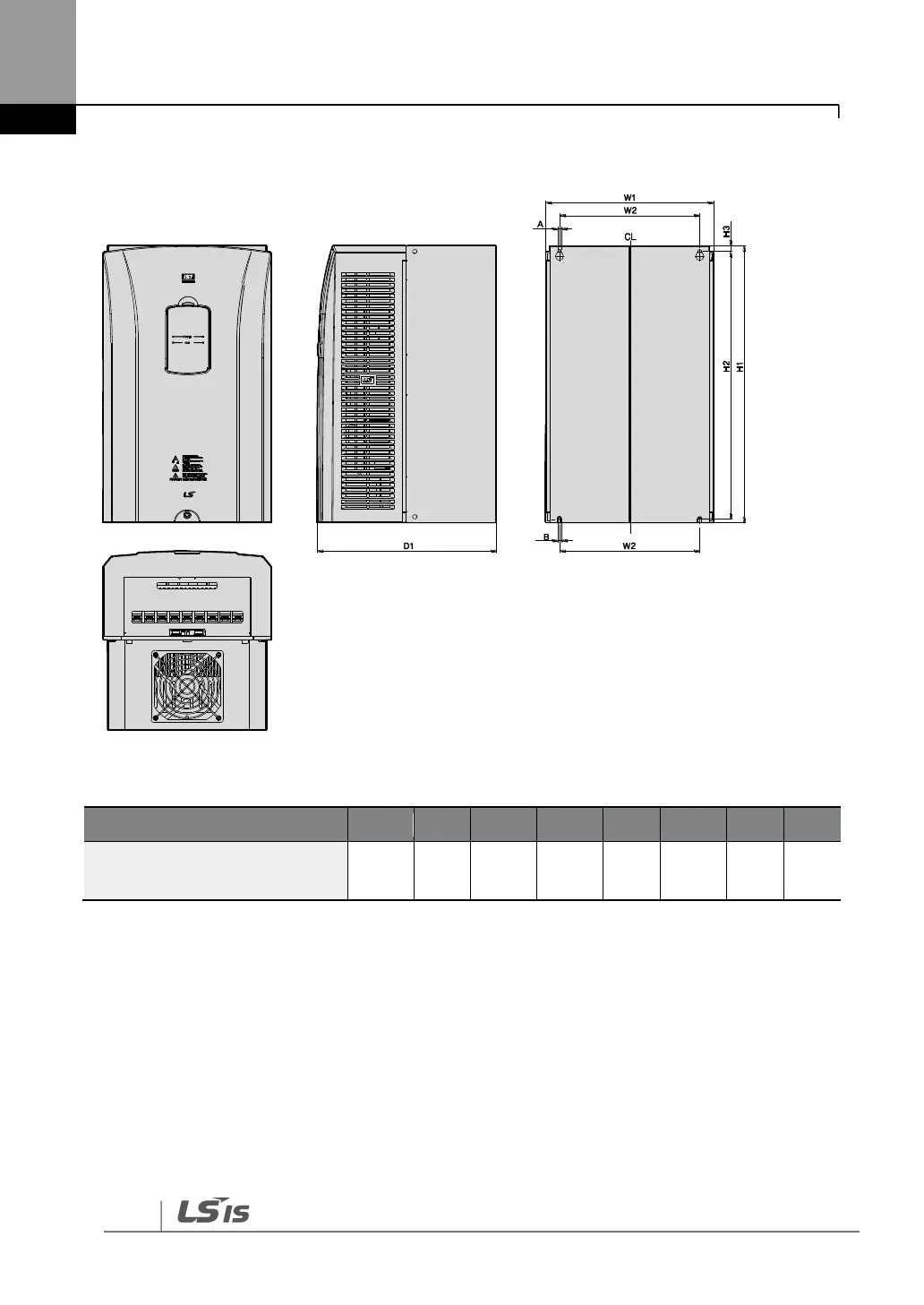

SV0185-0220iS7 (200 V/400 V)
Units: mm (inch)
Inverter Capacity
W1
W2
H1
H2
H3
D1
A
B
SV0185–0220iS7- 2/4
280
(11.02)
243.5
(9.58)
461.6
(18.17)
445
(17.51)
10.1
(0.39)
298
(11.73)
6.5
(0.25)
6.5
(0.25)
